Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV86602BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
2,397 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86603BDT33RKGIC REG LINEAR 3.3V 150MA DPAK-5 |
4,686 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86603BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
3,237 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86604BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
1,130 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
_4040251^B.jpg "TPS7A3301KC")
|
TPS7A3301KCIC REG LIN NEG ADJ 1A TO220-7 |
2,939 |
|
Datasheet | - | TO-220-7 | Tube | Obsolete | Negative | Adjustable | 1 | -36V | -1.18V | -33V | 0.8V @ 1A | 1A | 100 µA | 950 µA | 72dB (10kHz) | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-7 |
|
PT7M8216B33XZEXIC REG LINEAR 3.3V 300MA 4UDFN |
2,303 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
PT7M8216B28XZEXIC REG LINEAR 2.8V 300MA 4UDFN |
1,700 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
PT7M8216B30XZEXIC REG LINEAR 3V 300MA 4UDFN |
4,593 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
NCP4586DSN12T1GIC REG LINEAR 1.2V 150MA SOT23-5 |
4,865 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.2V | - | 1V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4586DSN33T1GIC REG LINEAR 3.3V 150MA SOT23-5 |
1,547 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.51V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCP4586DSN50T1GIC REG LINEAR 5V 150MA SOT23-5 |
4,139 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 5V | - | 0.37V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4624DSN50T1GIC REG LINEAR 5V 150MA SOT23-5 |
3,053 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 11V | 5V | - | 0.76V @ 150mA | 150mA | 3.7 µA | - | 15dB (1kHz) | Enable | Over Current, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

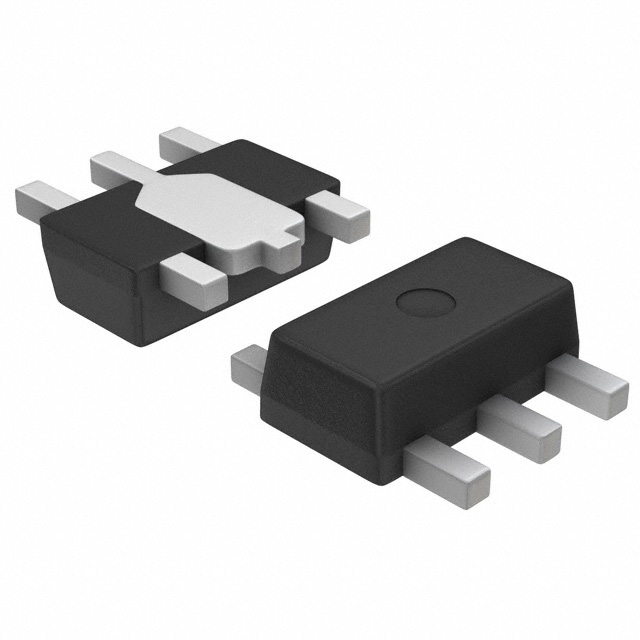

NCP4687DH15T1GIC REG LINEAR 1.5V 500MA SOT89-5 |
1,850 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.5V | - | 0.48V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP4687DH25T1GIC REG LINEAR 2.5V 500MA SOT89-5 |
3,092 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.34V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP4687DH33T1GIC REG LINEAR 3.3V 500MA SOT89-5 |
4,911 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.32V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
NCP4687DMX25TCGIC REG LINEAR 2.5V 500MA 6XDFN |
2,281 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.34V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
NCP4687DMX33TCGIC REG LINEAR 3.3V 500MA 6XDFN |
3,670 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.32V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
NCP4687DSN28T1GIC REG LINEAR 2.8V 500MA SOT23-5 |
2,510 |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP4688DSN12T1GIC REG LINEAR 1.2V 150MA SOT23-5 |
4,540 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.2V | - | 0.8V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4688DSN15T1GIC REG LINEAR 1.5V 150MA SOT23-5 |
2,171 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.5V | - | 0.5V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
