Analog Switches - Special Purpose
Explore Analog Switches - Special Purpose parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSA646AUCXIC SWITCH SPDT 36-WLCSP |
9,286 |
|
Datasheet | - | 36-UFBGA, WLCSP | Tape & Reel (TR) | Active | MIPI | 2:1 | SPDT | 4 | 6Ohm (Typ) | 1.5V ~ 5V | - | 4.7GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-WLCSP (2.43x2.43) |
|
HD3SS3212RKSTQ1MULTIPLEXER |
37,482 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1, 1:2 | SPDT | 2 | 8Ohm | 2.7V ~ 3.6V | ±2.7V ~ 3.6V | 8GHz | USB 3.1 | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 20-VQFN (2.5x4.5) |
|
HD3SS6126RUARIC MUX 2:1 8 OHM 42WQFN |
24,693 |
|
Datasheet | - | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB, Telecommunications | 2:1 | - | 1 | 8Ohm | 3V ~ 3.6V | - | 10GHz | Bi-Directional, SATA, USB 2.0, USB 3.0 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
PI3DBS16222ZLEXPCIE SWITCH W-QFN2545-30 |
7,763 |
|
Datasheet | - | 30-WFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 1:1 | 8PST | 1 | - | 2.97V ~ 3.63V | - | - | USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 30-TQFN (2.5x4.5) |
|
PI3DBS16213XEAEXPCIE SWITCH X1-QFN2040-24 T&R 3. |
17,739 |
|
Datasheet | - | 24-XFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 3:1 | SP3T | 2 | - | 3.3V | - | 12GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 24-X1QFN (2x4) |
|
PI3USB32212ZLEXUSB3 SWITCH W-QFN3060-32 T&R 3.5 |
31,798 |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 1:2 | SPDT | 2 | 13Ohm | 2.97V ~ 3.63V | - | 10.6GHz | USB 2.0, USB 3.0 | - | - | - | Surface Mount | 32-TQFN (3x6) |
|
PI3L2500ZHEXIC LAN SWITCH V-QFN3590-42 |
23,450 |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Telecommunications | 2:1 | SPDT | 8 | - | 3V ~ 3.6V | - | 3GHz | - | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3DBS16412ZHEXPCIE SWITCH V-QFN3590-42 |
56,969 |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PCIe 4.0, USB | 2:1 | SPDT | 4 | - | 3.3V | - | 13GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
HD3SS214IZXHR8.1 GBPS DISPLAYPORT 1.4 1-TO-2 |
1,514 |
|
Datasheet | - | 50-VFBGA | Tape & Reel (TR) | Active | DisplayPort | 2:1 | SPDT | 2 | 12Ohm | 3V ~ 3.6V | - | 8GHz | Differential Compatibility | -40°C ~ 105°C | - | - | Surface Mount | 50-NFBGA (5x5) |
|

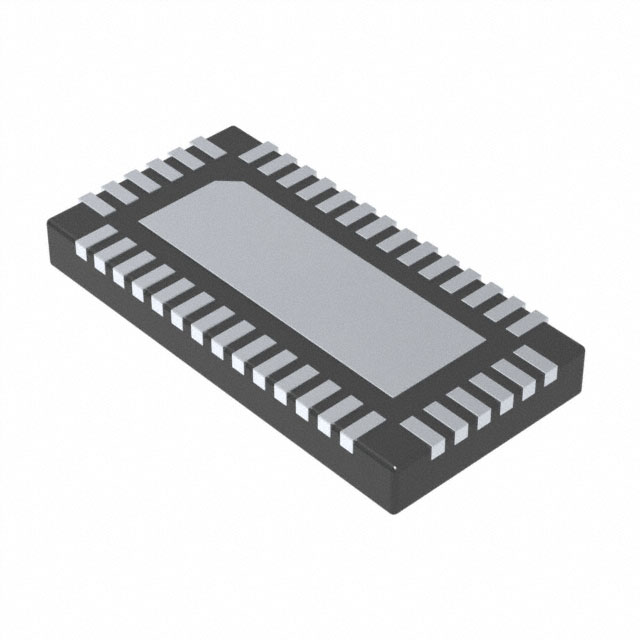

PI3USB31532ZLCEXIC SWITCH USB3 W-QFN3060-40 |
6,848 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 3:2 | - | 5 | - | 3V ~ 3.6V | - | 8.3GHz | Bi-Directional, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 40-TQFN (3x6) |
|
|
PI3DBS16413ZHEXPCIE SWITCH V-QFN3590-42 |
10,704 |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PCIe 4.0, USB | 3:1 | SPDT | 4 | - | 3.3V | - | 12GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI3WVR14412Q2ZLCEXDISPLAY SWITCH W-QFN3060-40 T&R |
2,124 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, Video | 2:1 | SPDT | 4 | - | 3.3V | - | - | HDMI, MIPI, USB 3.2 | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 40-TQFN (3x6) |
|
MAX4885ETJ+TIC SWITCH 2X1 32TQFN |
1,998 |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 1 | 7.5Ohm | 4.5V ~ 5.5V | - | - | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (5x5) |
|
MAX4906ELB+TIC USB SWITCH DUAL 1X2 10UDFN |
501 |
|
Datasheet | - | 10-WFDFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 7Ohm | 3V ~ 3.6V | - | 1GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
OPA875IDGKRIC VIDEO MUX 2:1 8VSSOP |
141 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 1 | - | 5V | ±5V | 425MHz | Buffered, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
MAX4740ETE+IC SWITCH QUAD SPDT 16TQFN |
2,497 |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tube | Active | Audio | 2:1 | SPDT | 4 | 900mOhm | 1.6V ~ 5.5V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
|
OPA875IDGKTIC VIDEO MUX SNGL 2:1 8VSSOP |
1,238 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 1 | - | 5V | ±5V | 425MHz | Buffered, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
MAX7356EUG+IC MULTIPLEXER 8X1 24TSSOP |
266 |
|
Datasheet | - | 24-TSSOP (0.173", 4.40mm Width) | Tube | Active | I2C | 8:1 | - | 1 | 24Ohm | 2.3V ~ 5.5V | - | - | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
MAX14979EETX+IC SWITCH HIGH BW LVDS 36TQFN |
1,256 |
|
Datasheet | - | 36-WFQFN Exposed Pad | Tube | Active | LVDS | - | DPDT | 4 | 5.5Ohm | 3V ~ 3.6V | - | 650MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-TQFN (6x6) |
|
MAX4908ETD+TIC MULTIPLEXER DUAL 3X1 14TDFN |
1,901 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Audio | 3:1 | SP3T | 2 | 750mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TDFN (3x3) |
Frequently Asked Questions
What are Analog Switches - Special Purpose components used for?
Analog Switches - Special Purpose components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches - Special Purpose part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches - Special Purpose parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
