Analog Switches - Special Purpose
Explore Analog Switches - Special Purpose parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS3DS10224RUKRIC MUX/DMUX DIFF 2:4 20WQFN |
9,663 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Video | 4:2 | - | 1 | 19Ohm | 3V ~ 3.6V | - | 1.2GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-WQFN (3x3) |
|
TS3USB31ERSERIC USB SWITCH 480MBPS 8QFN |
29,784 |
|
Datasheet | - | 8-UFQFN | Tape & Reel (TR) | Active | USB | - | DPST | 1 | 10Ohm | 2.25V ~ 4.3V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.5x1.5) |
|
TPS66120YBGRSOURCE AND SINK POWER MULTIPEXER |
24,044 |
|
Datasheet | - | 28-XFBGA, DSBGA | Tape & Reel (TR) | Active | - | - | - | 1 | - | 2.85V ~ 3.6V | - | - | - | -10°C ~ 85°C (TA) | - | - | Surface Mount | 28-DSBGA (1.61x2.81) |
|
TS3USB221DRCRIC USB SWITCH DUAL 1X2 10SON |
21,065 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSON (3x3) |
|
TC7USB42MU,LF(S2EIC USB SWITCH SPDT DUAL 10UQFN |
18,961 |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 14Ohm | 2.3V ~ 4.3V | - | 1.5GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
|
TS3USB221EDRCRIC USB SWITCH DUAL 1X2 10-SON |
3,793 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 6Ohm | 2.3V ~ 3.6V | - | 1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSON (3x3) |
|
NX3DV642GU,115IC SWITCH TPDT DIFF XQFN24 |
13,000 |
|
Datasheet | - | 24-XFQFN | Tape & Reel (TR) | Last Time Buy | MIPI | - | 3PDT | 1 | 14Ohm | 2.65V ~ 4.3V | - | 950MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-XQFN (2.5x3.4) |
|
NX3DV2567HR,115IC ANLG SWITCH 4PDT 16HXQFN |
6,125 |
|
Datasheet | - | 16-XFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | - | 4PDT | 1 | 700mOhm | 1.4V ~ 4.3V | - | 160MHz | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-HXQFN (3x3) |
|
TS3USBA225RUTRIC USB SWITCH DP3T 12UQFN |
14,364 |
|
Datasheet | - | 12-UFQFN | Tape & Reel (TR) | Active | USB | 3:1 | SP3T | 2 | 3.5Ohm (Audio), 7.5Ohm (USB) | 2.7V ~ 5V | - | 1.9GHz | LVDS, MIPI, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UQFN (1.7x2) |
|
TMUX646ZECRIC MULTIPLEXER |
9,651 |
|
Datasheet | - | 36-UFBGA | Tape & Reel (TR) | Active | Networking, Telecommunications | 2:1 | SPDT | 10 | 9Ohm, 10Ohm | 1.5V ~ 5.5V | - | 6GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-NFBGA (2.45x2.45) |
|
PI3USB102GZLEXIC USB 2.0 SWITCH 2:1 10TQFN |
10,181 |
|
Datasheet | - | 10-WFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 5Ohm | 3V ~ 5.5V | - | 1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TQFN (1.3x1.6) |
|
PI3USB221EZUAEXIC USB2 SWITCH 3V UQFN2015-10 |
10,748 |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 1 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C | - | - | Surface Mount | 10-UQFN (1.5x2) |
|

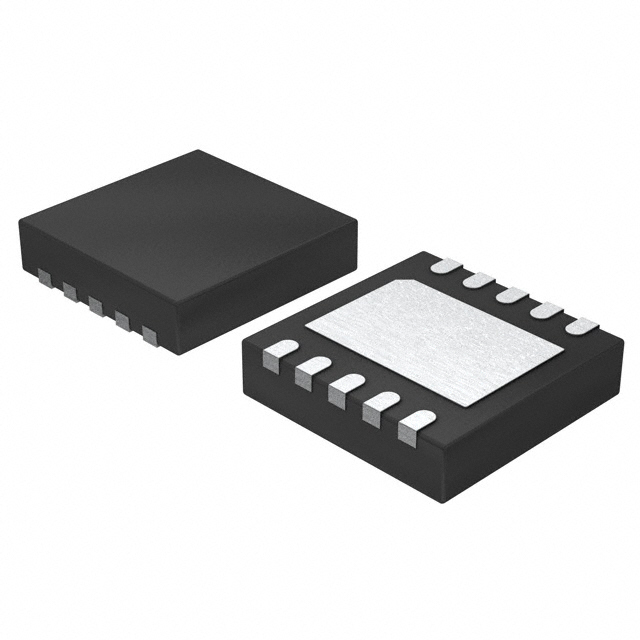

PI3USB221AZWEXIC USB2 SWITCH 3V UDFN3030-10 |
7,265 |
|
Datasheet | - | 10-UFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 1 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C | - | - | Surface Mount | 10-UDFN (3x3) |
|
|
PI3USB221EZWEXIC USB2 SWITCH 3V UDFN3030-10 |
39,661 |
|
Datasheet | - | 10-UFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 1 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C | - | - | Surface Mount | 10-UDFN (3x3) |
|
TS3L110DBQRIC ETHERNET SWITCH QUAD 16SSOP |
2,036 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 4 | 8Ohm | 3V ~ 3.6V | - | 500MHz | 10/100 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
TS3L4892RHHRIC ETHERNET SWITCH 16X8 36VQFN |
3,929 |
|
Datasheet | - | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 11 | 6Ohm | 3V ~ 3.6V | - | 1.1GHz | 10/100,1000 Base-T, LVDS, LVPECL | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-VQFN (6x6) |
|
HD3SS3202IRSVRHD3SS3202IRSV |
3,847 |
|
Datasheet | - | 16-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 2 | 8Ohm | 3V ~ 3.6V | - | 8GHz | Bi-Directional | -40°C ~ 85°C | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
NCN1188MUTAGIC USB SWITCH 3:1 AUD/MHL 12UQFN |
2,833 |
|
Datasheet | - | 12-UFQFN | Tape & Reel (TR) | Active | Audio, USB, Video | 3:1 | - | 2 | 7.5Ohm | 2.7V ~ 5.5V | - | 1.8GHz | HDMI, USB 2.0, USB 3.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UQFN (1.7x2) |
|
|
HD3SS3202IRSVTTWO-CHANNEL DIFFERENTIAL 2:1/1:2 |
784 |
|
Datasheet | - | 16-UFQFN | Tape & Reel (TR) | Active | USB | 2:1, 1:2 | - | 2 | 8Ohm | 3V ~ 3.6V | - | 8GHz | Bi-Directional | -40°C ~ 85°C | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
HD3SS3212RKSRIC MUX 2:1 8 OHM 20VQFN |
6,278 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 8Ohm | 2.7V ~ 3.6V | - | 8GHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 20-VQFN (2.5x4.5) |
Frequently Asked Questions
What are Analog Switches - Special Purpose components used for?
Analog Switches - Special Purpose components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches - Special Purpose part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches - Special Purpose parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
