Analog Switches - Special Purpose
Explore Analog Switches - Special Purpose parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSA2567UMXIC SWITCH 4PDT 16UMLP |
30,395 |
|
Datasheet | - | 16-UFQFN | Tape & Reel (TR) | Active | Telecommunications | - | 4PDT | 1 | 10Ohm | 1.65V ~ 4.3V | - | 475MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|
TS3USB30RSWRIC USB SWITCH DUAL 1X2 10UQFN |
15,782 |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 10Ohm | 3V ~ 4.3V | - | 955MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
TS3L501ERUARIC LAN MUX/DMUX 16B TO 8B 42WQFN |
4,732 |
|
Datasheet | - | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 11 | 8Ohm | 3V ~ 3.6V | - | 600MHz | 10/100,1000 Base-T, LVDS, LVPECL | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
CBTU02044HEJSWITCH 1-2 PCIE GEN4 HUQFN16 |
35,637 |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Active | PCIe | 1:2 | SPDT | 2 | 14Ohm | 1.62V ~ 3.63V | - | 17GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-HUQFN (1.6x2.4) |
|
CBTL02043ABQ,115IC MUX/DEMUX 2:1 PCI 20DHVQFN |
11,676 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, PCIe, USB | 2:1 | - | 2 | 6Ohm (Typ) | 3V ~ 3.6V | - | 10GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-DHVQFN (4.5x2.5) |
|
|
FSUSB74UMXIC USB MUX/SWITCH 16UMLP |
11,150 |
|
Datasheet | - | 16-UFQFN | Tape & Reel (TR) | Active | USB | 4:1 | - | 1 | 9Ohm | 2.5V ~ 4.4V | - | - | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|
PI3USB102EZLEXIC USB 2.0 SWITCH 10TQFN |
23,773 |
|
Datasheet | - | 10-WFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 4Ohm (Typ) | 3V ~ 5.5V | - | 1GHz | Bi-Directional, USB 2.0 | - | - | - | Surface Mount | 10-TQFN (1.3x1.6) |
|
|
CBTL02042ABQ,115IC MUX/DEMUX 2:1 PCI 20DHVQFN |
10,414 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, PCIe, USB | 2:1 | - | 2 | 6Ohm (Typ) | 3V ~ 3.6V | - | 7GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-DHVQFN (4.5x2.5) |
|
PI3WVR646GEEXANALOG SWITCH 3V-5V U-WLB2424-36 |
8,515 |
|
Datasheet | - | 36-UFBGA, WLCSP | Tape & Reel (TR) | Active | Telecommunications | 2:1 | SPDT | 10 | 6Ohm (Typ) | 1.5V ~ 5V | - | 4.5GHz | Differential Compatibility | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-CSP (2.44x2.44) |
|
FSUSB43L10XIC USB MUX/SWITCH 10MICROPAK |
7,982 |
|
Datasheet | - | 10-UFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|

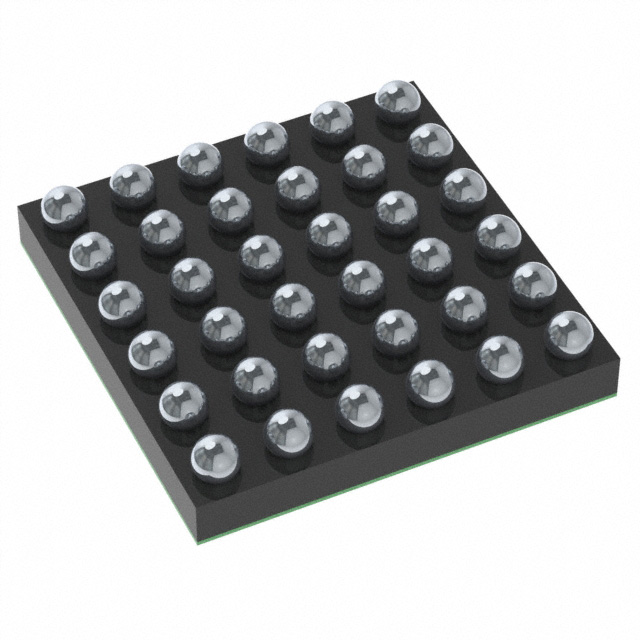

PI3WVR648GEAEXMIPI SWITCH U-WLB2424-36 |
107 |
|
Datasheet | - | 36-UFBGA, WLCSP | Tape & Reel (TR) | Active | Telecommunications | 2:1 | SPDT | 10 | - | 1.5V ~ 5V | - | 6GHz | - | - | - | - | Surface Mount | 36-WLCSP (2.44x2.44) |
|
FSA553UCXIC AUDIO SWITCH SPST DUAL WLCSP |
11,453 |
|
Datasheet | - | 9-UFBGA, WLCSP | Tape & Reel (TR) | Active | Audio | 1:1 | SPST | 2 | 800mOhm | 1.5V ~ 3V | - | 200MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLCSP (1.22x1.22) |
|
TS3DDR4000ZBARIC DDR SWITCH/MUX 48NFBGA |
3,049 |
|
Datasheet | - | 48-TFBGA | Tape & Reel (TR) | Active | Memory | 2:1 | - | 1 | 11.2Ohm | 2.375V ~ 3.6V | - | 5.6GHz | DDR2, DDR3, DDR4 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-NFBGA (8x3) |
|
FSA660TMXIC SWITCH 2:1 MIPI C-PHY 18TMLP |
4,135 |
|
Datasheet | - | 18-XFQFN Exposed Pad | Tape & Reel (TR) | Active | MIPI | 2:1 | SPDT | 1 | 8Ohm | 1.5V ~ 5V | - | 5GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-TMLP (2x2.8) |
|
PI3USB302-AZBEXIC MUX/DEMUX USB 3.0 20TQFN |
3,300 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | - | 2 | - | 3V ~ 3.6V | - | - | Bi-Directional, USB 3.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QFN (2.5x4.5) |
|
FSA636UCXULTRA SMALL, LOW POWER, 4-DATA L |
132 |
|
Datasheet | - | 36-XFBGA, WLCSP | Tape & Reel (TR) | Active | DisplayPort, PCIe, Telecommunications, USB | 2:1 | SPDT | 10 | 9Ohm | 1.5V ~ 5V | - | 4GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-WLCSP (2.06x2.06) |
|
PI3DBS16212XUAEXPCIE SWITCH X2-QFN2020-18 |
12,291 |
|
Datasheet | - | 18-XFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | - | 3.3V | - | 13GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 18-X2QFN (2x2) |
|
PI3DBS16212ZBBEXPCIE SWITCH V-QFN2545-20 T&R 3.5 |
61,110 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | - | 3.3V | - | 13GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 20-TQFN (2.5x4.5) |
|
PI3PCIE3412AZHEXPCI SWITCH 2:1 4 CHAN 42TQFN |
24,341 |
|
Datasheet | PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 2:1 | - | 4 | 5Ohm (Typ) | 3V ~ 3.6V | - | 8.2GHz | Bi-Directional, SATA, USB 3.0 | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|

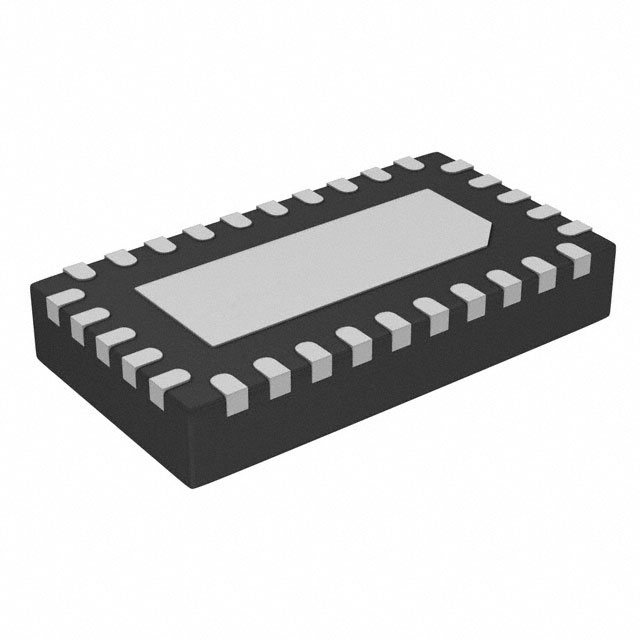

PI3DBS16213ZLEXPCIE SWITCH W-QFN2545-30 |
6,260 |
|
Datasheet | - | 30-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 3:1 | SP3T | 2 | - | 3.3V | - | 12GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 30-TQFN (2.5x4.5) |
Frequently Asked Questions
What are Analog Switches - Special Purpose components used for?
Analog Switches - Special Purpose components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches - Special Purpose part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches - Special Purpose parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
