| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-CPV362M4UPBFIGBT MODULE 600V 7.2A 23W IMS-2 |
4,719 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 7.2 A | 23 W | 2.2V @ 15V, 3.9A | 250 µA | 530 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV363M4FPBFIGBT MODULE 600V 3PHASE IMS-2 |
5,179 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV363M4KPBFIGBT MODULE 600V 11A 36W IMS-2 |
9,738 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 11 A | 36 W | 2.1V @ 15V, 6A | 250 µA | 740 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV364M4FPBFIGBT MODULE 600V 27A 63W IMS-2 |
7,152 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 27 A | 63 W | 1.5V @ 15V, 15A | 250 µA | 2.2 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV364M4UPBFIGBT MODULE 600V 20A 63W IMS-2 |
4,550 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 20 A | 63 W | 2.1V @ 15V, 10A | 250 µA | 2.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV362M4FPBFIGBT MODULE 600V 8.8A 23W IMS-2 |
9,271 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 8.8 A | 23 W | 1.7V @ 15V, 4.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
VS-EMG050J60NIGBT MOD 600V 88A 338W EMIPAK2 |
9,087 |
|
Datasheet | - | EMIPAK2 | Bulk | Obsolete | - | Half Bridge | 600 V | 88 A | 338 W | 2.1V @ 15V, 50A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK2 |
|

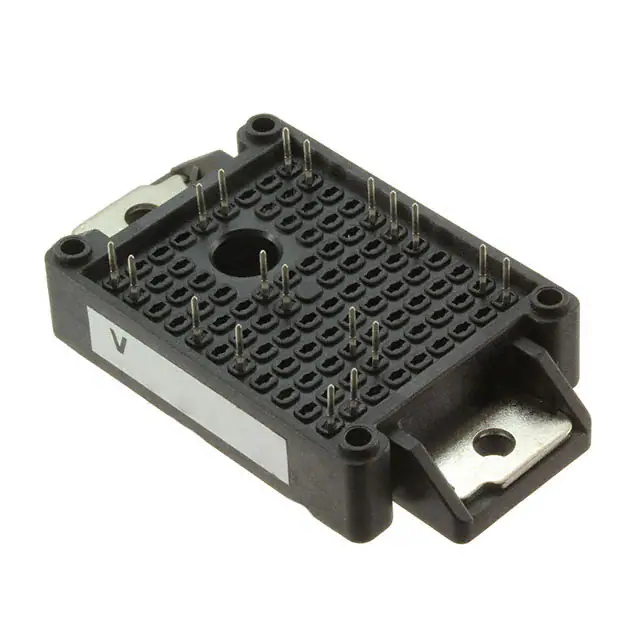

VS-ENQ030L120SIGBT MOD 1200V 61A EMIPAK-1B |
7,623 |
|
Datasheet | - | EMIPAK-1B | Bulk | Active | Trench | Three Level Inverter | 1200 V | 61 A | 216 W | 2.52V @ 15V, 30A | 230 µA | 3.34 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK-1B |
|
VS-ETL015Y120HIGBT MOD 1200V 22A 89W EMIPAK-2B |
8,855 |
|
Datasheet | - | EMIPAK-2B | Bulk | Active | Trench | - | 1200 V | 22 A | 89 W | 3.03V @ 15V, 15A | 75 µA | 1.07 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK-2B |
|
VS-GA100NA60UPIGBT MOD 600V 100A 250W SOT227 |
3,404 |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Obsolete | - | Single | 600 V | 100 A | 250 W | 2.1V @ 15V, 50A | 250 µA | 7.4 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
