IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPV363M4KIGBT MODULE 600V 11A 36W IMS-2 |
2,697 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 11 A | 36 W | 2V @ 15V, 11A | 250 µA | 740 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
CPV363M4UIGBT MODULE 600V 13A 36W IMS-2 |
5,481 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 13 A | 36 W | 2V @ 15V, 13A | 250 µA | 1.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV364M4KPBFIGBT MODULE 600V 24A 63W IMS-2 |
9,313 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 24 A | 63 W | 1.8V @ 15V, 24A | 250 µA | 1.6 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
CPV364M4UIGBT MODULE 600V 20A 63W IMS-2 |
4,124 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 20 A | 63 W | 1.84V @ 15V, 20A | 250 µA | 2.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
50MT060WHIGBT MODULE 600V 114A 658W 12MTP |
6,681 |
|
Datasheet | - | 12-MTP Module | - | Obsolete | PT | Half Bridge | 600 V | 114 A | 658 W | 3.2V @ 15V, 100A | 400 µA | 7.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 12-MTP |
|
|
50MT060ULSIGBT MODULE 600V 100A 445W 10MTP |
3,034 |
|
Datasheet | - | 10-MTP | - | Obsolete | - | Single | 600 V | 100 A | 445 W | 2.55V @ 15V, 100A | 250 µA | 14.7 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 10-MTP |
|
VS-GA250SA60SIGBT MOD 600V 400A 961W SOT227 |
7,557 |
|
Datasheet | - | SOT-227-4 | Tube | Obsolete | - | Single | 600 V | 400 A | 961 W | 1.66V @ 15V, 200A | 1 mA | 16.25 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|

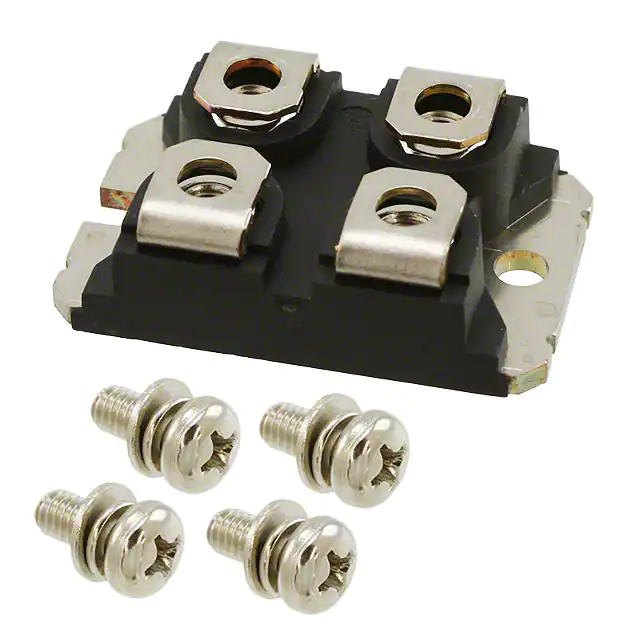

VS-GB90SA120UIGBT MOD 1200V 149A 862W SOT227 |
6,310 |
|
Datasheet | - | SOT-227-4 | Tube | Obsolete | NPT | Single | 1200 V | 149 A | 862 W | 3.9V @ 15V, 75A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
VS-GB90DA60UIGBT MOD 600V 147A 625W SOT227 |
6,881 |
|
Datasheet | - | SOT-227-4 | Tube | Obsolete | NPT | Single | 600 V | 147 A | 625 W | 2.8V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-CPV362M4KPBFIGBT MODULE 600V 3PHASE IMS-2 |
5,472 |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
