IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM900DU-24NFIGBT MOD 1200V 900A 2550W |
7,381 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 900 A | 2550 W | 2.5V @ 15V, 900A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM900DUC-24NFIGBT MOD 1200V 900A 5900W |
9,189 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 900 A | 5900 W | 2.5V @ 15V, 900A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM1000E3U-34NFIGBT MOD 1700V 1000A 3900W |
7,626 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1700 V | 1000 A | 3900 W | 2.8V @ 15V, 1000A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM1400DUC-24NFIGBT MOD 1200V 1400A 8900W |
5,276 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 1400 A | 8900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|

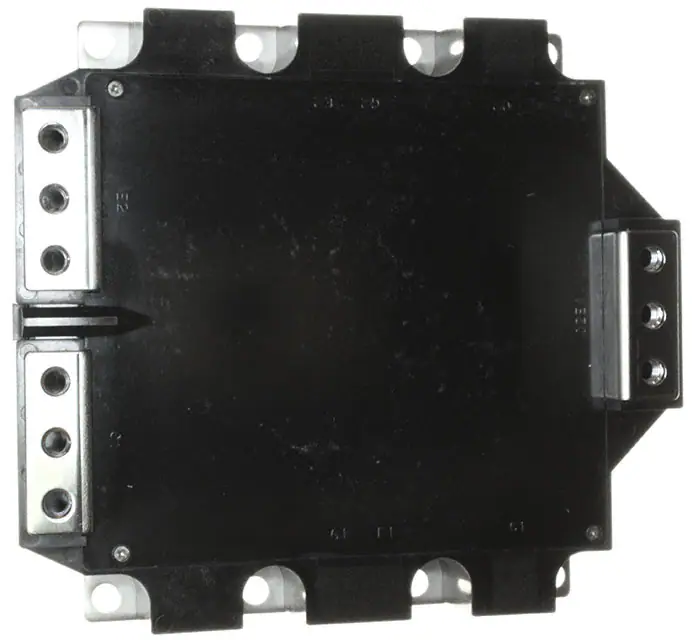

CM1000DU-34NFIGBT MOD 1700V 1000A 3900W |
7,019 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 1000 A | 3900 W | 2.8V @ 15V, 1000A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

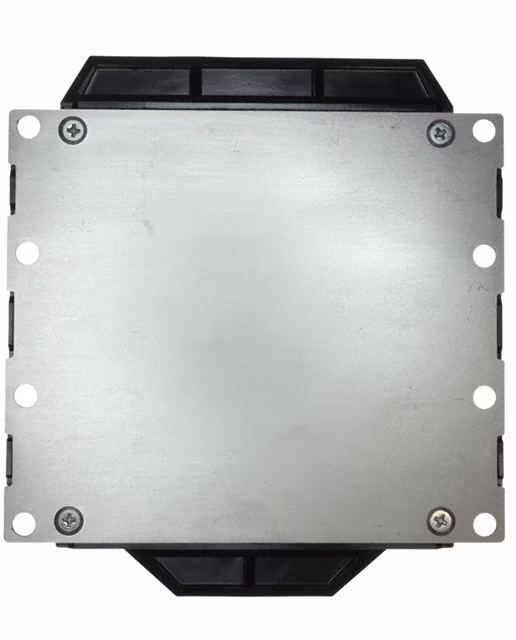

CM1400DU-24NFIGBT MOD 1200V 1400A 3900W |
9,967 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 1400 A | 3900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM450DX-24AIGBT MOD 1200V 450A 2840W |
2,780 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 450 A | 2840 W | 2.6V @ 15V, 450A | 1 mA | 68 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

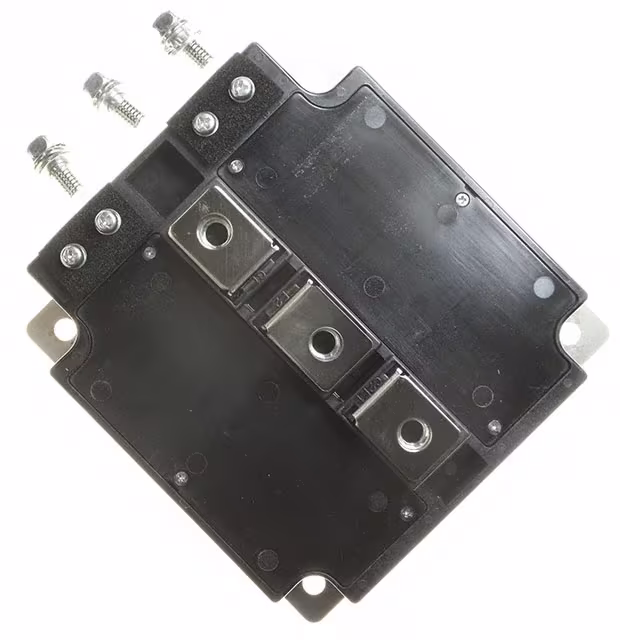

CM600DU-24NFIGBT MOD 1200V 600A 2080W |
6,000 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 600 A | 2080 W | 2.65V @ 15V, 600A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM600DY-12NFIGBT MOD 600V 600A 1130W |
3,660 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 600 A | 1130 W | 2.2V @ 15V, 600A | 1 mA | 90 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

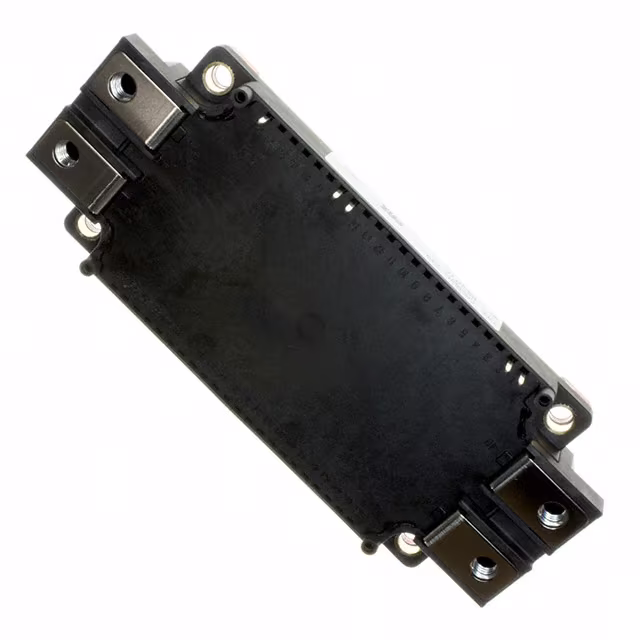

CM600HX-24AIGBT MOD 1200V 600A 3785W |
6,299 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 600 A | 3785 W | 2.6V @ 15V, 600A | 1 mA | 100 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
