IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM500HA-34AIGBT MOD 1700V 500A 5000W |
8,721 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Single | 1700 V | 500 A | 5000 W | 2.8V @ 15V, 500A | 1 mA | 120 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TU-24FIGBT MOD 1200V 100A 500W |
8,922 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 1200 V | 100 A | 500 W | 2.4V @ 15V, 100A | 1 mA | 39 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

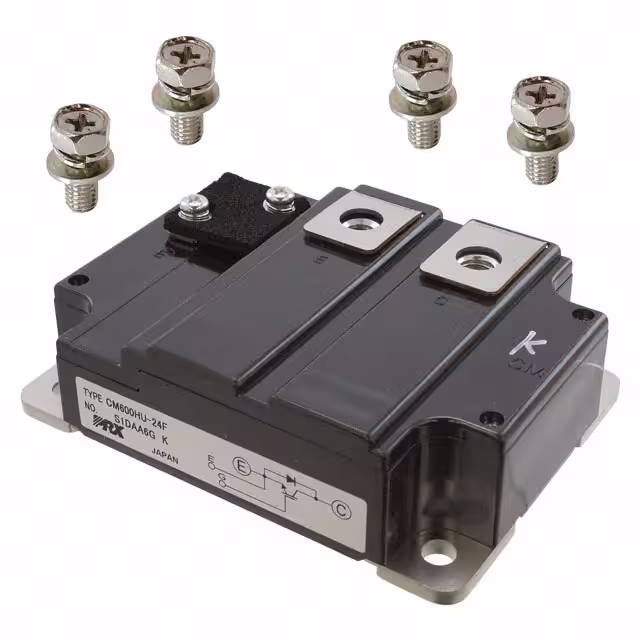

CM600HU-24FIGBT MOD 1200V 600A 2400W |
7,560 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 1200 V | 600 A | 2400 W | 2.4V @ 15V, 600A | 2 mA | 230 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM600DY-24SIGBT MOD 1200V 600A 4050W |
7,460 |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 600 A | 4050 W | 2.25V @ 15V, 600A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM400DU-24NFHIGBT MOD 1200V 400A 1040W |
9,754 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 400 A | 1040 W | 6.5V @ 15V, 400A | 1 mA | 63 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600HU-24HIGBT MOD 1200V 600A 3100W |
3,206 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 600 A | 3100 W | 3.7V @ 15V, 600A | 2 mA | 90 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TU-24HIGBT MOD 1200V 100A 650W |
7,036 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 100 A | 650 W | 3.7V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DY-34AIGBT MOD 1700V 300A 2900W |
8,905 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1700 V | 300 A | 2900 W | 2.8V @ 15V, 300A | 1 mA | 74 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM400DY-24NFIGBT MOD 1200V 400A 1470W |
5,994 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 400 A | 1470 W | 2.5V @ 15V, 400A | 1 mA | 94 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200TL-24NFIGBT MOD 1200V 200A 1160W |
2,626 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 200 A | 1160 W | 3.1V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
