IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGTQ150TA65TPGIGBT MODULE 650V 150A 365W SP6P |
8,376 |
|
Datasheet | - | Module | Bulk | Active | - | Three Phase Inverter | 650 V | 150 A | 365 W | 2.2V @ 15V, 150A | 150 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
APTGL120TA120TPGIGBT MODULE 1200V 140A 517W SP6P |
5,384 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Phase | 1200 V | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGL120TDU120TPGIGBT MODULE 1200V 140A 517W SP6P |
7,795 |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 1200 V | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT100TA120TPGIGBT MODULE 1200V 140A 480W SP6P |
4,821 |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Three Phase | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT300A120GIGBT MODULE 1200V 420A 1380W SP6 |
8,196 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300DU120GIGBT MODULE 1200V 420A 1380W SP6 |
8,419 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGL700U120D4GIGBT MODULE 1200V 910A 3000W D4 |
7,507 |
|
Datasheet | - | D4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 910 A | 3000 W | 2.2V @ 15V, 600A | 4 mA | 37.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D4 |
|
APTGT600U120D4GIGBT MODULE 1200V 900A 2500W D4 |
5,551 |
|
Datasheet | - | D4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 900 A | 2500 W | 2.1V @ 15V, 600A | 5 mA | 40 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
|

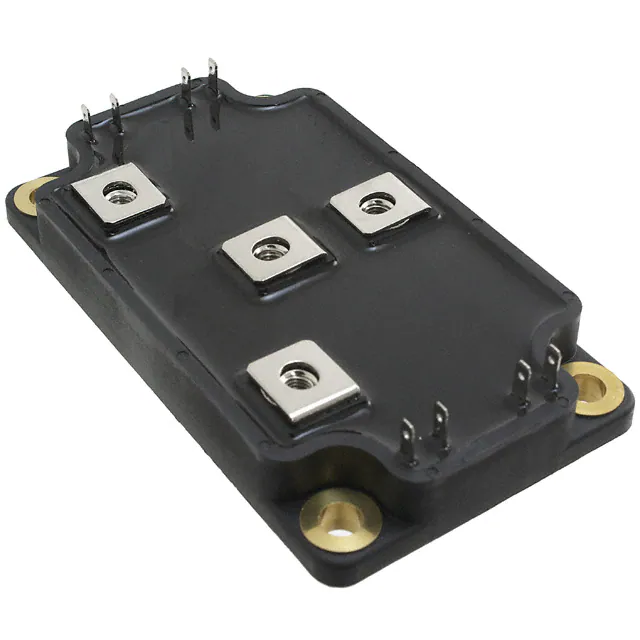

APTGT300TL60GIGBT MODULE 600V 400A 935W SP6 |
9,411 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 400 A | 935 W | 1.9V @ 15V, 300A | 350 µA | 18.4 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT150H120GIGBT MODULE 1200V 220A 690W SP6 |
3,023 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
