| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT150A120GIGBT MODULE 1200V 220A 690W SP6 |
4,301 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|

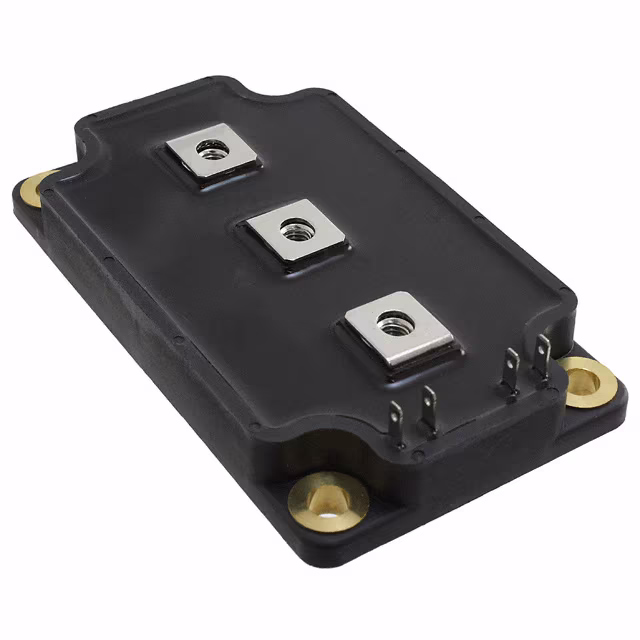

APTGT150DU120GIGBT MODULE 1200V 220A 690W SP6 |
6,252 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|

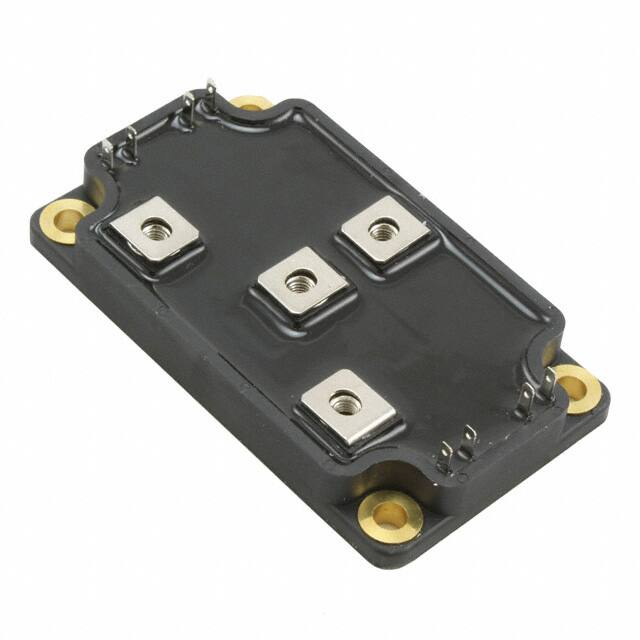

APTGT150TL60GIGBT MODULE 600V 200A 480W SP6 |
8,357 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 200 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGT300DA120GIGBT MODULE 1200V 420A 1380W SP6 |
5,315 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300SK120GIGBT MODULE 1200V 420A 1380W SP6 |
6,332 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT50H170TGIGBT MODULE 1700V 75A 312W SP4 |
7,585 |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT150DH120GIGBT MODULE 1200V 220A 690W SP6 |
8,582 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
|
APTGT300A60GIGBT MODULE 600V 430A 1150W SP6 |
6,940 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGT300DU60GIGBT MODULE 600V 430A 1150W SP6 |
6,954 |
|
Datasheet | - | SP6 | Tube | Active | Trench Field Stop | Dual, Common Source | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300A60D3GIGBT MODULE 600V 400A 940W D3 |
3,948 |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 400 A | 940 W | 1.9V @ 15V, 300A | 500 µA | 18.5 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
