IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ80HR120CT3GIGBT MODULE 1200V 150A 500W SP3 |
3,165 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | - | 1200 V | 150 A | 500 W | 2.4V @ 15V, 80A | 150 µA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGL90H120T3GIGBT MODULE 1200V 110A 385W SP3 |
4,210 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 110 A | 385 W | 2.25V @ 15V, 75A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|

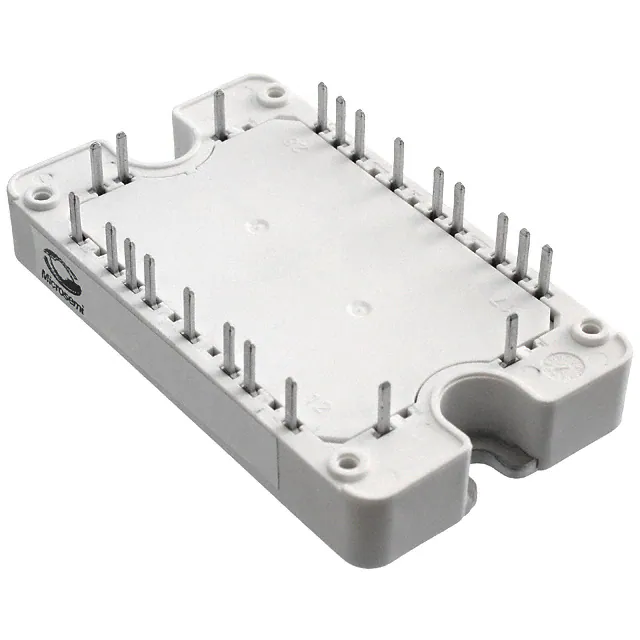

APTCV60HM45BC20T3GIGBT MODULE 600V 50A 250W SP3 |
3,688 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT50DH170TGIGBT MODULE 1700V 75A 312W SP4 |
4,460 |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGL180A120T3AGIGBT MODULE 1200V 230A 940W SP3 |
9,081 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 230 A | 940 W | 2.2V @ 15V, 150A | 300 µA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT100H60TGIGBT MODULE 600V 150A 340W SP4 |
5,128 |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
APTGLQ200A120T3AGIGBT MOD 1200V 400A 1250W SP3F |
6,728 |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 400 A | 1250 W | 2.4V @ 15V, 160A | 100 µA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
APTGF150H120GIGBT MODULE 1200V 200A 961W SP6 |
2,698 |
|
Datasheet | - | SP6 | Bulk | Obsolete | NPT | Full Bridge Inverter | 1200 V | 200 A | 961 W | 3.7V @ 15V, 150A | 350 µA | 10.2 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|

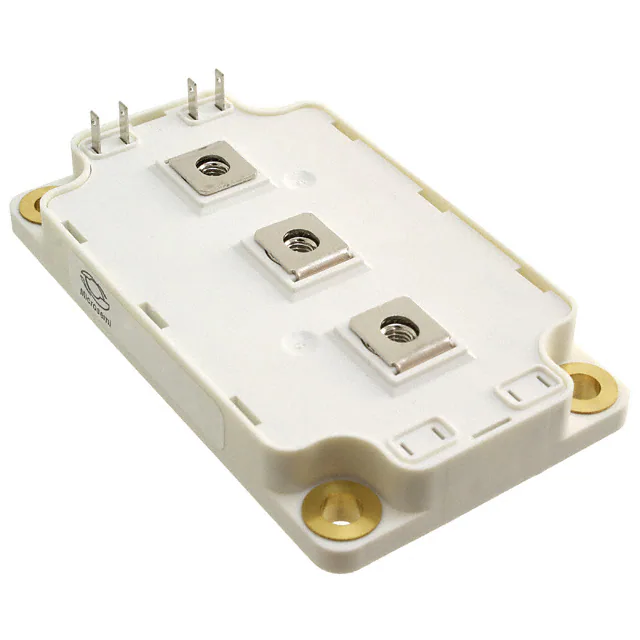

APTGF300A120GIGBT MODULE 1200V 400A 1780W SP6 |
6,612 |
|
Datasheet | - | SP6 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 400 A | 1780 W | 3.9V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
|
APTGT100DH120TGIGBT MODULE 1200V 140A 480W SP4 |
5,346 |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
