IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF1500R17IP5PBPSA1IGBT MOD 1700V 1500A AGPRIME3+-5 |
3 |
|
Datasheet | PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1500 A | 1500 W | 2.2V @ 15V, 1.5kA | 5 mA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount | AG-PRIME3+-5 |
|
|
FF1800R17IP5PBPSA1IGBT MODULE 1700V 3600A |
3 |
|
Datasheet | PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1800 A | 1800000 W | 2.2V @ 15V, 1800A | 5 mA | 105 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
FZ1000R33HE3BPSA1IGBT MODULE 3300V 1000A |
3 |
|
Datasheet | IHM-B | Module | Tray | Not For New Designs | Trench Field Stop | Single Switch | 3300 V | 1000 A | - | 3.1V @ 15V, 100A | 5 mA | 190 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1800R23IE7BPSA1PP IHM I XHP 2.3KV AG-PRIME3+-7 |
2 |
|
Datasheet | PrimePACK™3+ B | Module | Tray | Active | - | 2 Independent | 2300 V | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-PRIME3+ |
|

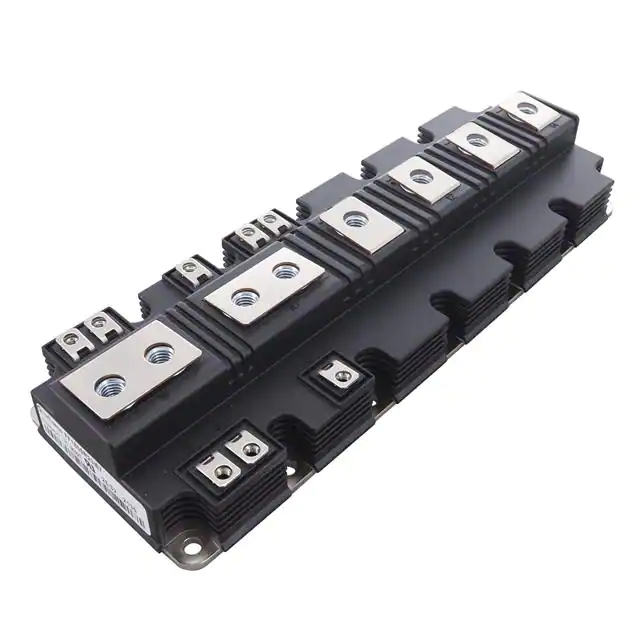

FF1800R23IE7PBPSA1IGBT MODULE |
2 |
|
Datasheet | PrimePACK™3+ B | Module | Bulk | Active | - | 2 Independent | 2300 V | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | PrimePACK™ 3+ |
|
FS20R06W1E3BOMA1IGBT MODULE 600V 35A 135W |
24 |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS20R06W1E3B11BOMA1IGBT MODULE 600V 35A 135W |
32 |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 600 V | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FB30R06W1E3BOMA1IGBT MODULE 600V 39A 115W |
24 |
|
Datasheet | EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 39 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP30R06W1E3B11BOMA1IGBT MODULE 600V 37A 115W |
24 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 37 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FB20R06W1E3BOMA1IGBT MODULE 600V 29A 94W |
17 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 29 A | 94 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
