Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82477R4474M100FIXED IND 470UH 1.07A 605MOHM SM |
1,791 |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 1.07 A | 1.35A | Shielded | 605mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82559A0142A013FIXED IND 1.4UH 22A 1.5 MOHM SMD |
1,111 |
|
Datasheet | ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±10% | 22 A | 22A | Shielded | 1.5mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.236" (6.00mm) |
|
B82559A0392A013FIXED IND 3.9UH 12A 4.8 MOHM SMD |
1,643 |
|
Datasheet | ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 12 A | 12A | Shielded | 4.8mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.234" (5.95mm) |
|
B82559B7103A016FIXED IND 10UH 13A 7.2 MOHM SMD |
1,432 |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 13 A | 14.6A | Shielded | 7.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.333" (8.45mm) |
|
B82559B0303A016FIXED IND 30UH 8.5A 15.4MOHM SMD |
393 |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 30 µH | ±10% | 8.5 A | 10.3A | Shielded | 15.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.437" (11.10mm) |
|
|
B82559B5332A016FIXED IND 3.3UH 25A 2.2 MOHM SMD |
726 |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 25 A | 30.9A | Shielded | 2.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.407" (10.35mm) |
|
B82559A4322A033ERU33 PTH FLAT WIRE INDUCTOR 3.2 |
123 |
|
Datasheet | ERU33 - Flat Wire Inductor | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.2 µH | ±12% | 58 A | 95A | Shielded | 0.85mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.154" W (33.00mm x 29.30mm) | 0.606" (15.40mm) |
|

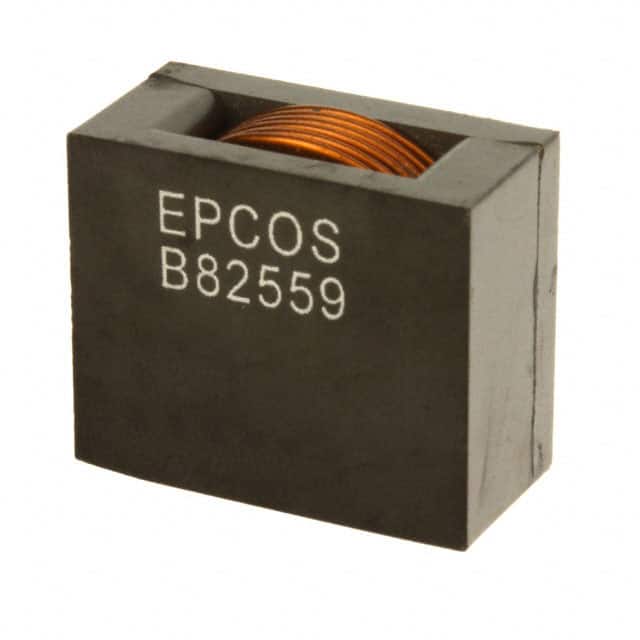

B82559A9203A025FIXED IND 20UH 3.25 MOHM SMD |
378 |
|
Datasheet | ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 20 µH | ±7% | - | 14A | Shielded | 3.25mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.591" (15.00mm) |
|
B82559A4222A020FIXED IND 2.2UH 1.2 MOHM SMD |
1,139 |
|
Datasheet | ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | - | 43A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.492" (12.50mm) |
|
B82559B2102A027FIXED IND 1UH 52A 0.46 MOHM SMD |
1,314 |
|
Datasheet | ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 52 A | 101.5A | Shielded | 0.46mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.482" (12.25mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
