Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADL32VHC-100MPOC INDUCTOR, 10 UH, EIA 1210 |
3,272 |
|
Datasheet | ADL32VHC | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1 A | 950mA | Shielded | 310mOhm Max | - | 110MHz | AEC-Q200 | 150°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
ADM32FSC-220MINDUCTORS FOR POWER OVER COAXIAL |
2,583 |
|
Datasheet | ADM32FSC | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 740 mA | 740mA | Shielded | 600mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.154" L x 0.098" W (3.90mm x 2.50mm) | 0.098" (2.50mm) |
|

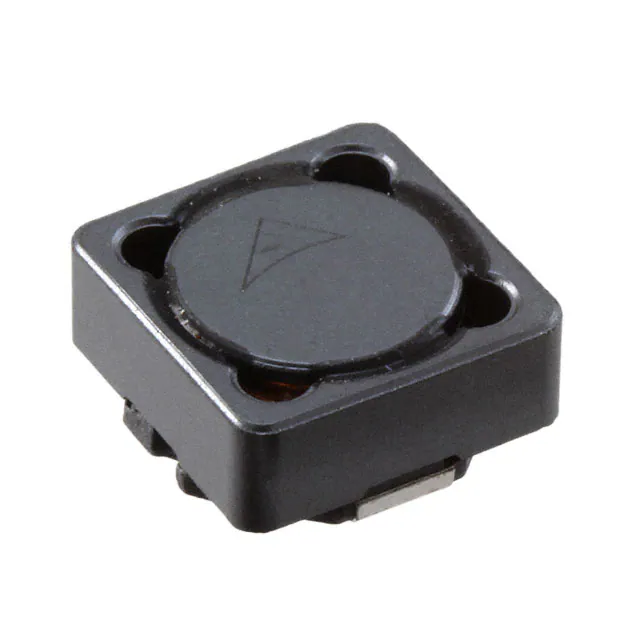

B82464P4223M000FIXED IND 22UH 2.25A 52 MOHM SMD |
344 |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.25 A | 2.5A | Shielded | 52mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464P4473M000FIXED IND 47UH 1.55A 95 MOHM SMD |
6,887 |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.55 A | 1.8A | Shielded | 95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464P4332M000FIXED IND 3.3UH 5.5A 12 MOHM SMD |
1,327 |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.5 A | 5.9A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464P4103M000FIXED IND 10UH 3.4A 30 MOHM SMD |
1,095 |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
PIS150H-471MFIXED IND 470UH 1.81A 0.25OHM SM |
390 |
|
Datasheet | PIS150H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 1.81 A | 2.3A | Shielded | 250mOhm | - | - | - | -40°C ~ 150°C | - | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.571" (14.50mm) |
|

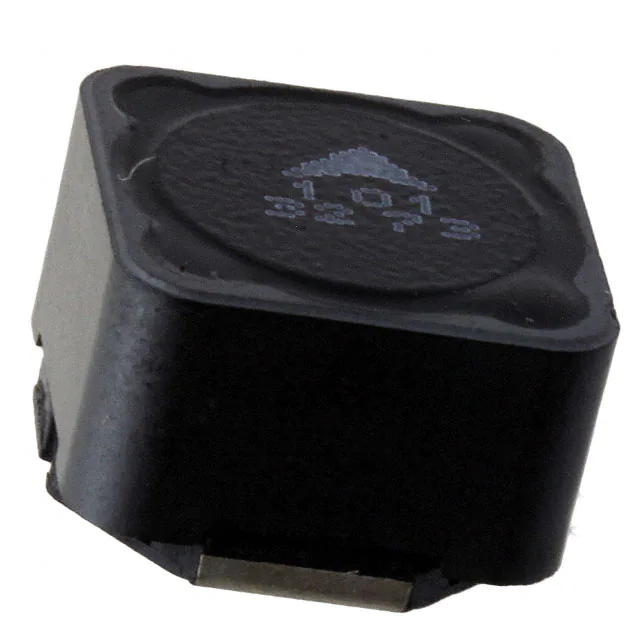

B82477R4103M100FIXED IND 10UH 6.2A 18.5MOHM SMD |
186 |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.2 A | 8.75A | Shielded | 18.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
B82477R4223M100FIXED IND 22UH 4.45A 32 MOHM SMD |
3,984 |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.45 A | 6.1A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
B82477R4104M100FIXED IND 100UH 2.35A 120MOHM SM |
6,167 |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.35 A | 2.9A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
