Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82464A4153K000FIXED IND 15UH 2.5A 46 MOHM SMD |
543 |
|
Datasheet | B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.5 A | 3.2A | Unshielded | 46mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464A4105K000FIXED IND 1MH 330MA 3 OHM SMD |
1,932 |
|
Datasheet | B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 330 mA | 380mA | Unshielded | 3Ohm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

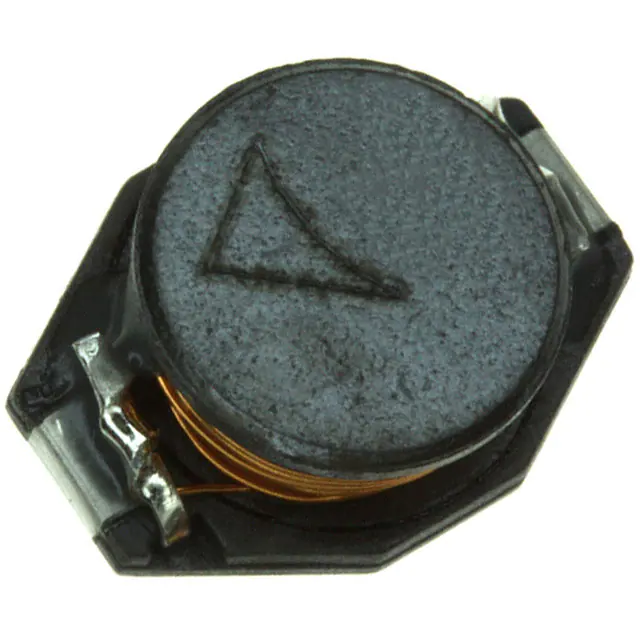

B82476A1103M000FIXED IND 10UH 3.9A 27 MOHM SMD |
8,233 |
|
Datasheet | B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 3.8A | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
B82464A4223K000FIXED IND 22UH 2.1A 85 MOHM SMD |
11,150 |
|
Datasheet | B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.1 A | 2.6A | Unshielded | 85mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82472P6105M000FIXED IND 1MH 200MA 3.85 OHM SMD |
3,561 |
|
Datasheet | B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 200 mA | 150mA | Shielded | 3.85Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
B82462G4474M000FIXED IND 470UH 240MA 2.7OHM SMD |
5,491 |
|
Datasheet | B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 240 mA | 180mA | Shielded | 2.7Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
B82479A1104M000FIXED IND 100UH 1.8A 190MOHM SMD |
2,193 |
|
Datasheet | B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.8 A | 3A | Unshielded | 190mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479A1333M000FIXED IND 33UH 3A 66 MOHM SMD |
1,608 |
|
Datasheet | B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | 5.5A | Unshielded | 66mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82462G4153M000FIXED IND 15UH 1.25A 97 MOHM SMD |
3,297 |
|
Datasheet | B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.25 A | 1.05A | Shielded | 97mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82479A1334M000FIXED IND 330UH 1A 560 MOHM SMD |
2,076 |
|
Datasheet | B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1 A | 1.9A | Unshielded | 560mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
