Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS03-R12J-RC.12uH +/-5% Ferrite Core Chip |
1,269 |
|
Datasheet | LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±5% | - | 1.5A | Unshielded | 150mOhm Max | 17 @ 7.9MHz | 1.35GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-72NJ-RC.072uH +/-5% Ferrite Core Chip |
1,595 |
|
Datasheet | LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 72 nH | ±5% | - | 1.5A | Unshielded | 120mOhm Max | 17 @ 7.9MHz | 1.7GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
LS10-4R7J-RC4.7uH +/-5% Ferrite Core Chip |
3,171 |
|
Datasheet | LS10 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±5% | 800 mA | - | Unshielded | 1.35Ohm Max | 37 @ 7.9MHz | 130MHz | - | -25°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1210 | 0.118" L x 0.098" W (2.99mm x 2.50mm) | 0.087" (2.20mm) |
|
LT20-4R7J-RC4.7uH +/-5% L.P. Ferrite Chip |
2,069 |
|
Datasheet | LT20 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±5% | - | 880mA | Unshielded | 1.48Ohm Max | 20 @ 7.96MHz | 155MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1210 | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.041" (1.05mm) |
|
PCSLF1275-220M-RC22uH +/-20% Power Chip Inductor |
3,832 |
|
Datasheet | PCSLF1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 4 A | 4A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
SPM5015T-R47M-CA02FIXED IND 470NH 9A 0.0121OHM SMD |
3,955 |
|
Datasheet | SPM-CA02 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 9 A | 12A | Shielded | 12.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
MCHC40-102J-RC1000UH 5% Molded Chip Inductor |
3,278 |
|
Datasheet | MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 mH | ±5% | - | 85mA | Unshielded | 15Ohm Max | 20 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-103K-RC10mH 10% Molded Chip Inductor |
3,527 |
|
Datasheet | MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 mH | ±10% | - | 25mA | Unshielded | 150Ohm Max | 20 @ 79.6kHz | 500kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
VTC230-101L-RC100uH +/-15% V.M. Toroidal Choke |
2,803 |
|
Datasheet | TC230 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
|
VTC100-220K-RC22uH +/-10% V.M. Toroidal Choke |
2,431 |
|
Datasheet | TC100 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 22 µH | ±10% | 3.5 A | 3.9A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.600" Dia (15.24mm) | - |
|
|
VTC230HT-2R7L-RC2.7uH +/-15% V.M. Toroidal Choke |
2,749 |
|
Datasheet | TC230HT | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 2.7 µH | ±15% | 31.6 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
MLPC12-2R2M-RC2.2uH +/-20% Multilayer Pwr Chip |
1,452 |
|
Datasheet | MLPC12 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VTC3221-500-20A50uH @ 20A Vert. Mount Toroid |
2,011 |
|
Datasheet | VTC3221-500-20A | Vertical, No Base, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 58.75 µH | ±12% | 20 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.827" (21.00mm) |
|

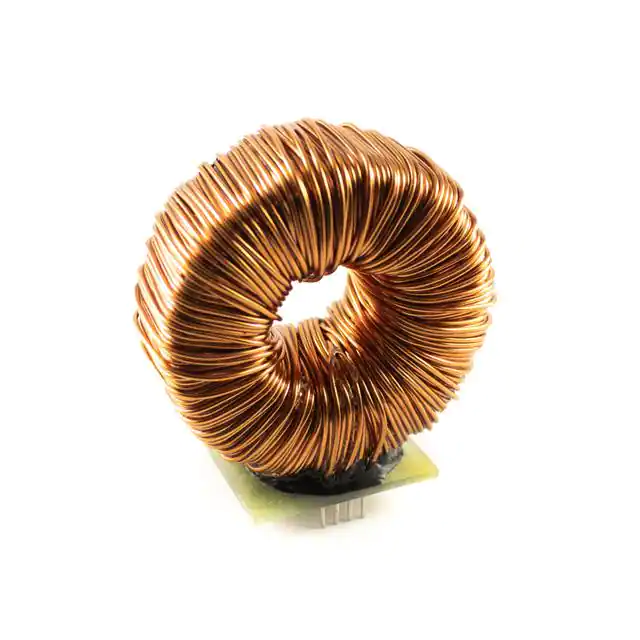

VTCB5427-431-10A570uh @ 16.5A Vert. Mount Toroid |
4,703 |
|
Datasheet | VTCB5427-431-10A | Vertical, 8 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 570 µH | ±15% | 16.5 A | - | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 125°C | 10 kHz | - | Through Hole | Vertical, 8 PC Pin | 2.126" L x 1.102" W (54.00mm x 28.00mm) | 2.146" (54.50mm) |
|
|
L8040C3R6NDWDTL8040C3R6NDWDT |
4,480 |
|
Datasheet | L-DWD | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | - | Shielded | 15mOhm Max | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
L8040C101MDWDTL8040C101MDWDT |
3,292 |
|
Datasheet | L-DWD | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1 A | - | Shielded | 290mOhm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
L0806C101MDWSTL0806C101MDWST |
2,021 |
|
Datasheet | L-DWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 170 mA | 70mA | Unshielded | 4.5Ohm | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0805R220MPWRTL0805R220MPWRT |
3,228 |
|
Datasheet | L-PWR | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 100 mA | - | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
L0806C101KDWSTL0806C101KDWST |
1,080 |
|
Datasheet | L-DWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±10% | 170 mA | 700mA | Unshielded | 4.5Ohm | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L8040C220MDWDTL8040C220MDWDT |
2,714 |
|
Datasheet | L-DWD | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | - | Shielded | 66mOhm Max | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
