Fixed Inductors

Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
FWPQ2814L-150K 15uH +/-10% Flat Wire SMD Power Allied Components International	2,038	7.98	RFQ	Datasheet	FWPQ2814L	2-SMD, Gull Wing	Tray	Active	Wirewound	-	15 µH	±10%	30 A	11A	Shielded	1.62mOhm Max	-	15MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.571" (14.50mm)
FWPQ2814L-330K 33uH +/-10% Flat Wire SMD Power Allied Components International	4,212	7.98	RFQ	Datasheet	FWPQ2814L	2-SMD, Gull Wing	Tray	Active	Wirewound	-	33 µH	±10%	30 A	3.3A	Shielded	1.62mOhm Max	-	7MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.571" (14.50mm)
FWPQ2814L-6R8K 6.8uH +/-10% Flat Wire SMD Power Allied Components International	1,947	7.98	RFQ	Datasheet	FWPQ2814L	2-SMD, Gull Wing	Tray	Active	Wirewound	-	6.8 µH	±10%	30 A	27.8A	Shielded	1.62mOhm Max	-	25MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.571" (14.50mm)
FWPQ2814L-4R7K 4.7uH +/-10% Flat Wire SMD Power Allied Components International	4,099	7.98	RFQ	Datasheet	FWPQ2814L	2-SMD, Gull Wing	Tray	Active	Wirewound	-	4.7 µH	±10%	30 A	39A	Shielded	1.62mOhm Max	-	30MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.571" (14.50mm)
FWPQ2814L-2R2K 2.2uH +/-10% Flat Wire SMD Power Allied Components International	1,655	7.98	RFQ	Datasheet	FWPQ2814L	2-SMD, Gull Wing	Tray	Active	Wirewound	-	2.2 µH	±10%	30 A	84.8A	Shielded	1.62mOhm Max	-	50MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.571" (14.50mm)
FWPQ2817H-100K 10uH +/-10% Flat Wire SMD Power Allied Components International	2,978	6.50	RFQ	Datasheet	FWTPQ2817H	2-SMD, Gull Wing	Tray	Active	Wirewound	-	10 µH	±10%	28 A	32.1A	Shielded	2.82mOhm	-	20MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.669" (17.00mm)
FWPQ2817H-3R3K 3.3uH +/-10% Flat Wire SMD Power Allied Components International	4,924	6.50	RFQ	Datasheet	FWTPQ2817H	2-SMD, Gull Wing	Tray	Active	Wirewound	-	3.3 µH	±10%	28 A	93.6A	Shielded	2.82mOhm	-	40MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.669" (17.00mm)
PCI20-1R0M-RC 1.0uH +/-20% Power Chip Inductor Allied Components International	2,686	1.25	RFQ	Datasheet	PCI20	Nonstandard	Tape & Reel (TR)	Active	-	-	1 µH	±20%	2.9 A	2.9A	Unshielded	50mOhm Max	-	130MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.260" L x 0.175" W (6.60mm x 4.45mm)	0.115" (2.92mm)
PCI20-3R3M-RC 3.3uH +/-20% Power Chip Inductor Allied Components International	1,660	1.25	RFQ	Datasheet	PCI20	Nonstandard	Tape & Reel (TR)	Active	-	-	3.3 µH	±20%	2 A	2A	Unshielded	80mOhm Max	-	70MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.260" L x 0.175" W (6.60mm x 4.45mm)	0.115" (2.92mm)
PCI50-4R7M-RC 4.7uH +/-20% Power Chip Inductor Allied Components International	3,242	1.25	RFQ	Datasheet	PCI50	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	4.7 µH	±20%	3.5 A	8A	Unshielded	33mOhm Max	-	25MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.510" L x 0.370" W (12.95mm x 9.40mm)	0.450" (11.43mm)
AM30-5R6M-RC 5.6uH +20% Axial Molded Inductor Allied Components International	2,232	0.98	RFQ	Datasheet	AM30	Axial	Bag	Active	Molded	-	5.6 µH	±10%	565 mA	-	Unshielded	320mOhm Max	45 @ 7.9MHz	60MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	Axial	0.156" Dia (3.96mm)	0.375" (9.53mm)
SQAC0806-12NJ-RC 12.3nH +/-5% Square Wound Coil Allied Components International	4,433	0.98	RFQ	Datasheet	SQAC0806	Nonstandard	Tape & Reel (TR)	Active	-	Air	12 nH	±5%	2.9 A	-	Unshielded	8mOhm Max	90 @ 400MHz	4.8GHz	-	-40°C ~ 125°C	400 MHz	-	Surface Mount	-	0.076" L x 0.072" W (1.93mm x 1.83mm)	0.059" (1.50mm)

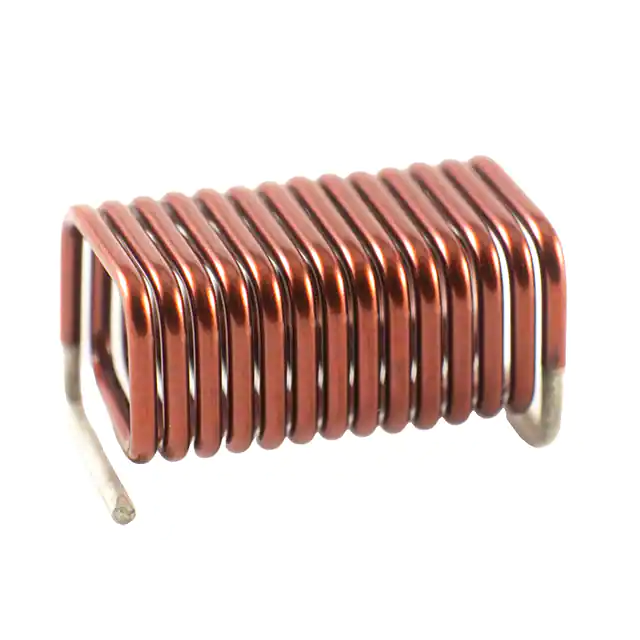

SQAC2929-431NG-RC 430nH +/-2% SMD Sq. Air Core Ind Allied Components International	2,472	0.98	RFQ	Datasheet	SQAC2929	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	430 nH	±2%	4.2 A	-	Unshielded	16.5mOhm Max	180 @ 50MHz	500MHz	-	-40°C ~ 125°C	50 MHz	-	Surface Mount	-	0.520" L x 0.295" W (13.21mm x 7.49mm)	0.295" (7.49mm)
SQAC2929-501NG-RC 500nH +/-2% SMD Sq. Air Core Ind Allied Components International	2,058	0.98	RFQ	Datasheet	SQAC2929	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	500 nH	±2%	4.3 A	-	Unshielded	15.5mOhm Max	180 @ 50MHz	550MHz	-	-40°C ~ 125°C	50 MHz	-	Surface Mount	-	0.551" L x 0.295" W (14.00mm x 7.49mm)	0.295" (7.49mm)
SQAC1515-82NG-RC 82nH +/-2% SMD Air Core Inductor Allied Components International	1,877	0.00	RFQ	Datasheet	SQAC1515	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	82 nH	±2%	5.6 A	-	Unshielded	9.4mOhm Max	230 @ 400MHz	1.79GHz	-	-40°C ~ 125°C	400 MHz	-	Surface Mount	-	0.230" L x 0.140" W (5.84mm x 3.56mm)	0.154" (3.91mm)
HFC05-100NJ-RC 100nH +/-5% High Frequency Chip Allied Components International	2,212	0.98	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	100 nH	±5%	300 mA	-	Unshielded	1.2Ohm Max	12 @ 100MHz	770MHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
HFC05-120NJ-RC 120nH +/-5% High Frequency Chip Allied Components International	4,427	0.98	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	120 nH	±5%	300 mA	-	Unshielded	1.3Ohm Max	8 @ 100MHz	650MHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
ASPI-2510-1R5M-T2 FIXED IND 1.5UH 1.5A 107MOHM SMD Abracon LLC	2,499	0.00	RFQ	Datasheet	ASPI-2510	1008 (2520 Metric)	Bulk	Active	Drum Core, Wirewound	Ferrite	1.5 µH	±20%	1.55 A	1.7A	Shielded	90mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	2510	0.098" L x 0.079" W (2.50mm x 2.00mm)	0.039" (1.00mm)
ASPI-0615FS-5R6N LOW PROFILE SHIELDED SMD CHIP PO Abracon LLC	2,216	0.00	RFQ	Datasheet	ASPI-0615FS	2424 (6060 Metric)	Bulk	Obsolete	Wirewound	Ferrite	5.6 µH	±30%	2 A	2.2A	Shielded	55mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	2424	0.236" L x 0.236" W (6.00mm x 6.00mm)	0.087" (2.20mm)
HFC05-5N6K-RC 5.6nH +/-10% High Frequency Chip Allied Components International	2,583	0.98	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	5.6 nH	±10%	600 mA	-	Unshielded	180mOhm Max	10 @ 100MHz	4.1GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)

FAQ

Frequently Asked Questions

What are Fixed Inductors components used for?

Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Fixed Inductors part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
