Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6060FA-100MFIXED IND 10UH 7A 29.3 MOHM SMD |
2,692 |
|
Datasheet | SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 7 A | 7.6A | Shielded | 29.3mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|
SRP7030CA-4R7MFIXED IND 4.7UH 9A 0.0267OHM SMD |
2,929 |
|
Datasheet | SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 9 A | 13.5A | Shielded | 26.7mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
SRP7030CA-2R2MFIXED IND 2.2UH 13A 0.0137OHM SM |
1,500 |
|
Datasheet | SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 13 A | 19A | Shielded | 13.7mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
SRP7030CA-3R3MFIXED IND 3.3UH 10A 0.018OHM SMD |
160 |
|
Datasheet | SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 3.3 µH | ±20% | 10 A | 15A | Shielded | 18mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
SRP7030CA-5R6MFIXED IND 5.6UH 7.3A 0.0332OHM |
122 |
|
Datasheet | SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 5.6 µH | ±20% | 7.3 A | 12.5A | Shielded | 33.2mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|

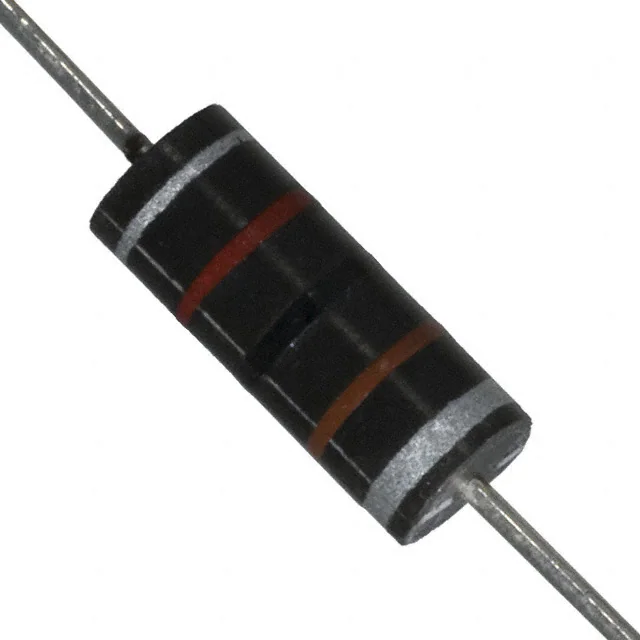

9250A-105-RCFIXED IND 1MH 70MA 17.5 OHM TH |
2,873 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 1 mH | ±10% | 70 mA | 40mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-103-RCFIXED IND 10UH 220MA 1.62 OHM TH |
1,708 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 10 µH | ±10% | 220 mA | 220mA | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

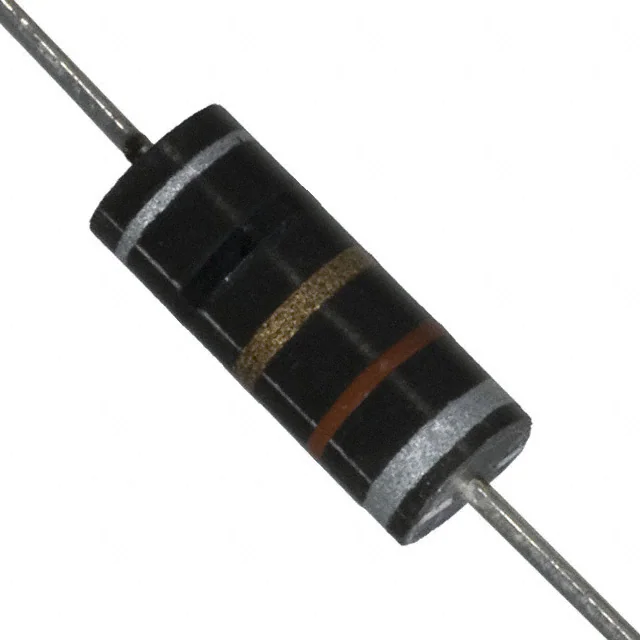

9250A-102-RCFIXED IND 1UH 1.07A 70 MOHM TH |
1,267 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 1 µH | ±10% | 1.07 A | 1.07A | Shielded | 70mOhm Max | 40 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
8230-02-RCFIXED IND 180NH 1.01A 120MOHM TH |
936 |
|
Datasheet | 8230 | Axial | Bulk | Active | Wirewound | Phenolic | 180 nH | ±10% | 1.01 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
9250A-104-RCFIXED IND 100UH 160MA 3.12OHM TH |
861 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 100 µH | ±10% | 160 mA | 120mA | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
