Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

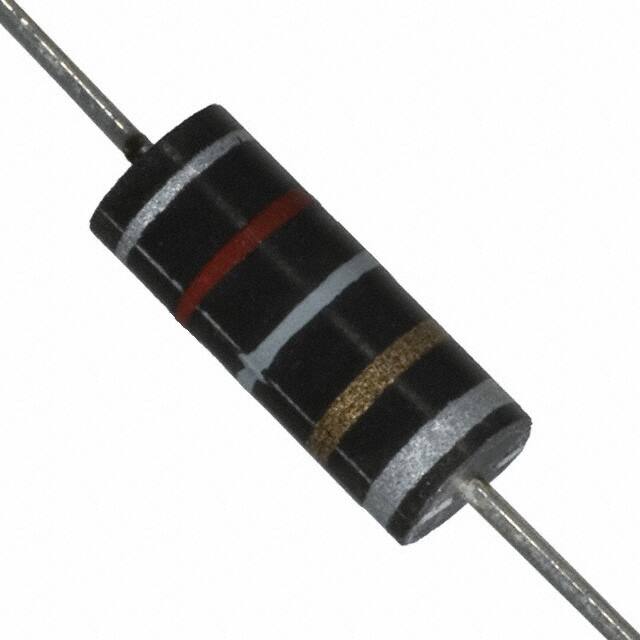

9250A-821-RCFIXED IND 820NH 370MA 590MOHM TH |
664 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 820 nH | ±10% | 370 mA | 370mA | Shielded | 590mOhm Max | 50 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

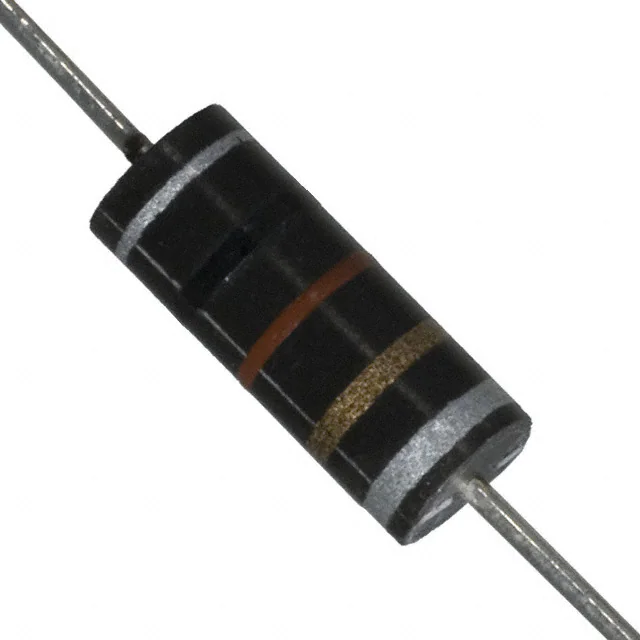

9250A-101-RCFIXED IND 100NH 1.79A 25 MOHM TH |
372 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 100 nH | ±10% | 1.79 A | 1.79A | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

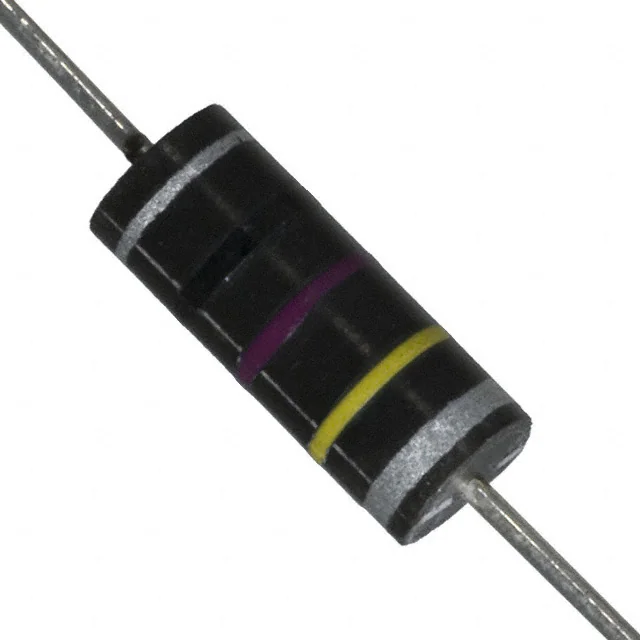

9250A-473-RCFIXED IND 47UH 195MA 2.11 OHM TH |
356 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 47 µH | ±10% | 195 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-223-RCFIXED IND 22UH 290MA 960 MOHM TH |
288 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 22 µH | ±10% | 290 mA | 220mA | Shielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
5256-RCFIXED IND 500UH 2A 260 MOHM TH |
1,120 |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±20% | 2 A | - | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
|
5258-RCFIXED IND 1MH 1A 550 MOHM TH |
7,603 |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 1 A | - | Unshielded | 550mOhm Max | - | 650kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
|
5230-RCFIXED IND 4UH 8A 12 MOHM TH |
4,505 |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4 µH | ±20% | 8 A | - | Unshielded | 12mOhm Max | - | 165MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.380" Dia x 0.875" L (9.65mm x 22.23mm) | - |
|
|
5254-RCFIXED IND 250UH 2.5A 170 MOHM TH |
3,947 |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±20% | 2.5 A | - | Unshielded | 170mOhm Max | - | 1.3MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.440" Dia x 1.250" L (11.18mm x 31.75mm) | - |
|
4606-RCFIXED IND 2.4UH 1.5A 190 MOHM TH |
3,964 |
|
Datasheet | 4600 | Axial | Bulk | Active | Wirewound | Phenolic | 2.4 µH | ±10% | 1.5 A | - | Unshielded | 190mOhm Max | 56 @ 7.96MHz | 120MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
|
5252-RCFIXED IND 125UH 3.5A 80 MOHM TH |
4,528 |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 125 µH | ±20% | 3.5 A | - | Unshielded | 80mOhm Max | - | 2.25MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
