Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1250-9R0MFIXED IND 9UH 10A 22.5 MOHM SMD |
1,007 |
|
Datasheet | SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 9 µH | ±20% | 10 A | 18A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
5240-RCFIXED IND 40UH 3A 82 MOHM TH |
5,311 |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 40 µH | ±20% | 3 A | - | Unshielded | 82mOhm Max | - | 145MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|
8250-183K-RCFIXED IND 18MH 48MA 104 OHM TH |
978 |
|
Datasheet | 8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 48 mA | 10mA | Shielded | 104Ohm Max | 50 @ 79kHz | 720kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
8250-102K-RCFIXED IND 1MH 139MA 12.1 OHM TH |
866 |
|
Datasheet | 8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 139 mA | 40mA | Shielded | 12.1Ohm Max | 65 @ 790kHz | 4.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
8250-104K-RCFIXED IND 100MH 22MA 484 OHM TH |
663 |
|
Datasheet | 8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 22 mA | 3mA | Shielded | 484Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
8250-103K-RCFIXED IND 10MH 50MA 93.1 OHM TH |
526 |
|
Datasheet | 8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 50 mA | 14mA | Shielded | 93.1Ohm Max | 70 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
SRP1265CC-4R7MIND SMD 4.7UH 20A |
171 |
|
Datasheet | SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 20 A | 31A | Shielded | 9.5mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|

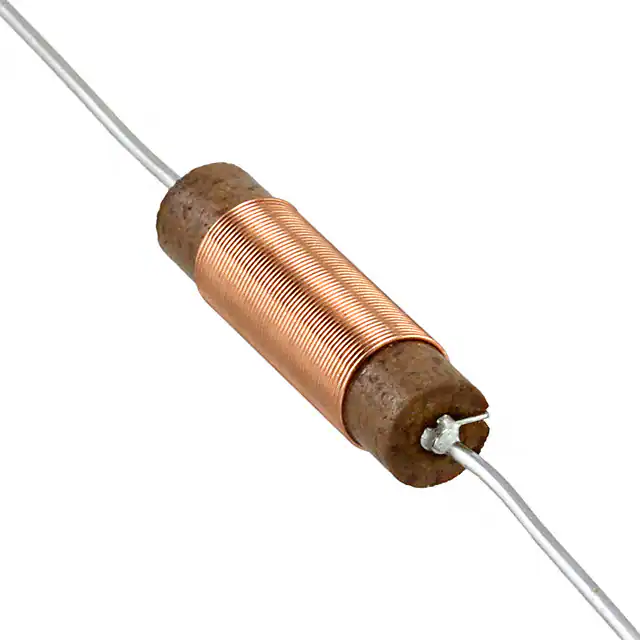

4612-RCFIXED IND 10UH 500MA 1.5 OHM TH |
1,777 |
|
Datasheet | 4600 | Axial | Bulk | Active | Wirewound | Phenolic | 10 µH | ±10% | 500 mA | - | Unshielded | 1.5Ohm Max | 36 @ 2.52MHz | 61MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
SRP6030CA-2R2MFIXED IND 2.2UH 10A 12.2MOHM SMD |
3,938 |
|
Datasheet | SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 10 A | 15.9A | Shielded | 12.2mOhm Max | - | 29MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
SRP6030CA-R33MFIXED IND 330NH 25A 2.5 MOHM SMD |
2,055 |
|
Datasheet | SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 25 A | 32A | Shielded | 2.5mOhm Max | - | 78MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
