Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

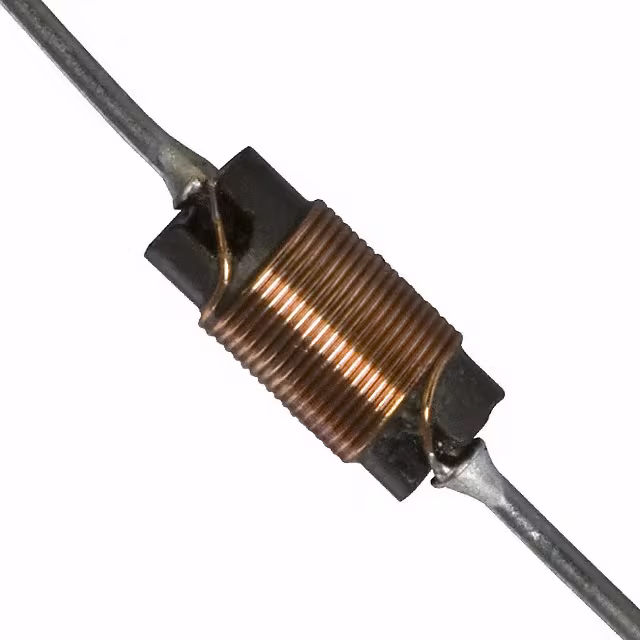

70F226AI-RCFIXED IND 2.2UH 1.132A 156MOHM |
3,766 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.2 µH | ±10% | 1.132 A | - | Unshielded | 156mOhm Max | 43 @ 7.9MHz | 87MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

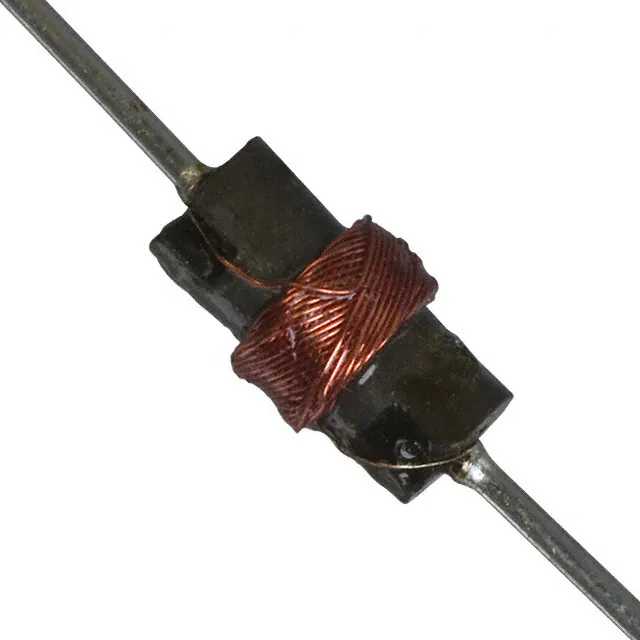

70F335AI-RCFIXED IND 33UH 208MA 2.76 OHM TH |
1,690 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 33 µH | ±5% | 208 mA | - | Unshielded | 2.76Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|

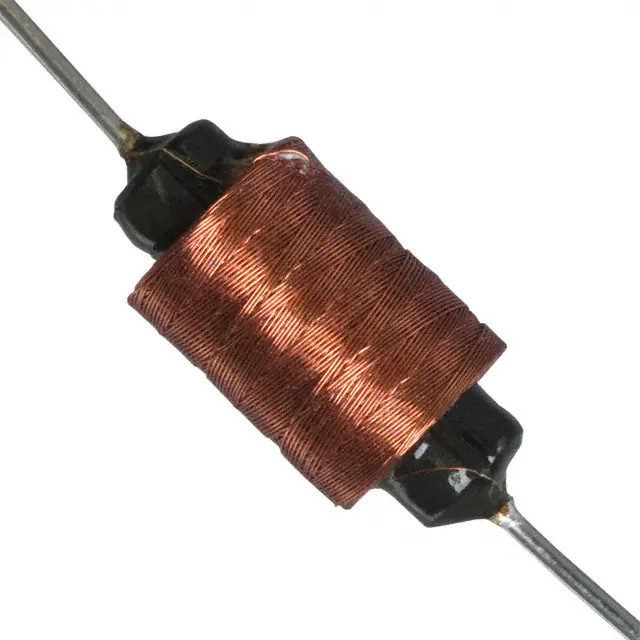

70F332AF-RCFIXED IND 33MH 43MA 134 OHM TH |
4,152 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 mH | ±5% | 43 mA | - | Unshielded | 134Ohm Max | 61 @ 79kHz | 232kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - |
|

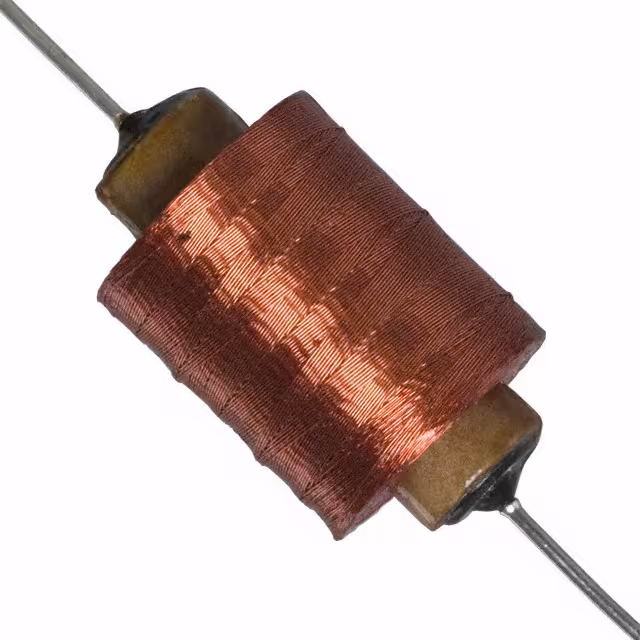

70F331AF-RCFIXED IND 330MH 34MA 540 OHM TH |
2,693 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 mH | ±5% | 34 mA | - | Unshielded | 540Ohm Max | 54 @ 25kHz | 60kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.580" Dia x 0.880" L (14.73mm x 22.35mm) | - |
|
70F336AI-RCFIXED IND 3.3UH 912MA 240MOHM TH |
4,007 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 3.3 µH | ±10% | 912 mA | - | Unshielded | 240mOhm Max | 40 @ 7.9MHz | 66MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|

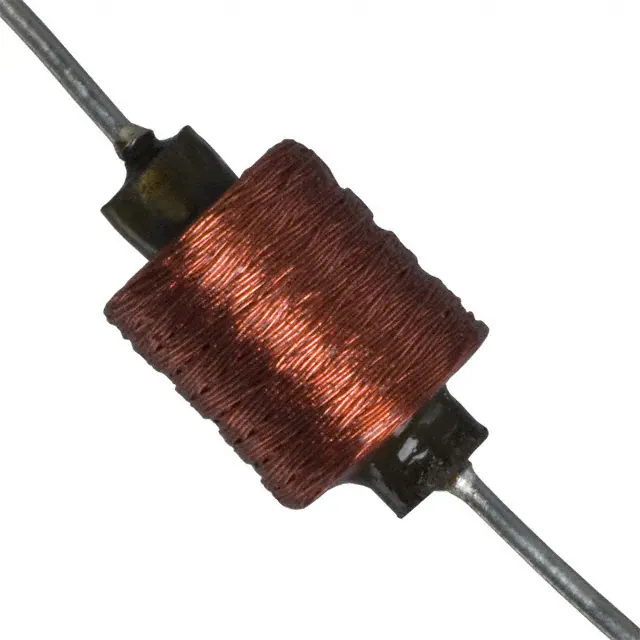

70F473AI-RCFIXED IND 4.7MH 48MA 64.8 OHM TH |
2,957 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 4.7 mH | ±5% | 48 mA | - | Unshielded | 64.8Ohm Max | 49 @ 250kHz | 680kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.280" Dia x 0.380" L (7.11mm x 9.65mm) | - |
|

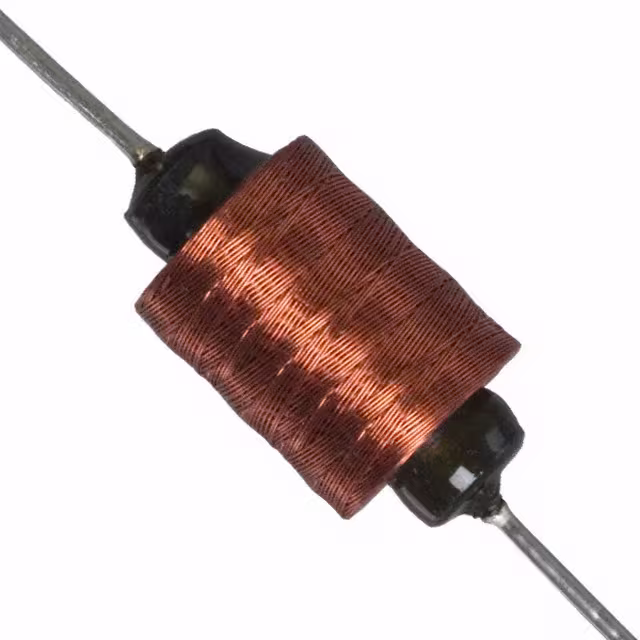

70F472AF-RCFIXED IND 47MH 38MA 168 OHM TH |
1,765 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±5% | 38 mA | - | Unshielded | 168Ohm Max | 57 @ 79kHz | 206kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.380" Dia x 0.630" L (9.65mm x 16.00mm) | - |
|

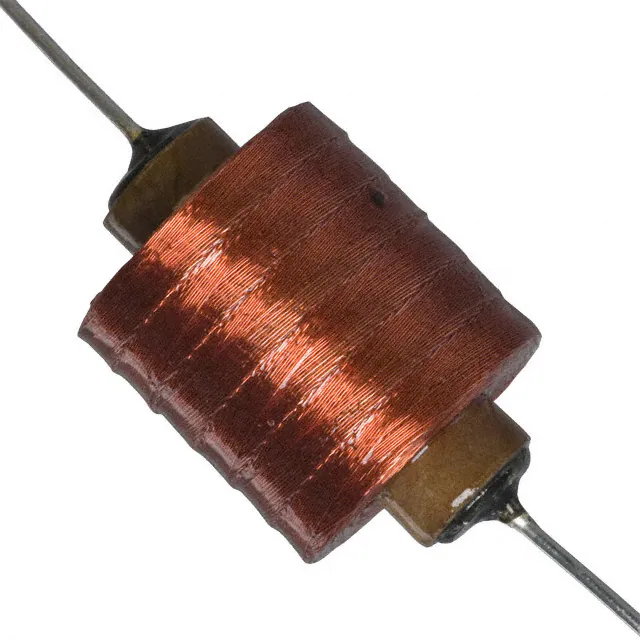

70F471AF-RCFIXED IND 470MH 30MA 704 OHM TH |
2,955 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 mH | ±5% | 30 mA | - | Unshielded | 704Ohm Max | 55 @ 25kHz | 54kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.610" Dia x 0.880" L (15.49mm x 22.35mm) | - |
|
70F476AI-RCFIXED IND 4.7UH 661MA 457MOHM TH |
4,478 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 4.7 µH | ±10% | 661 mA | - | Unshielded | 457mOhm Max | 43 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|

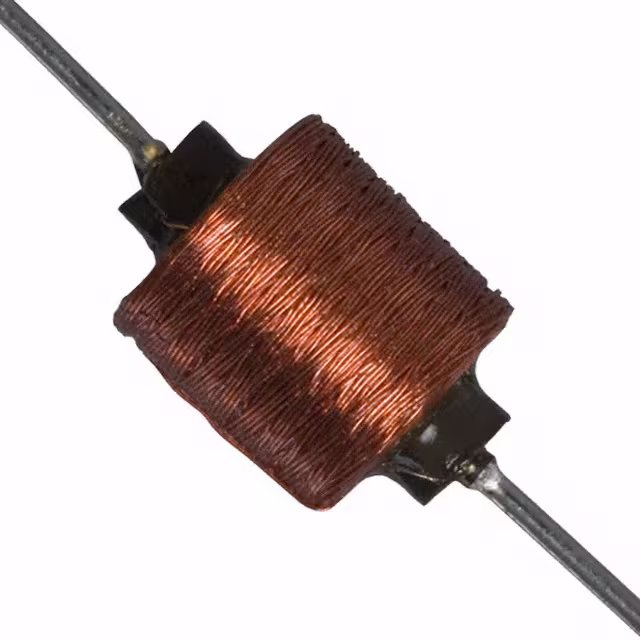

70F683AI-RCFIXED IND 6.8MH 43MA 78 OHM TH |
4,527 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 6.8 mH | ±5% | 43 mA | - | Unshielded | 78Ohm Max | 51 @ 250kHz | 640kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
