Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
79F6R8K-RCFIXED IND 6.8UH 175MA 2 OHM TH |
1,326 |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 175 mA | - | Unshielded | 2Ohm Max | 40 @ 7.9MHz | 26MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|

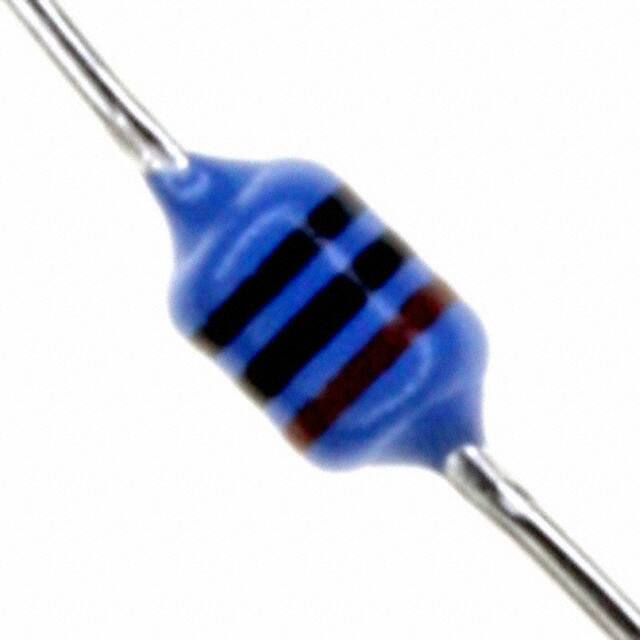

79F100K-TR-RCFIXED IND 10UH 160MA 2.4 OHM TH |
2,206 |
|
Datasheet | 79F | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 160 mA | - | Unshielded | 2.4Ohm Max | 40 @ 7.9MHz | 22MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79F180K-RCFIXED IND 18UH 140MA 3.1 OHM TH |
2,051 |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 140 mA | - | Unshielded | 3.1Ohm Max | 40 @ 2.5MHz | 17MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
70F106AI-RCFIXED IND 1UH 2.041A 48 MOHM TH |
2,641 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1 µH | ±20% | 2.041 A | - | Unshielded | 48mOhm Max | 41 @ 25MHz | 118MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F104AI-RCFIXED IND 100UH 139MA 7.68OHM TH |
2,053 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 100 µH | ±5% | 139 mA | - | Unshielded | 7.68Ohm Max | 25 @ 2.5MHz | 3.6MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F103AI-RCFIXED IND 1MH 79MA 24 OHM TH |
1,340 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1 mH | ±5% | 79 mA | - | Unshielded | 24Ohm Max | 30 @ 790kHz | 1.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.220" Dia x 0.250" L (5.59mm x 6.35mm) | - |
|

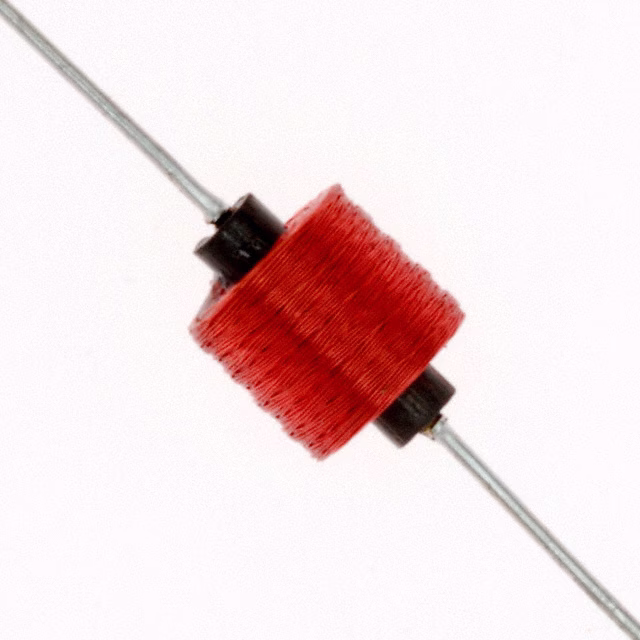

70F102AI-RCFIXED IND 10MH 38MA 101 OHM TH |
3,542 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 10 mH | ±5% | 38 mA | - | Unshielded | 101Ohm Max | 41 @ 250kHz | 520kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - |
|

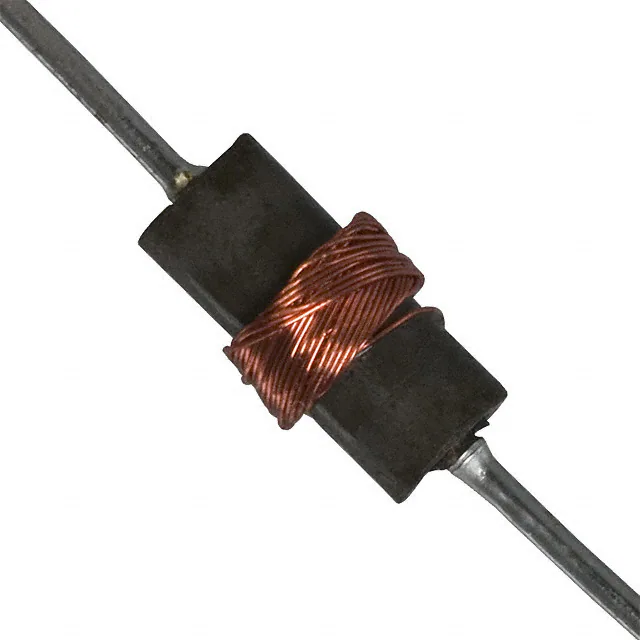

70F225AI-RCFIXED IND 22UH 229MA 2.28 OHM TH |
4,690 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 22 µH | ±5% | 229 mA | - | Unshielded | 2.28Ohm Max | 51 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

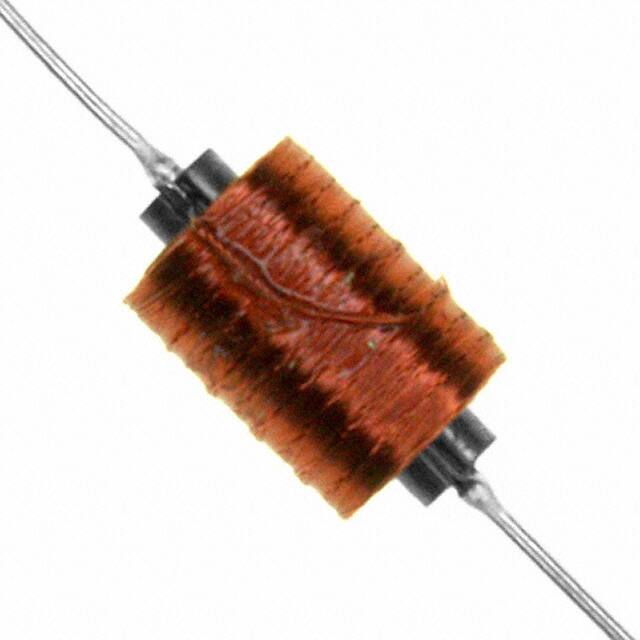

70F222AI-RCFIXED IND 22MH 41MA 144 OHM TH |
3,823 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 22 mH | ±5% | 41 mA | - | Unshielded | 144Ohm Max | 50 @ 79kHz | 270kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.330" Dia x 0.500" L (8.38mm x 12.70mm) | - |
|

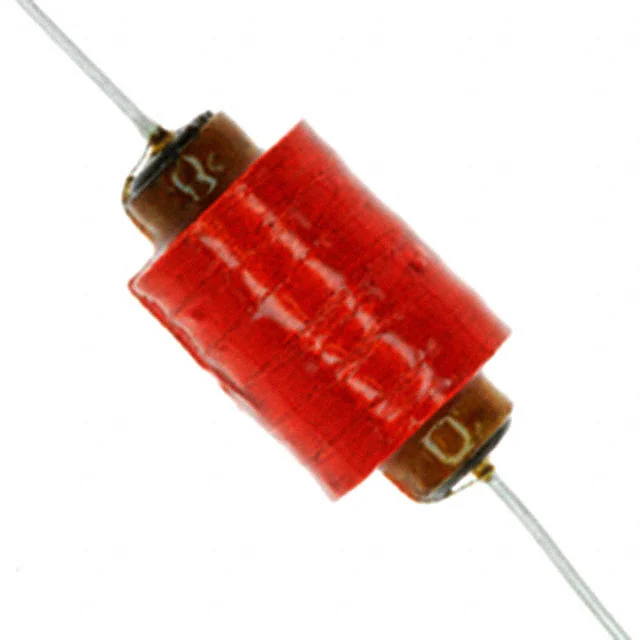

70F221AF-RCFIXED IND 220MH 39MA 424 OHM TH |
4,047 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 mH | ±5% | 39 mA | - | Unshielded | 424Ohm Max | 51 @ 25kHz | 70kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.540" Dia x 0.880" L (13.72mm x 22.35mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
