Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM0603-56NJFIXED IND 56NH 600MA 310MOHM SMD |
3,203 |
|
Datasheet | PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 600 mA | - | Unshielded | 310mOhm | 40 @ 200MHz | 1.9GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-68NJFIXED IND 68NH 600MA 1.7 OHM SMD |
3,404 |
|
Datasheet | PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 600 mA | - | Unshielded | 1.7Ohm | 40 @ 200MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-82NJFIXED IND 82NH 400MA 540MOHM SMD |
2,414 |
|
Datasheet | PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 540mOhm | 35 @ 150MHz | 1.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-R12JFIXED IND 120NH 300MA 650MOHM SM |
4,859 |
|
Datasheet | PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 300 mA | - | Unshielded | 650mOhm | 35 @ 150MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|

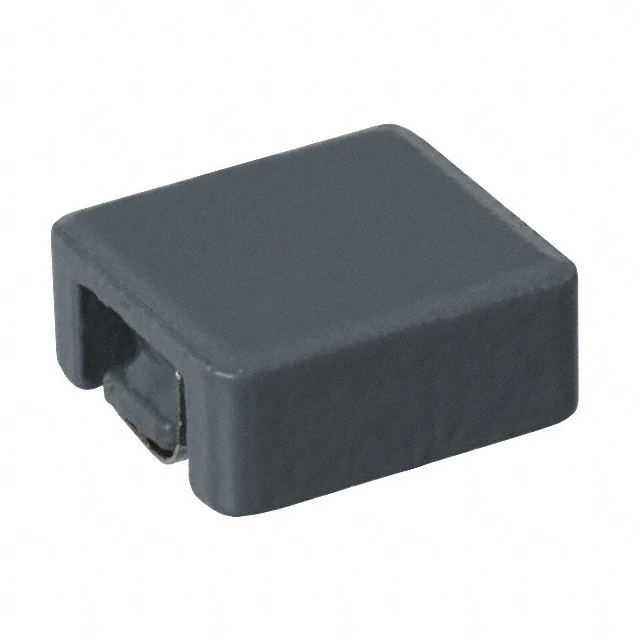

PM7232S-R22MFIXED IND 220NH 17A 1.7 MOHM SMD |
4,564 |
|
Datasheet | PM7232S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 nH | ±20% | 17 A | - | Shielded | 1.7mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
100217FIXED IND 6.8UH 1.3A 170 MOHM TH |
3,151 |
|
Datasheet | M | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 6.8 µH | ±10% | 1.3 A | - | Unshielded | 170mOhm Max | 70 @ 7.9MHz | 65MHz | - | - | 7.9 MHz | - | Through Hole | - | 0.250" Dia x 0.600" L (6.35mm x 15.24mm) | - |
|
PM1038S-R75MFIXED IND 750NH 20A 3.5 MOHM SMD |
3,354 |
|
Datasheet | PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 750 nH | ±20% | 20 A | - | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
2100HT-150-HFIXED IND 15UH 9.1A 14 MOHM TH |
3,726 |
|
Datasheet | 2100HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 15 µH | ±15% | 9.1 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2200HT-101-HFIXED IND 100UH 5.3A 61 MOHM TH |
3,567 |
|
Datasheet | 2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±15% | 5.3 A | - | Shielded | 61mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2200HT-220-HFIXED IND 22UH 9.3A 20 MOHM TH |
1,657 |
|
Datasheet | 2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 22 µH | ±15% | 9.3 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
