Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
77F6R8KFIXED IND 6.8UH 550MA 480MOHM TH |
4,193 |
|
Datasheet | 77F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 550 mA | - | Unshielded | 480mOhm Max | 75 @ 7.96MHz | 68MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
77F100KFIXED IND 10UH 500MA 580 MOHM TH |
4,376 |
|
Datasheet | 77F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 500 mA | - | Unshielded | 580mOhm Max | 85 @ 2.52MHz | 45MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
77F270KFIXED IND 27UH 390MA 940 MOHM TH |
4,300 |
|
Datasheet | 77F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 390 mA | - | Unshielded | 940mOhm Max | 55 @ 2.52MHz | 7.6MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
77F101JFIXED IND 100UH 275MA 1.8 OHM TH |
3,375 |
|
Datasheet | 77F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 275 mA | - | Unshielded | 1.8Ohm Max | 30 @ 796kHz | 4.8MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
77F221JFIXED IND 220UH 155MA 5.1 OHM TH |
2,974 |
|
Datasheet | 77F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 155 mA | - | Unshielded | 5.1Ohm Max | 70 @ 796kHz | 3MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
77F471JFIXED IND 470UH 126MA 7.7 OHM TH |
3,748 |
|
Datasheet | 77F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 126 mA | - | Unshielded | 7.7Ohm Max | 60 @ 796kHz | 2.25MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
77F102JFIXED IND 1MH 100MA 14 OHM TH |
4,816 |
|
Datasheet | 77F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 100 mA | - | Unshielded | 14Ohm Max | 50 @ 796kHz | 1.4MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
79FR18MFIXED IND 180NH 600MA 240MOHM TH |
3,835 |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 180 nH | ±20% | 600 mA | - | Unshielded | 240mOhm Max | 35 @ 25MHz | 300MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79FR33MFIXED IND 330NH 370MA 480MOHM TH |
3,730 |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 370 mA | - | Unshielded | 480mOhm Max | 35 @ 25MHz | 150MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|

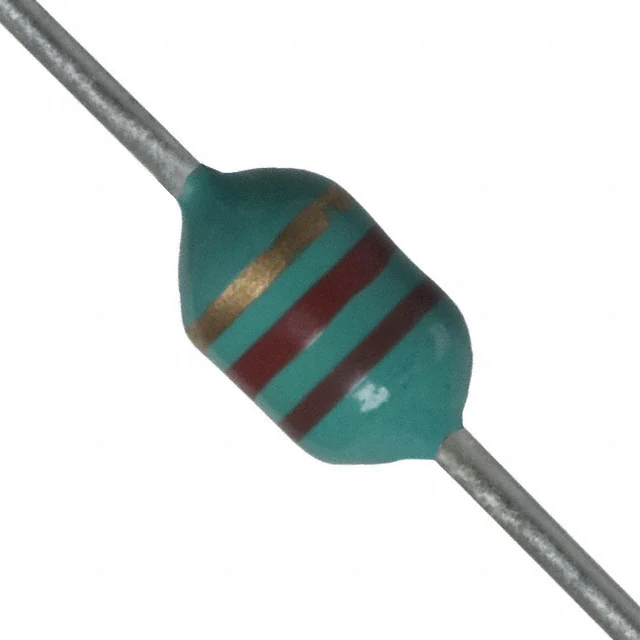

79F2R2KFIXED IND 2.2UH 230MA 1.2 OHM TH |
2,145 |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 230 mA | - | Unshielded | 1.2Ohm Max | 40 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
