Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78F1R2KFIXED IND 1.2UH 590MA 180MOHM TH |
1,289 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 590 mA | - | Unshielded | 180mOhm Max | 40 @ 7.9MHz | 165MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F1R5KFIXED IND 1.5UH 535MA 200MOHM TH |
2,902 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 535 mA | - | Unshielded | 200mOhm Max | 45 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F1R8KFIXED IND 1.8UH 455MA 250MOHM TH |
1,644 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 455 mA | - | Unshielded | 250mOhm Max | 50 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F2R2KFIXED IND 2.2UH 395MA 280MOHM TH |
2,513 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 395 mA | - | Unshielded | 280mOhm Max | 50 @ 7.9MHz | 110MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F2R7KFIXED IND 2.7UH 355MA 300MOHM TH |
2,635 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 355 mA | - | Unshielded | 300mOhm Max | 50 @ 7.9MHz | 95MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F3R3JFIXED IND 3.3UH 270MA 340MOHM TH |
4,638 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 270 mA | - | Unshielded | 340mOhm Max | 50 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F3R9JFIXED IND 3.9UH 250MA 320MOHM TH |
2,284 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 250 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

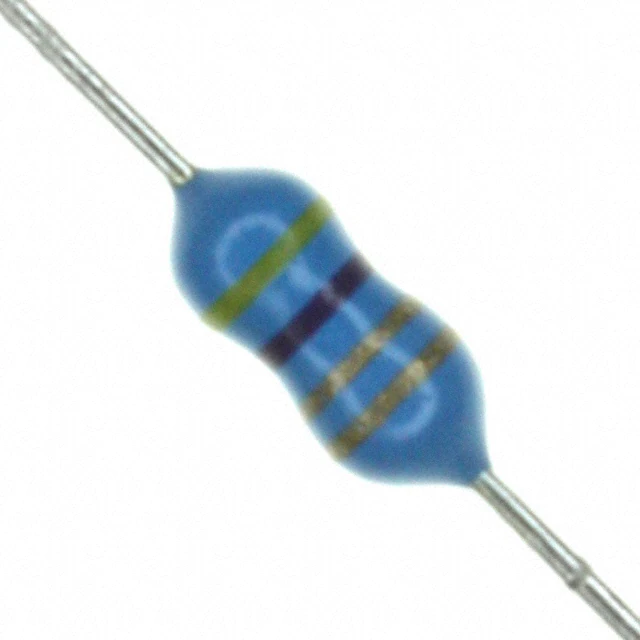

78F4R7JFIXED IND 4.7UH 230MA 350MOHM TH |
4,506 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 230 mA | - | Unshielded | 350mOhm Max | 45 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F5R6JFIXED IND 5.6UH 185MA 400MOHM TH |
2,680 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 185 mA | - | Unshielded | 400mOhm Max | 45 @ 7.9MHz | 40MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F6R8JFIXED IND 6.8UH 175MA 450MOHM TH |
2,881 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 175 mA | - | Unshielded | 450mOhm Max | 40 @ 7.9MHz | 30MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
