Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78F820JFIXED IND 82UH 132MA 3.2 OHM TH |
3,197 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 132 mA | - | Unshielded | 3.2Ohm Max | 60 @ 2.5MHz | 6MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F101JFIXED IND 100UH 125MA 3.5 OHM TH |
3,370 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 125 mA | - | Unshielded | 3.5Ohm Max | 60 @ 2.5MHz | 5.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F221JFIXED IND 220UH 76MA 5.7 OHM TH |
2,261 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 76 mA | - | Unshielded | 5.7Ohm Max | 60 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F271JFIXED IND 270UH 70MA 6.5 OHM TH |
4,194 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 70 mA | - | Unshielded | 6.5Ohm Max | 60 @ 790kHz | 3.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F391JFIXED IND 390UH 60MA 10.5 OHM TH |
1,187 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 60 mA | - | Unshielded | 10.5Ohm Max | 60 @ 790kHz | 2.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F471JFIXED IND 470UH 53MA 11.6 OHM TH |
4,355 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 53 mA | - | Unshielded | 11.6Ohm Max | 60 @ 790kHz | 2.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

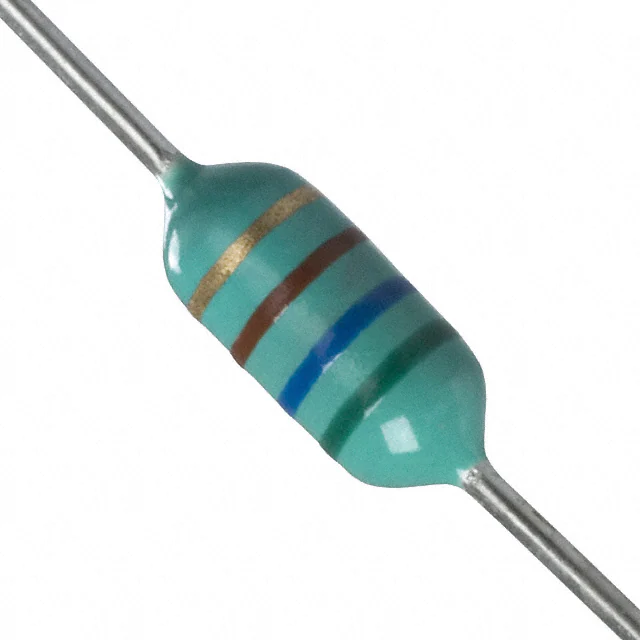

78F561JFIXED IND 560UH 51MA 13 OHM TH |
1,213 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 51 mA | - | Unshielded | 13Ohm Max | 60 @ 790kHz | 2.3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F681JFIXED IND 680UH 45MA 18 OHM TH |
4,003 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 45 mA | - | Unshielded | 18Ohm Max | 60 @ 790kHz | 2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F821JFIXED IND 820UH 43MA 23 OHM TH |
3,374 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 43 mA | - | Unshielded | 23Ohm Max | 60 @ 790kHz | 1.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F102JFIXED IND 1MH 41MA 26 OHM TH |
3,863 |
|
Datasheet | 78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 41 mA | - | Unshielded | 26Ohm Max | 60 @ 790kHz | 1.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
