Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-5GM470MFIXED IND 47UH 390MA 930MOHM SMD |
4,771 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 390 mA | - | Shielded | 930mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|

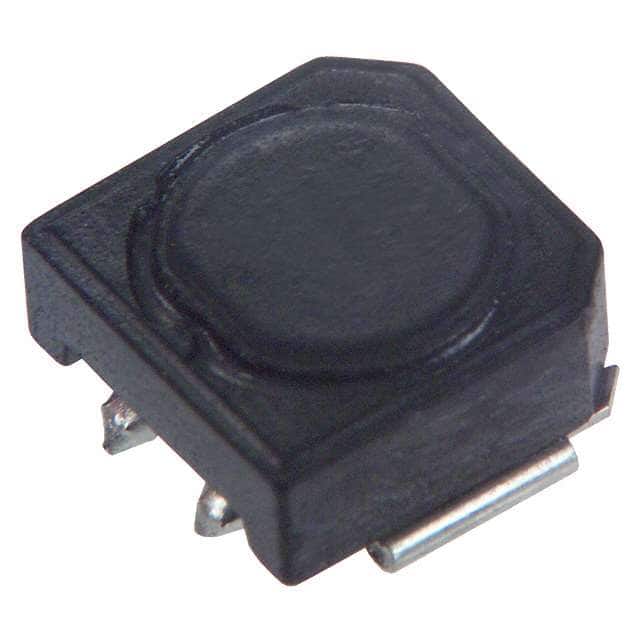

ELL-6SH681MFIXED IND 680UH 160MA 4.3OHM SMD |
2,207 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 µH | ±20% | 160 mA | - | Shielded | 4.3Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
ETQ-A17B330FIXED IND 33UH 6A 17 MOHM TH |
4,949 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 6 A | - | Unshielded | 17mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.709" (18.00mm) |
|
|
ETQ-A17B220FIXED IND 22UH 8A 17 MOHM TH |
2,253 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 8 A | - | Unshielded | 17mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.709" (18.00mm) |
|
|
ETQ-A15B220FIXED IND 22UH 7A 15 MOHM TH |
3,424 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 7 A | - | Unshielded | 15mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.630" (16.00mm) |
|
|
ETQ-A15B330FIXED IND 33UH 4A 15 MOHM TH |
4,112 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 4 A | - | Unshielded | 15mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.630" (16.00mm) |
|
ELC-06D2R2EFIXED IND 2.2UH 3.4A 26 MOHM TH |
3,310 |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 2.2 µH | ±20% | 3.4 A | - | Unshielded | 26mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D2R7EFIXED IND 2.7UH 3.2A 28 MOHM TH |
3,358 |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 2.7 µH | ±20% | 3.2 A | - | Unshielded | 28mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D3R3EFIXED IND 3.3UH 3A 27 MOHM TH |
1,859 |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 3.3 µH | ±20% | 3 A | - | Unshielded | 27mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D4R7EFIXED IND 4.7UH 2.6A 33 MOHM TH |
2,221 |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 4.7 µH | ±20% | 2.6 A | - | Unshielded | 33mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
