Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-3FN330MFIXED IND 33UH 260MA 1.9 OHM SMD |
3,764 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 260 mA | - | Unshielded | 1.9Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN470MFIXED IND 47UH 230MA 2.45OHM SMD |
2,236 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 230 mA | - | Unshielded | 2.45Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN680MFIXED IND 68UH 170MA 4.2 OHM SMD |
2,886 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±20% | 170 mA | - | Unshielded | 4.2Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
ELC-3GN330MFIXED IND 33UH 280MA 1.4 OHM SMD |
2,723 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 280 mA | - | Unshielded | 1.4Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|

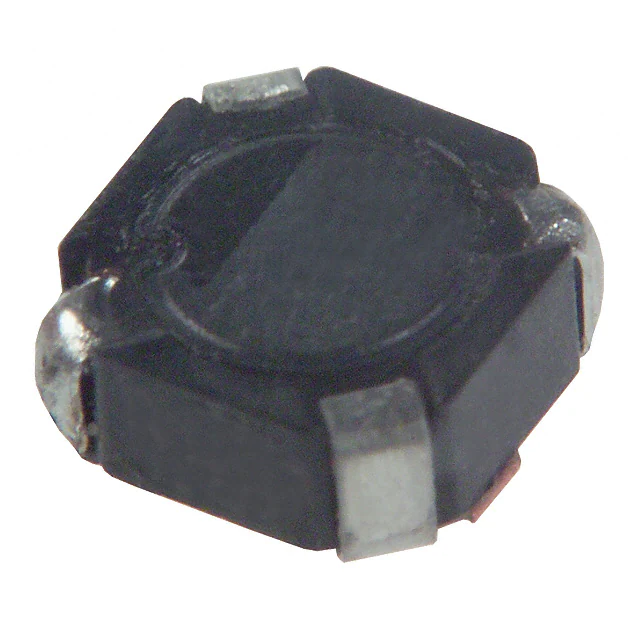

ELL-4GM3R6NFIXED IND 3.6UH 950MA 100MOHM SM |
3,957 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.6 µH | ±30% | 950 mA | - | Shielded | 100mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
ELL-4GM4R7NFIXED IND 4.7UH 800MA 120MOHM SM |
2,618 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 800 mA | - | Shielded | 120mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
ELL-5GM2R2NFIXED IND 2.2UH 1.6A 53 MOHM SMD |
4,218 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.6 A | - | Shielded | 53mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|
|
ELL-5GM4R7NFIXED IND 4.7UH 1.1A 92 MOHM SMD |
4,239 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.1 A | - | Shielded | 92mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|
|
ELL-5GM8R2NFIXED IND 8.2UH 850MA 140MOHM SM |
3,539 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 8.2 µH | ±30% | 850 mA | - | Shielded | 140mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|
|
ELL-5GM220MFIXED IND 22UH 500MA 380MOHM SMD |
3,980 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 500 mA | - | Shielded | 380mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
