Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-6UH101MFIXED IND 100UH 600MA 360MOHM SM |
2,686 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 600 mA | - | Shielded | 360mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH121MFIXED IND 120UH 580MA 480MOHM SM |
1,601 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±20% | 580 mA | - | Shielded | 480mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH391MFIXED IND 390UH 300MA 1.5OHM SMD |
2,948 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±20% | 300 mA | - | Shielded | 1.5Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH561MFIXED IND 560UH 260MA 2.53OHM SM |
4,938 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 µH | ±20% | 260 mA | - | Shielded | 2.53Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH821MFIXED IND 820UH 200MA 3.14OHM SM |
2,847 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 820 µH | ±20% | 200 mA | - | Shielded | 3.14Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|

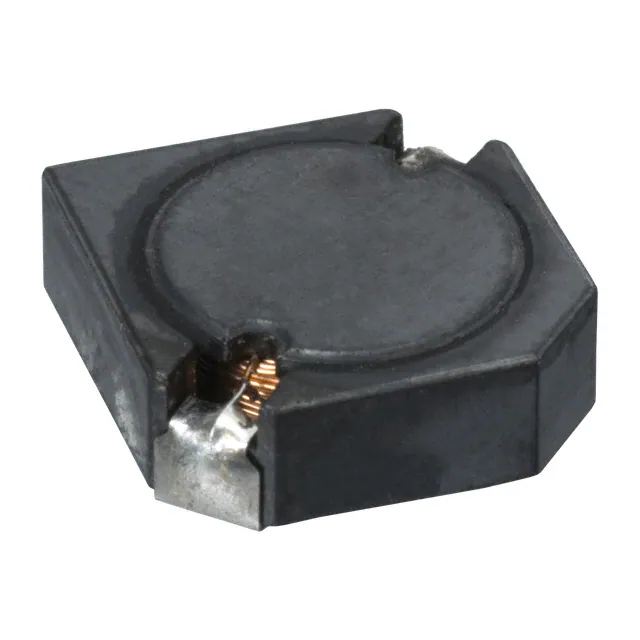

ELL-CTV1R2NFIXED IND 1.2UH 6.5A 4.6MOHM SMD |
2,421 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 6.5 A | - | Shielded | 4.6mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV2R7NFIXED IND 2.7UH 5.7A 7 MOHM SMD |
2,566 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 5.7 A | - | Shielded | 7mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV3R9NFIXED IND 3.9UH 5.6A 8.5MOHM SMD |
4,565 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 5.6 A | - | Shielded | 8.5mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV150MFIXED IND 15UH 3.1A 25 MOHM SMD |
2,127 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.1 A | - | Shielded | 25mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
ELL-4GM470MFIXED IND 47UH 260MA 1.05OHM SMD |
2,883 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 260 mA | - | Shielded | 1.05Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
