Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
197C15FIXED IND 1.35MH 15A 0.029OHM SM |
2,775 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.35 mH | ±15% | 15 A | - | Unshielded | 29mOhm | - | 289.05kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|
193MFIXED IND 10H 300MA 63 OHM CHASS |
4,887 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 300 mA | - | Unshielded | 63Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|

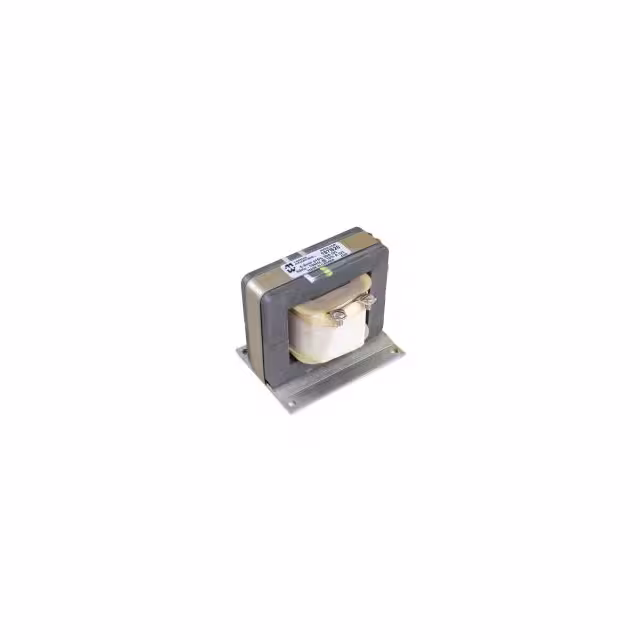

197B20FIXED IND 800UH 20A 0.023OHM SMD |
3,113 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 800 µH | ±15% | 20 A | - | Unshielded | 23mOhm | - | 333kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|
|
193PFIXED IND 5H 500MA 26 OHM CHASS |
3,178 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 5 H | ±15% | 500 mA | - | Unshielded | 26Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|
197E15FIXED IND 3.5MH 15A 0.08OHM SMD |
3,902 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 3.5 mH | ±15% | 15 A | - | Unshielded | 80mOhm | - | 152.9kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
197D20FIXED IND 2MH 20A 0.049OHM SMD |
1,174 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 2 mH | ±15% | 20 A | - | Unshielded | 49mOhm | - | 218kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|

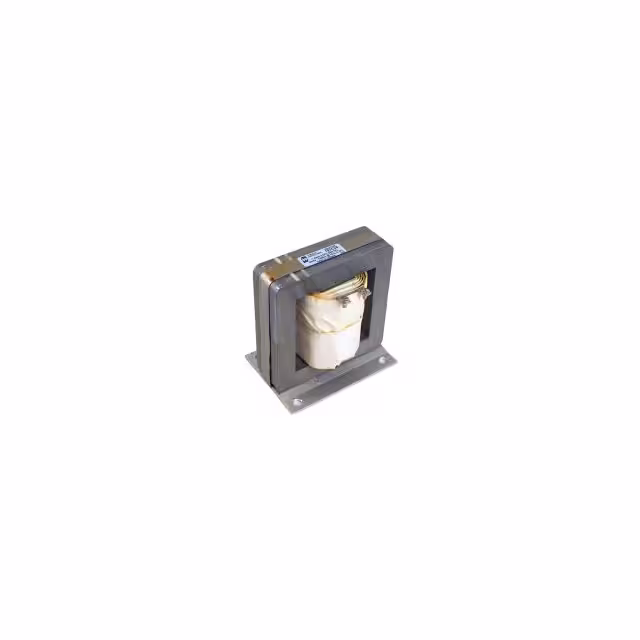

197C25FIXED IND 1.4MH 25A 0.03OHM SMD |
4,545 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.4 mH | ±15% | 25 A | - | Unshielded | 30mOhm | - | 272.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|

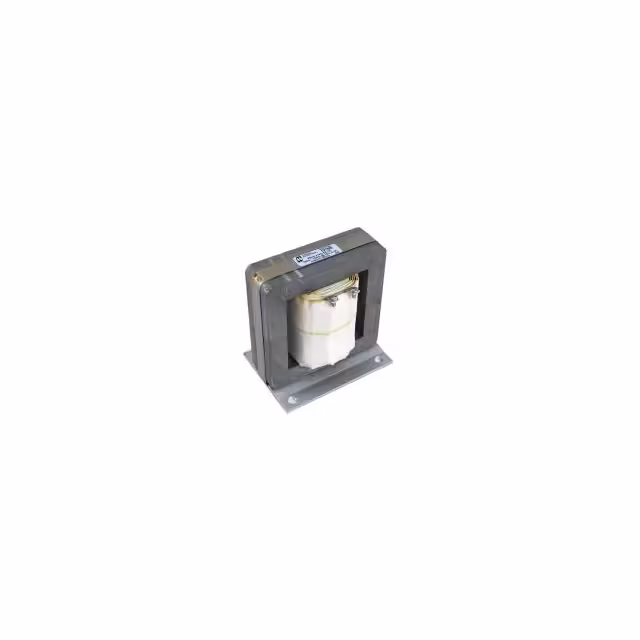

197M5FIXED IND 25MH 5A 0.403OHM SMD |
4,193 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 25 mH | ±15% | 5 A | - | Unshielded | 403mOhm | - | 72.4kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
|
193LPFIXED IND 5H 300MA 55 OHM CHASS |
1,163 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Box | Active | Wirewound | - | 5 H | ±15% | 300 mA | - | Unshielded | 55Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
|
|
193MPFIXED IND 10H 300MA 63 OHM CHASS |
1,295 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Box | Active | Wirewound | - | 10 H | ±15% | 300 mA | - | Unshielded | 63Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
|
195D50FIXED IND 1.4MH 50A 5 MOHM CHASS |
1,986 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 1.4 mH | ±15% | 50 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.380" L x 5.500" W (162.05mm x 139.70mm) | 5.380" (136.65mm) |
|
CH-100FIXED IND 500UH 100A 5 MOHM CHAS |
2,327 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 500 µH | - | 100 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 6.252" W (161.90mm x 158.80mm) | 5.374" (136.50mm) |
|
|
195E75FIXED IND 2.5MH 75A 8 MOHM CHASS |
2,059 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 75 A | - | Unshielded | 8mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.000" L x 6.630" W (152.40mm x 168.40mm) | 5.160" (131.06mm) |
|
|
195M20FIXED IND 20MH 20A 75 MOHM CHASS |
1,045 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 20 mH | ±15% | 20 A | - | Unshielded | 75mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.000" L x 7.500" W (152.40mm x 190.50mm) | 5.000" (127.00mm) |
|
P0250.103NLFIXED IND 10UH 4.3A 31 MOHM SMD |
2,312 |
|
Datasheet | P0250NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±15% | 4.3 A | 10A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
 MHQ Series.jpg "MHQ0402PSA3N7BT000")
|
MHQ0402PSA3N7BT000FIXED IND 3.7NH 200MA 750MOHM SM |
3,509 |
|
Datasheet | MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.7 nH | ±0.1nH | 200 mA | - | Shielded | 750mOhm Max | 10 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
.jpg "LQG15WZ7N5H02D")
|
LQG15WZ7N5H02DFIXED IND 7.5NH 600MA 0.16OHM SM |
2,719 |
|
Datasheet | LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 7.5 nH | ±3% | 600 mA | - | Unshielded | 160mOhm Max | - | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
MHQ0402PSA1N4BT000FIXED IND 1.4NH 400MA 300MOHM SM |
2,094 |
|
Datasheet | MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.4 nH | ±0.1nH | 400 mA | - | Shielded | 300mOhm Max | 10 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MHQ0402PSA1N2BT000FIXED IND 1.2NH 500MA 200MOHM SM |
4,295 |
|
Datasheet | MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.2 nH | ±0.1nH | 500 mA | - | Shielded | 200mOhm Max | 10 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MHQ0402PSA2N1BT000FIXED IND 2.1NH 400MA 400MOHM SM |
2,385 |
|
Datasheet | MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.1 nH | ±0.1nH | 400 mA | - | Shielded | 400mOhm Max | 10 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
