Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
155GFIXED IND 7H 40MA 340 OHM CHASS |
1,114 |
|
Datasheet | 155 | Nonstandard | Bulk | Active | - | - | 7 H | ±15% | 40 mA | - | Unshielded | 340Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.380" W (60.45mm x 35.05mm) | 1.380" (35.05mm) |
|
156LFIXED IND 5H 75MA 135 OHM CHASS |
4,393 |
|
Datasheet | 156 | Nonstandard | Bulk | Active | - | - | 5 H | ±15% | 75 mA | - | Unshielded | 135Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
|
157MFIXED IND 8H 100MA 259 OHM CHASS |
3,833 |
|
Datasheet | 157 | Nonstandard | Bulk | Active | - | - | 8 H | ±15% | 100 mA | - | Unshielded | 259Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
CTX20-16-52-RFIXED IND 20UH 31.5A 3.4 MOHM TH |
4,471 |
|
Datasheet | CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 31.5 A | 29.5A | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.323" Dia x 1.102" W (59.00mm x 28.00mm) | - |
|
153EFIXED IND 7H 25MA 770 OHM CHASS |
3,887 |
|
Datasheet | 153 | Nonstandard | Bulk | Active | - | - | 7 H | ±15% | 25 mA | - | Unshielded | 770Ohm | - | - | - | - | - | - | Chassis Mount | - | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) |
|
1539M28FIXED IND 500UH 6.5A 85 MOHM TH |
1,020 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 6.5 A | - | Unshielded | 85mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
|
1539M25FIXED IND 5MH 1.5A 1.08 OHM TH |
1,212 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 mH | ±10% | 1.5 A | - | Unshielded | 1.08Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.110" (28.19mm) |
|
|
1539M30FIXED IND 2.5MH 2.8A 464 MOHM TH |
2,821 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.5 mH | ±10% | 2.8 A | - | Unshielded | 464mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
|
1539M29FIXED IND 1MH 4.4A 183 MOHM TH |
2,169 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 4.4 A | - | Unshielded | 183mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
158TFIXED IND 1H 300MA 40 OHM CHASS |
2,918 |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 1 H | ±15% | 300 mA | - | Unshielded | 40Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|

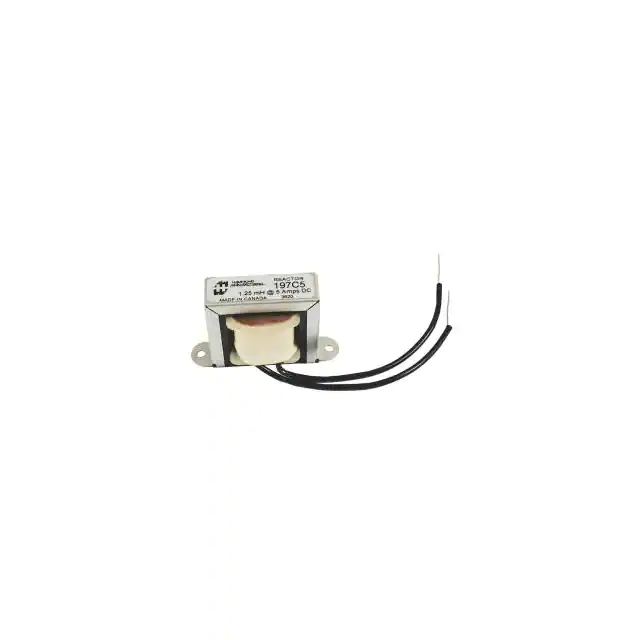

197C5FIXED IND 1.25MH 5A 0.126OHM TH |
4,441 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.25 mH | ±15% | 5 A | - | Unshielded | 126mOhm | - | 314.9kHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.600" W (82.55mm x 40.64mm) | 2.058" (52.27mm) |
|
|
158SFIXED IND 1.5H 250MA 60 OHM CHAS |
4,664 |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 1.5 H | ±15% | 250 mA | - | Unshielded | 60Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|

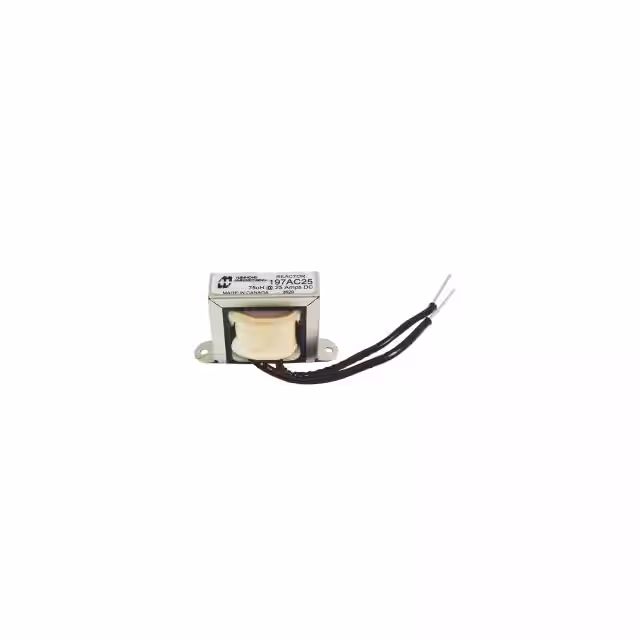

197AC25FIXED IND 75UH 25A 0.018OHM TH |
2,147 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 75 µH | ±15% | 25 A | - | Unshielded | 18mOhm | - | 272.3kHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.600" W (82.55mm x 40.64mm) | 2.058" (52.27mm) |
|
|
158LFIXED IND 15H 75MA 411 OHM CHASS |
3,813 |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 15 H | ±15% | 75 mA | - | Unshielded | 411Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|

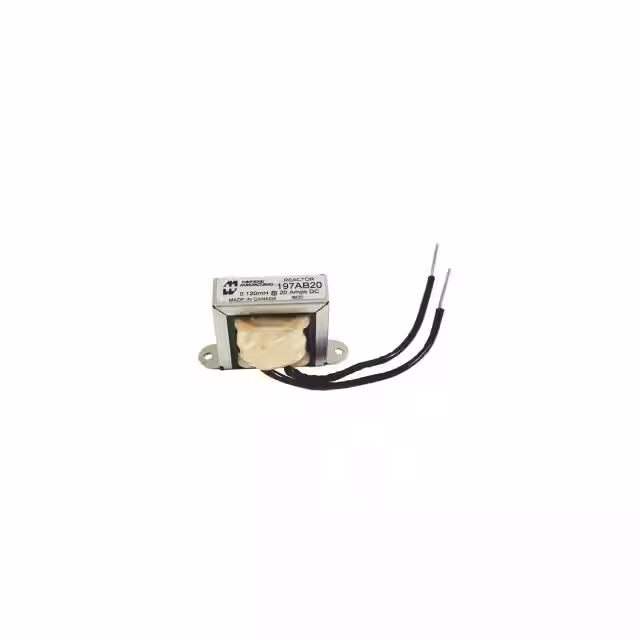

197AB20FIXED IND 120UH 20A 0.025OHM TH |
4,410 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 120 µH | ±15% | 20 A | - | Unshielded | 25mOhm | - | 1.25MHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.650" W (82.55mm x 41.91mm) | 2.058" (52.27mm) |
|

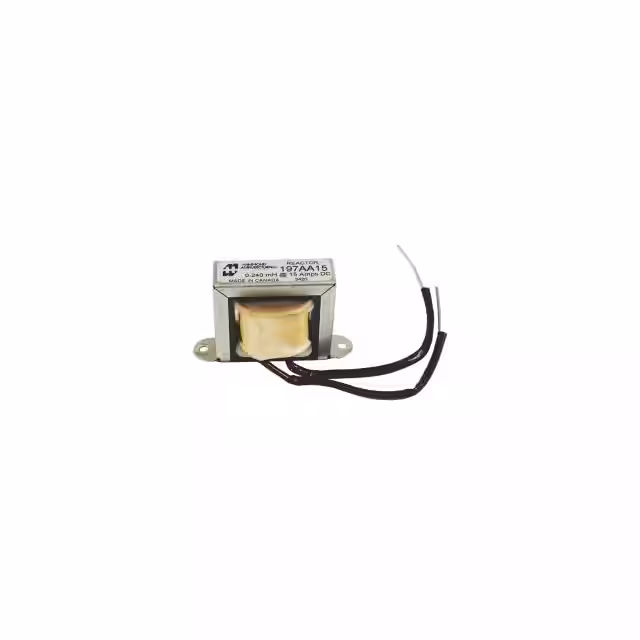

197AA15FIXED IND 240UH 15A 0.038OHM TH |
4,073 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 240 µH | ±15% | 15 A | - | Unshielded | 38mOhm | - | 739.5kHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.600" W (82.55mm x 40.64mm) | 2.058" (52.27mm) |
|

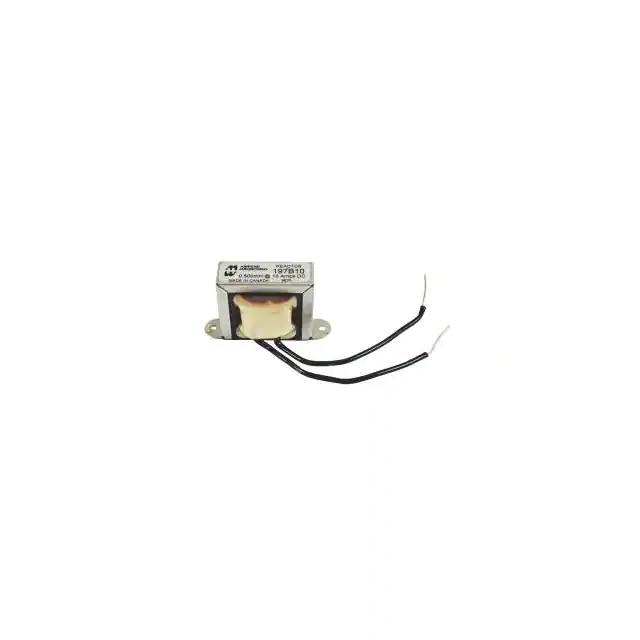

197B10FIXED IND 500UH 10A 0.067OHM TH |
3,929 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 500 µH | ±15% | 10 A | - | Unshielded | 67mOhm | - | 471.6kHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.600" W (82.55mm x 40.64mm) | 2.058" (52.27mm) |
|
|
153MFIXED IND 600MH 100MA 86 OHM |
1,954 |
|
Datasheet | 153 | Nonstandard | Bulk | Active | - | - | 600 mH | ±15% | 100 mA | - | Unshielded | 86Ohm | - | - | - | - | - | - | Chassis Mount | - | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) |
|
|
153LFIXED IND 900MH 75MA 125 OHM |
2,424 |
|
Datasheet | 153 | Nonstandard | Bulk | Active | - | - | 900 mH | ±15% | 75 mA | - | Unshielded | 125Ohm | - | - | - | - | - | - | Chassis Mount | - | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) |
|
|
157RFIXED IND 2H 200MA 57 OHM CHASS |
2,608 |
|
Datasheet | 157 | Nonstandard | Bulk | Active | - | - | 2 H | ±15% | 200 mA | - | Unshielded | 57Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
