Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
157JFIXED IND 10H 65MA 205 OHM CHASS |
3,336 |
|
Datasheet | 157 | Nonstandard | Bulk | Active | - | - | 10 H | ±15% | 65 mA | - | Unshielded | 205Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
|
157QFIXED IND 3.5H 150MA 98 OHM CHAS |
4,407 |
|
Datasheet | 157 | Nonstandard | Bulk | Active | - | - | 3.5 H | ±15% | 150 mA | - | Unshielded | 98Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
194FFIXED IND 5H 120MA CHAS MNT |
3,029 |
|
Datasheet | 194 | - | Bulk | Active | - | - | 5 H | - | 120 mA | - | - | - | - | - | - | - | - | - | Chassis Mount | - | 2.573" L x 2.188" W (65.35mm x 55.58mm) | 2.625" (66.68mm) |
|
|
157GFIXED IND 30H 40MA 595 OHM CHASS |
4,995 |
|
Datasheet | 157 | Nonstandard | Bulk | Active | - | - | 30 H | ±15% | 40 mA | - | Unshielded | 595Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
159QFIXED IND 7H 150MA 100 OHM CHASS |
2,814 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 7 H | ±15% | 150 mA | - | Unshielded | 100Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
CH-2FIXED IND 70MH 2A 900 MOHM CHASS |
2,088 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 70 mH | - | 2 A | - | Unshielded | 900mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.374" L x 2.752" W (85.70mm x 69.90mm) | 2.874" (73.00mm) |
|
|
159MFIXED IND 15H 100MA 256 OHM CHAS |
3,027 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 15 H | ±15% | 100 mA | - | Unshielded | 256Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
194EFIXED IND 30H 100MA 517.2 OHM |
4,925 |
|
Datasheet | 194 | Nonstandard | Box | Active | - | - | 30 H | ±15% | 100 mA | - | Unshielded | 517.2Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.000" L x 2.085" W (101.60mm x 52.96mm) | 2.620" (66.55mm) |
|
|
194DFIXED IND 5H 150MA 107.2 OHM |
1,245 |
|
Datasheet | 194 | Nonstandard | Box | Active | - | - | 5 H | ±15% | 150 mA | - | Unshielded | 107.2Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.188" L x 2.447" W (55.58mm x 62.15mm) | 2.625" (66.68mm) |
|
|
194CFIXED IND 40H 50MA 420.2 OHM |
2,539 |
|
Datasheet | 194 | Nonstandard | Box | Active | - | - | 40 H | ±15% | 50 mA | - | Unshielded | 420.2Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.500" L x 2.781" W (63.50mm x 70.64mm) | 3.000" (76.20mm) |
|

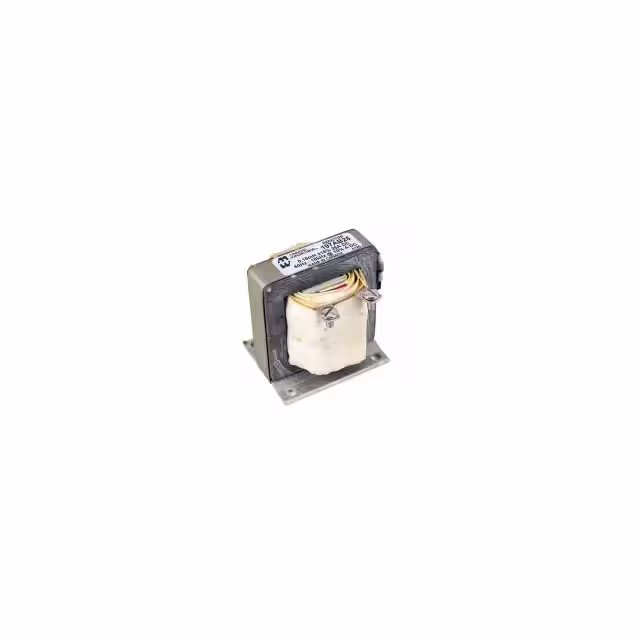

197AB25FIXED IND 150UH 25A 0.01OHM SMD |
4,921 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 150 µH | ±15% | 25 A | - | Unshielded | 10mOhm | - | 1.45MHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|

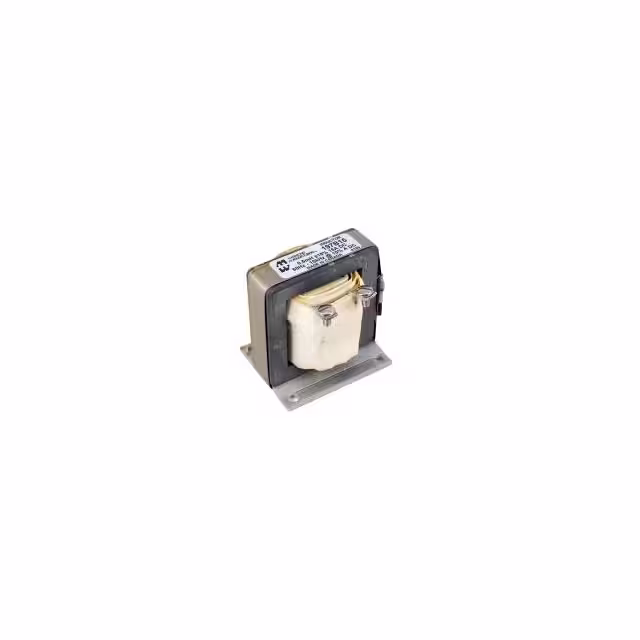

197B15FIXED IND 500UH 15A 0.039OHM SMD |
3,986 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 500 µH | ±15% | 15 A | - | Unshielded | 39mOhm | - | 812.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|
197AA20FIXED IND 250UH 20A 0.014OHM SMD |
4,170 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 250 µH | ±15% | 20 A | - | Unshielded | 14mOhm | - | 1.19MHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.050" L x 2.500" W (77.47mm x 63.50mm) | 3.376" (85.75mm) |
|

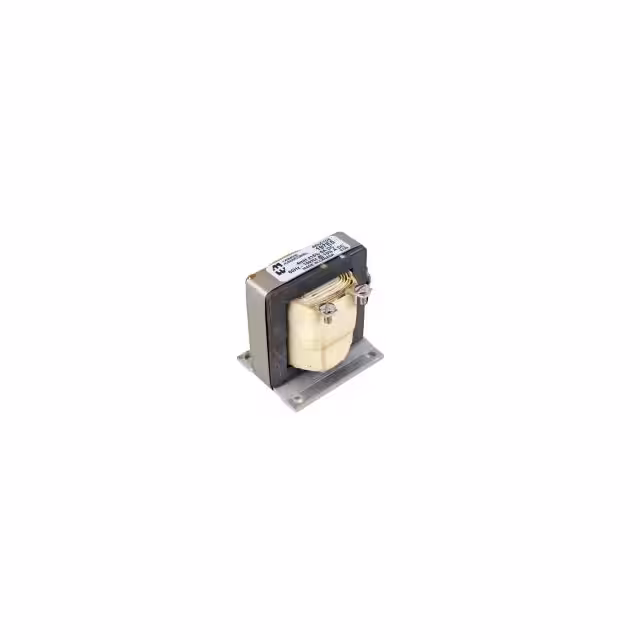

197E5FIXED IND 4MH 5A 0.232OHM SMD |
3,891 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 4 mH | ±15% | 5 A | - | Unshielded | 232mOhm | - | 250.5kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|
193KFIXED IND 2.6H 300MA 21 OHM CHAS |
1,946 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 2.6 H | ±15% | 300 mA | - | Unshielded | 21Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.125" (79.38mm) |
|
|
193GFIXED IND 10H 150MA 102 OHM CHAS |
4,782 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 150 mA | - | Unshielded | 102Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 3.130" W (82.55mm x 79.50mm) | 3.810" (96.77mm) |
|
|
193NFIXED IND 3H 500MA 35 OHM CHASS |
1,057 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 3 H | ±15% | 500 mA | - | Unshielded | 35Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
|
193LFIXED IND 5H 300MA 57 OHM CHASS |
2,448 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 5 H | ±15% | 300 mA | - | Unshielded | 57Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|

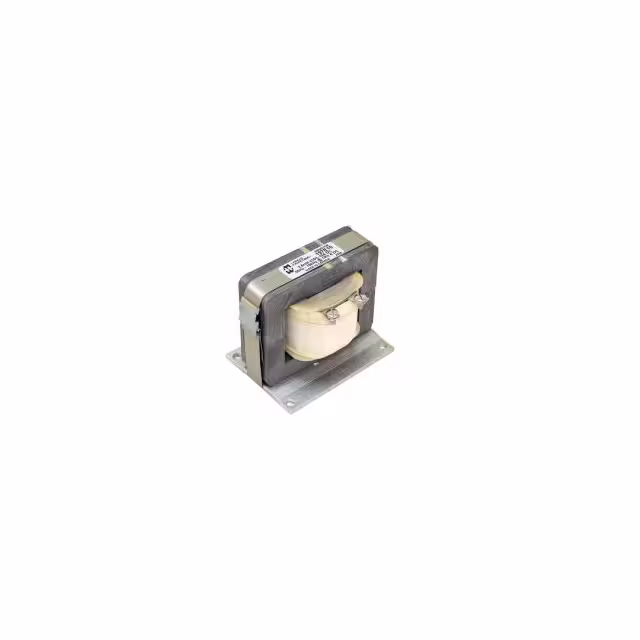

197E10FIXED IND 3.5MH 10A 0.096OHM SMD |
4,068 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 3.5 mH | ±15% | 10 A | - | Unshielded | 96mOhm | - | 129.55kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|

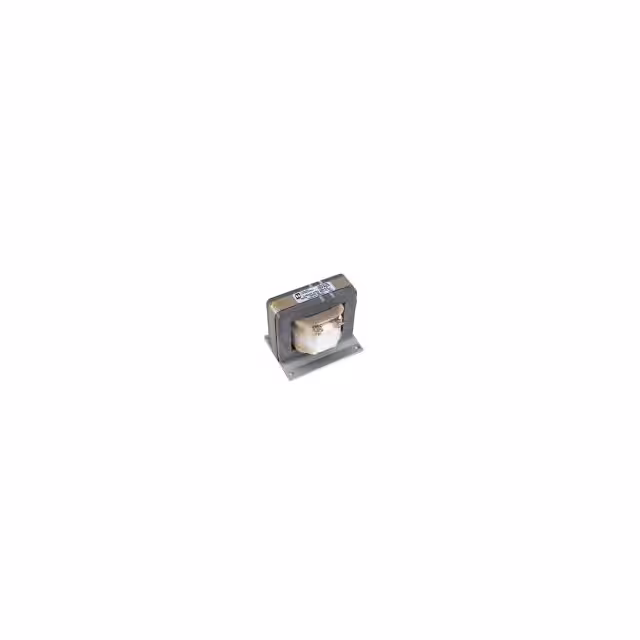

197A25FIXED IND 480UH 25A 0.011OHM SMD |
3,995 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 480 µH | ±15% | 25 A | - | Unshielded | 11mOhm | - | 504kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.950" (100.33mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
