Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

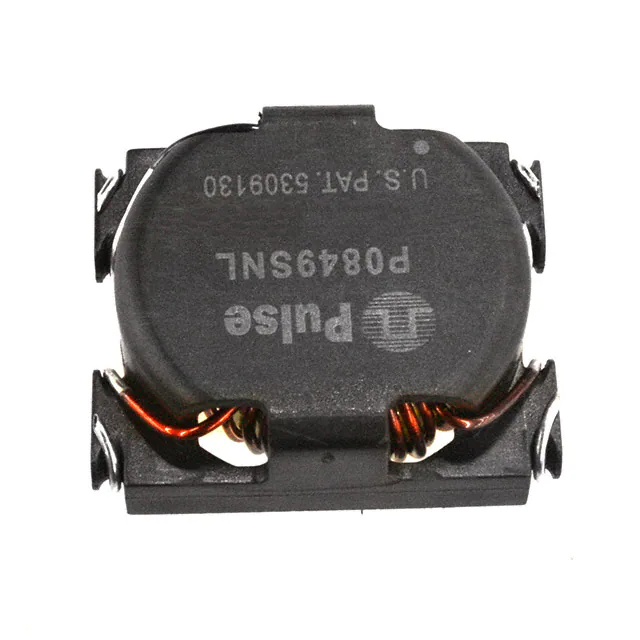

P0849SNLFIXED IND 33UH 5A 19 MOHM SMD |
706 |
|
Datasheet | Bigfoot | Nonstandard | Tube | Active | Toroidal | - | 33 µH | ±20% | 5 A | - | Shielded | 19mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

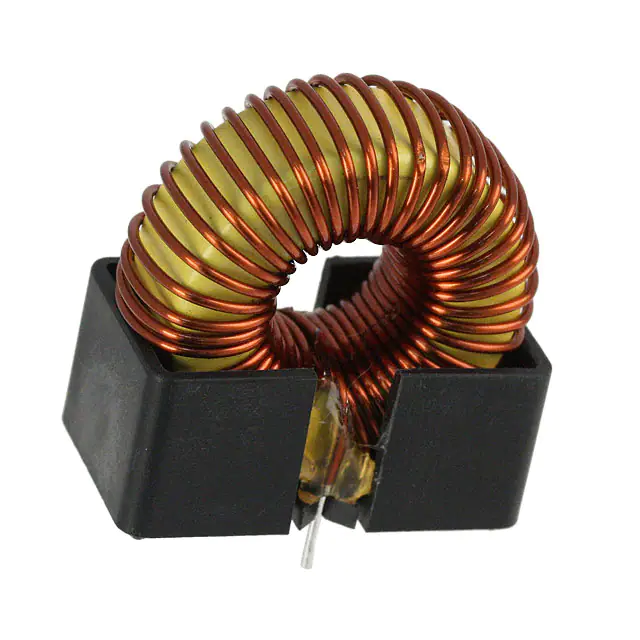

PE-53116NLFIXED IND 220UH 3A 70 MOHM TH |
820 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 220 µH | ±20% | 3 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|

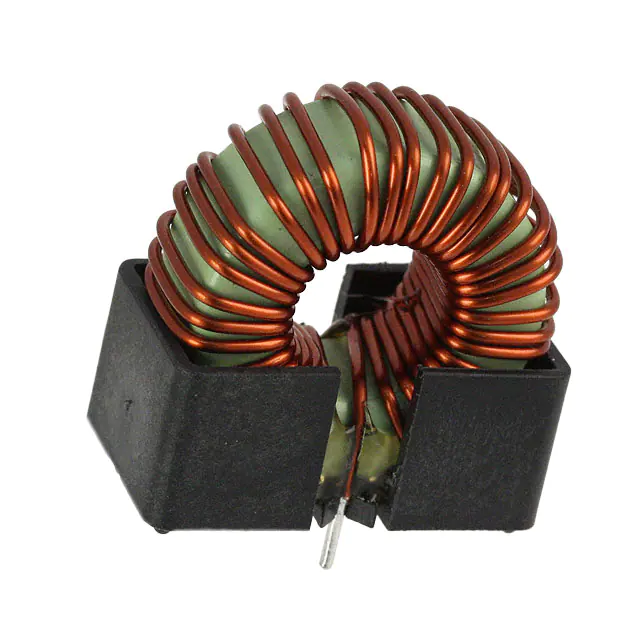

PE-92112KNLFIXED IND 100UH 5A 34 MOHM TH |
450 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
PA4349.103ANLTFIXED IND 10UH 33A 4.15 MOHM SMD |
1,099 |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 30 A | 20A | Shielded | 4.15mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.473ANLTFIXED IND 47UH 17A 20.8 MOHM SMD |
621 |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 14 A | 10A | Shielded | 20.8mOhm Max | - | 3.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.104ANLTFIXED IND 100UH 11A 40 MOHM SMD |
608 |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 9.5 A | 7.5A | Shielded | 40mOhm Max | - | 1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.472ANLTFIXED IND 4.7UH 47A 2.2 MOHM SMD |
267 |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 44 A | 34A | Shielded | 2.2mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|

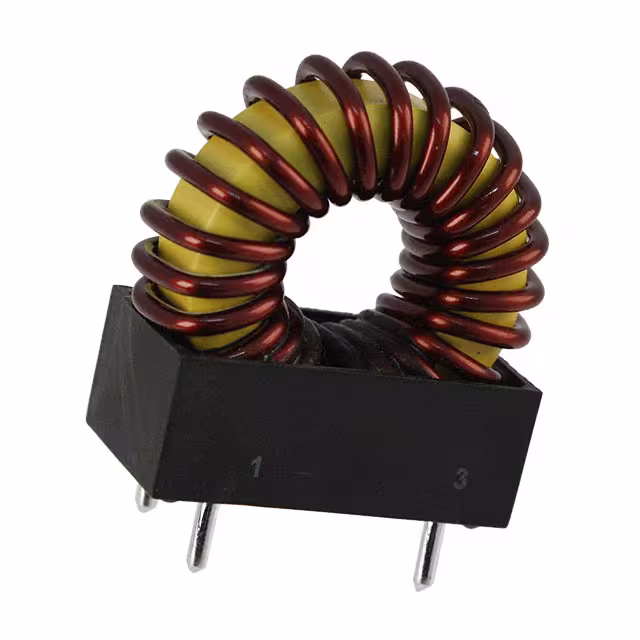

PE-51506NLFIXED IND 17UH 17A 6.5 MOHM TH |
569 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 17 µH | - | 17 A | - | Unshielded | 6.5mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|
BSCQ000603032N0B00FIXED IND 2NH 600MA 150MOHM SMD |
276,722 |
|
Datasheet | BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2 nH | ±0.1nH | 600 mA | - | Unshielded | 150mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
BSCH000603033N6S00FIXED IND 3.6NH 310MA 250MOHM SM |
246,628 |
|
Datasheet | BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.6 nH | ±0.3nH | 310 mA | - | Unshielded | 250mOhm Max | 4 @ 100MHz | 6.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
