Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2201.102NLTFIXED IND 1UH 9.6A 14.6MOHM SMD |
2,671 |
|
Datasheet | PM2201.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 9.6 A | 9.6A | Unshielded | 14.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
PG0702.682NLFIXED IND 6.8UH 8.5A 7.7MOHM SMD |
877 |
|
Datasheet | PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 8.5 A | 8.5A | Shielded | 7.7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|

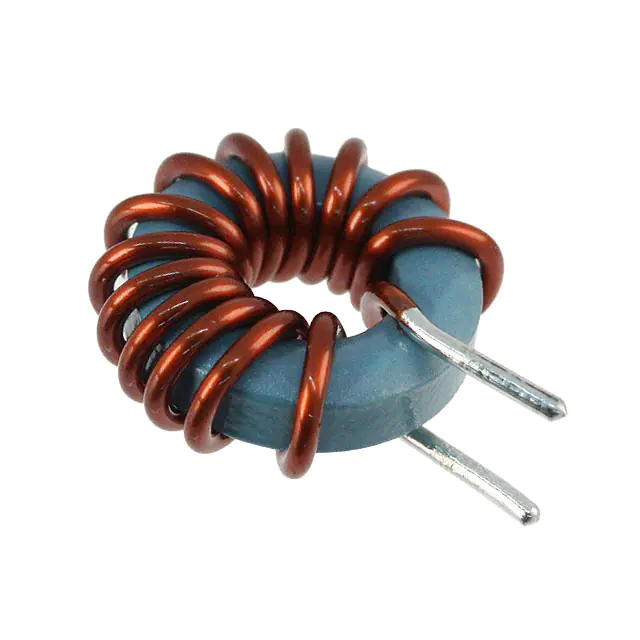

PA0431LNLFIXED IND 7.8UH 20.5A 5.5MOHM TH |
3,187 |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 7.8 µH | ±20% | 20.5 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - |
|

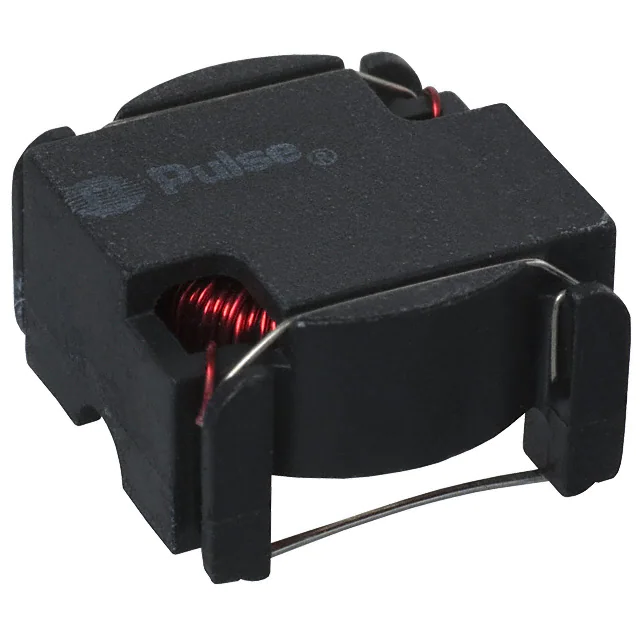

PE-53661NLFIXED IND 2.5UH 8A 8.3 MOHM SMD |
553 |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 2.5 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PM2205.332NLTFIXED IND 3.3UH 11A 12.5MOHM SMD |
2,665 |
|
Datasheet | PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 11 A | 12.5A | Shielded | 12.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
PA4320.154NLTFIXED IND 150UH 2.3A 185MOHM SMD |
2,069 |
|
Datasheet | PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 2.3 A | 2.6A | Shielded | 185mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
PA4320.105NLTFIXED IND 1MH 1A 960 MOHM SMD |
486 |
|
Datasheet | PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 1 A | 980mA | Shielded | 960mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
PG0426.681NLTFIXED IND 680NH 15.5A 5.4MOHM SM |
1,125 |
|
Datasheet | PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PA4320.334NLTFIXED IND 330UH 1.7A 340MOHM SMD |
4,511 |
|
Datasheet | PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1.7 A | 1.7A | Shielded | 340mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
PA4320.473NLTFIXED IND 47UH 4.2A 56 MOHM SMD |
3,677 |
|
Datasheet | PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 4.2 A | 4.5A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
