Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4344.823ANLTFIXED IND 82UH 6.5A 83 MOHM SMD |
7,149 |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 6.5 A | 8A | Shielded | 83mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
PA4344.153ANLTFIXED IND 15UH 16A 15.5 MOHM SMD |
282 |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 16 A | 16A | Shielded | 15.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|

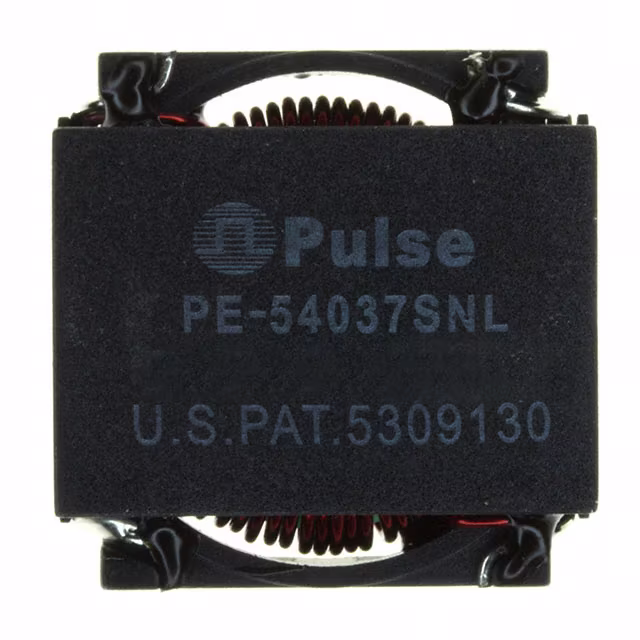

PE-54037SNLFIXED IND 114UH 2.22A 100MOHM SM |
699 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 114 µH | ±20% | 2.22 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PG1083.253NLTFIXED IND 24.5UH 11A 15 MOHM SMD |
597 |
|
Datasheet | PG1083NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 24.5 µH | ±20% | 11 A | 14.5A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
|
PG1083.103NLFIXED IND 10.5UH 17.5A 6MOHM SMD |
418 |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 10.5 µH | ±20% | 17.5 A | 22.5A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
PA1494.362NLTFIXED IND 3.6UH 17A 1.8 MOHM SMD |
8,962 |
|
Datasheet | PA1494NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 3.6 µH | ±15% | 17 A | 20A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|

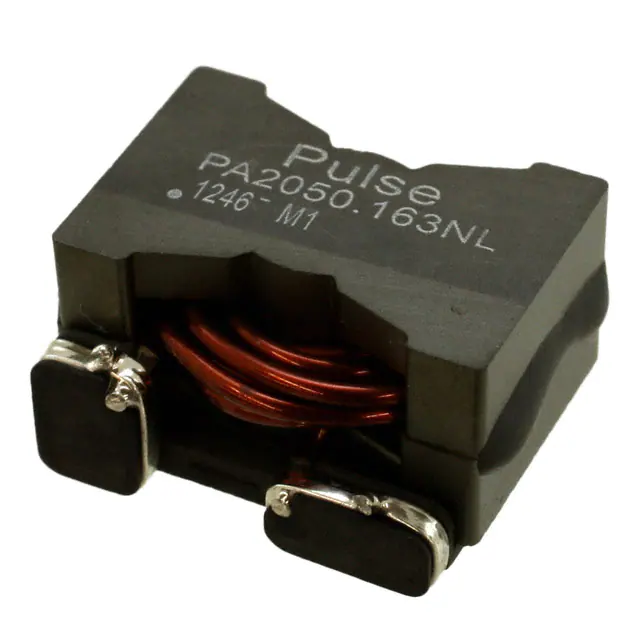

PA2050.163NLFIXED IND 16UH 9.9A 9.1 MOHM SMD |
485 |
|
Datasheet | PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 16 µH | ±10% | 9.9 A | 12A | Shielded | 9.1mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
PA2050.193NLFIXED IND 19.4UH 8.5A 12.6 MOHM |
357 |
|
Datasheet | PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 19.4 µH | ±10% | 8.5 A | 22A | Shielded | 12.6mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.878" L x 0.750" W (22.30mm x 19.05mm) | 0.480" (12.20mm) |
|

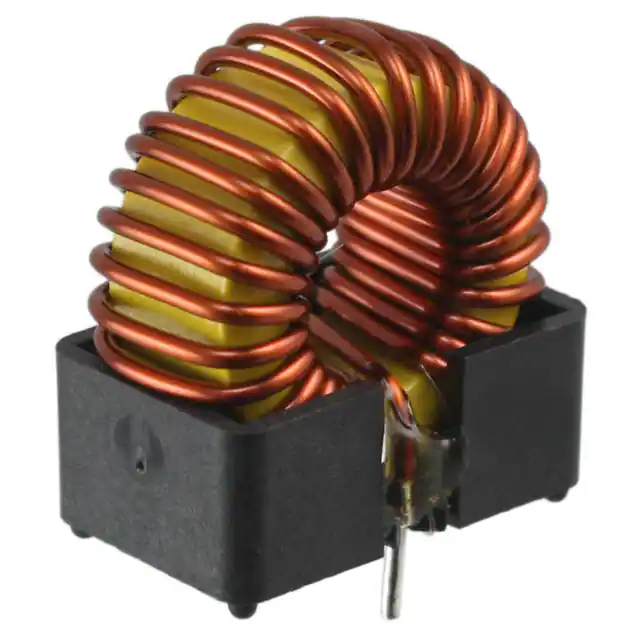

PE-92114KNLFIXED IND 35.6UH 5A 23 MOHM TH |
826 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 35.6 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
|
PM2248.153NLTFIXED IND 15UH 22A 7.5 MOHM SMD |
205 |
|
Datasheet | PM2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 22 A | 25.5A | Unshielded | 7.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
