Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-0805CM820KTTFIXED IND 82NH 400MA 360MOHM SMD |
1,347 |
|
Datasheet | 0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±10% | 400 mA | - | Unshielded | 360mOhm Max | 60 @ 500MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PE-0805CM471GTTFIXED IND 470NH 240MA 3.25OHM SM |
1,438 |
|
Datasheet | 0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 240 mA | - | Unshielded | 3.25Ohm Max | 38 @ 100MHz | 600MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|

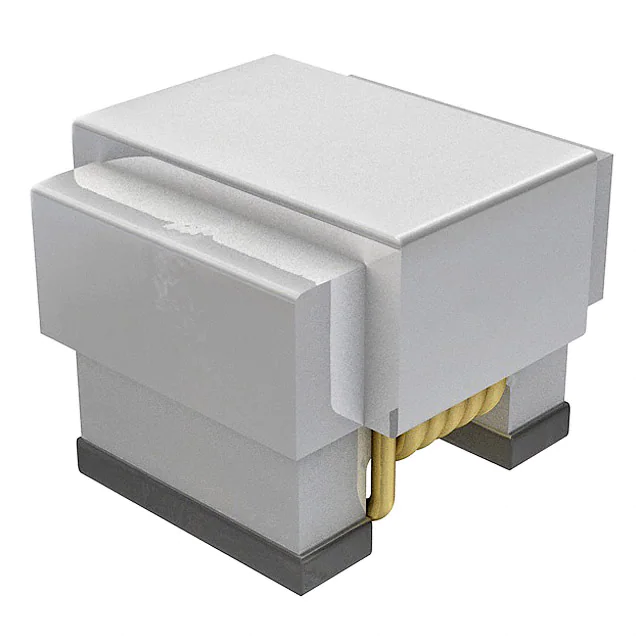

PE-0805CD152GTTFIXED IND 1.5UH 100MA 5 OHM SMD |
2,147 |
|
Datasheet | 0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 1.5 µH | ±2% | 100 mA | - | Unshielded | 5Ohm Max | 20 @ 50MHz | 200MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PE-0805CD910GTTFIXED IND 91NH 400MA 440MOHM SMD |
1,422 |
|
Datasheet | 0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 91 nH | ±2% | 400 mA | - | Unshielded | 440mOhm Max | 65 @ 500MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
.jpg "PE-1008CM271JTT")
|
PE-1008CM271JTTFIXED IND 270NH 500MA 500MOHM SM |
3,669 |
|
Datasheet | 1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 500 mA | - | Unshielded | 500mOhm Max | 45 @ 100MHz | 525MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|

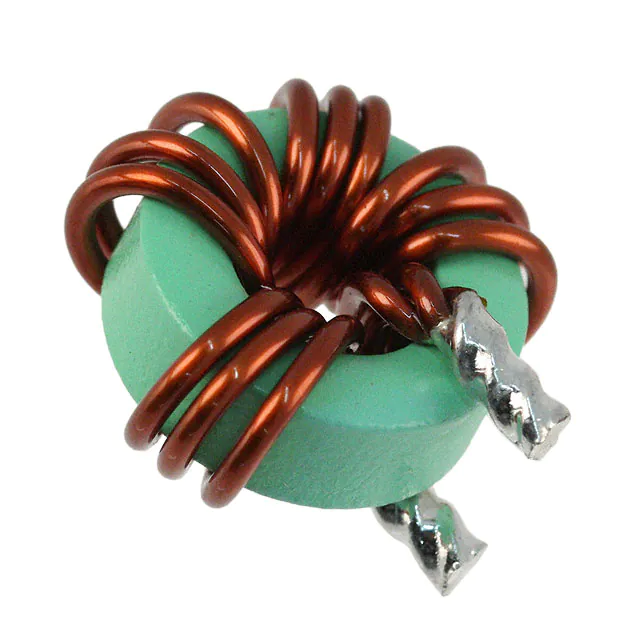

PG0123NLFIXED IND 490NH 48A 0.85 MOHM TH |
4,122 |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 490 nH | - | 48 A | - | Unshielded | 0.85mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.807" Dia x 0.413" W (20.50mm x 10.50mm) | - |
|
PA0373NLFIXED IND 2.1UH 34A 3.85 OHM SMD |
3,209 |
|
Datasheet | Spyglass | Nonstandard | Tray | Active | - | - | 2.1 µH | ±12% | 34 A | 35.2A | Shielded | 3.85Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.920" L x 0.790" W (23.37mm x 20.07mm) | 0.290" (7.37mm) |
|
|
PG0016.102NLFIXED IND 1UH 4.5A 13 MOHM SMD |
4,944 |
|
Datasheet | PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±15% | 4.5 A | 6.8A | Unshielded | 13mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.103NLFIXED IND 10UH 1.5A 80 MOHM SMD |
4,533 |
|
Datasheet | PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±15% | 1.5 A | 2.3A | Unshielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.154NLFIXED IND 150UH 400MA 1.25OHM SM |
2,837 |
|
Datasheet | PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±15% | 400 mA | 550mA | Unshielded | 1.25Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
