Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0698.223NLTFIXED IND 22UH 3.5A 47 MOHM SMD |
3,664 |
|
Datasheet | PF0698NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.5 A | 5.6A | Unshielded | 47mOhm Max | - | 12MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|

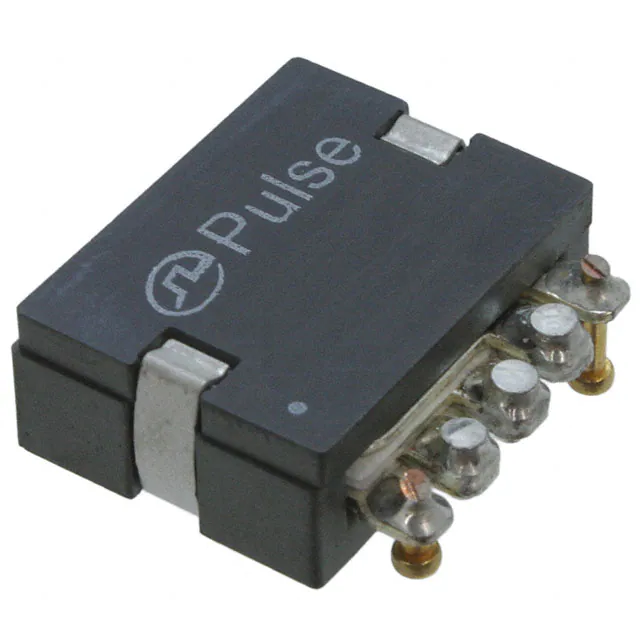

PA1393.102NLFIXED IND 1UH 42A 1.43 MOHM SMD |
2,787 |
|
Datasheet | PA1393NL | Nonstandard | Tray | Active | Planar | - | 1 µH | ±15% | 42 A | 68A | Shielded | 1.43mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1393.352NLFIXED IND 3.5UH 12A 1.43 MOHM |
1,941 |
|
Datasheet | PA1393NL | Nonstandard | Tray | Active | Planar | - | 3.5 µH | ±15% | 12 A | 15A | Shielded | 1.43mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PF0382.333NLTFIXED IND 33UH 3.1A 65 MOHM SMD |
4,347 |
|
Datasheet | PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3.1 A | 4.3A | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PF0382.154NLTFIXED IND 150UH 1.2A 280MOHM SMD |
2,911 |
|
Datasheet | PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1.2 A | 2.1A | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PG0015.224NLTFIXED IND 220UH 660MA 730MOHM SM |
4,515 |
|
Datasheet | PG0015NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 660 mA | 660mA | Unshielded | 730mOhm Max | - | 4MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.400" L x 0.360" W (10.15mm x 9.15mm) | 0.219" (5.55mm) |
|
PF0464.823NLTFIXED IND 82UH 600MA 370MOHM SMD |
4,843 |
|
Datasheet | PF0464NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 600 mA | 600mA | Shielded | 370mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
|
PG0063.104NLTFIXED IND 100UH 400MA 1.205 OHM |
1,670 |
|
Datasheet | PG0063 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 400 mA | 400mA | Unshielded | 1.205Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.098" (2.50mm) |
|
|
PE-53692NLTFIXED IND 3.5UH 12.4A 6.6MOHM SM |
4,823 |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 3.5 µH | - | 12.4 A | - | Unshielded | 6.6mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.390" (9.91mm) |
|
|
PF0382.224NLTFIXED IND 220UH 1.1A 360MOHM SMD |
2,105 |
|
Datasheet | PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.1 A | 1.7A | Unshielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
