Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B2086FIXED IND 4MH 100MA 3.6 OHM SMD |
4,684 |
|
Datasheet | - | 10-SMD, Gull Wing | Tray | Obsolete | - | - | 4 mH | ±10% | 100 mA | - | Unshielded | 3.6Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 10-SMT | 0.555" L x 0.525" W (14.10mm x 13.34mm) | 0.485" (12.32mm) |
|
|
BX8171AFIXED IND 20MH 4 OHM TH |
2,086 |
|
Datasheet | - | Radial | Tray | Obsolete | - | - | 20 mH | ±4% | - | - | Unshielded | 4Ohm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.736" L x 0.566" W (18.70mm x 14.37mm) | 0.500" (12.70mm) |
|
|
BX8259WFIXED IND 600UH 812 MOHM SMD |
3,380 |
|
Datasheet | - | 8-SMD, Gull Wing | Tray | Obsolete | - | - | 600 µH | - | - | - | Unshielded | 812mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 8-SMT | 0.425" L x 0.413" W (10.80mm x 10.50mm) | 0.248" (6.30mm) |
|

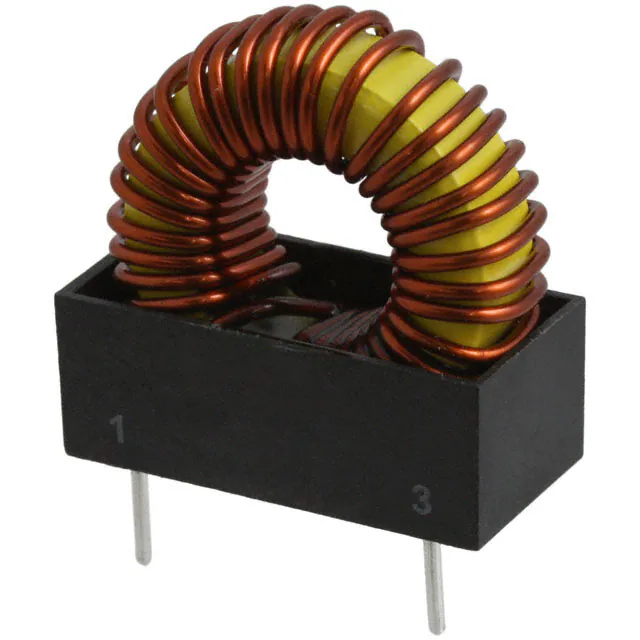

PE-51509FIXED IND 14UH 10A 9 MOHM TH |
1,641 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Toroidal | - | 14 µH | - | 10 A | - | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|
|
PE-51514FIXED IND 32UH 6.6A 25 MOHM TH |
1,065 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Toroidal | - | 32 µH | - | 6.6 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|
|
PE-52625FIXED IND 150UH 1.7A 420 MOHM TH |
3,403 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Tube | Obsolete | Toroidal | - | 150 µH | ±20% | 1.7 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-52626FIXED IND 220UH 1.5A 420 MOHM TH |
4,819 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-52627FIXED IND 330UH 1A 780 MOHM TH |
4,887 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 330 µH | ±20% | 1 A | - | Unshielded | 780mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-52628FIXED IND 470UH 900MA 1.26OHM TH |
4,978 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Tube | Obsolete | Toroidal | - | 470 µH | ±20% | 900 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-52629FIXED IND 680UH 850MA 1.5 OHM TH |
1,230 |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Tube | Obsolete | Toroidal | - | 680 µH | ±20% | 850 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
