Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

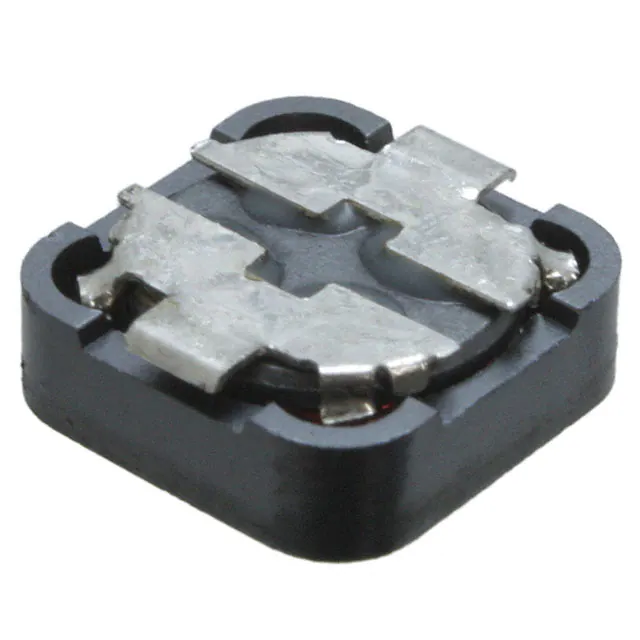

P1169.162NLTFIXED IND 1.6UH 8.5A 6.3MOHM SMD |
3,407 |
|
Datasheet | P1169NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.6 µH | ±30% | 8.5 A | 10A | Shielded | 6.3mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
PA1393.152NLTFIXED IND 1.5UH 36A 1.43MOHM SMD |
3,142 |
|
Datasheet | PA1393NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.5 µH | ±15% | 36 A | 43A | Shielded | 1.43mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PF0601.183NLTFIXED IND 18UH 800MA 210MOHM SMD |
4,490 |
|
Datasheet | PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 800 mA | 800mA | Shielded | 210mOhm Max | - | 23MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.274NLTFIXED IND 270UH 220MA 3 OHM SMD |
4,025 |
|
Datasheet | PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 220 mA | 220mA | Shielded | 3Ohm Max | - | 5.8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.123NLTFIXED IND 12UH 1A 140 MOHM SMD |
1,657 |
|
Datasheet | PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 1 A | 1A | Shielded | 140mOhm Max | - | 30MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.103NLTFIXED IND 10UH 1.1A 135 MOHM SMD |
3,209 |
|
Datasheet | PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 1.1A | Shielded | 135mOhm Max | - | 31MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
PF0581.123NLTFIXED IND 12UH 2.3A 48 MOHM SMD |
2,072 |
|
Datasheet | PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±10% | 2.3 A | 2.3A | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
|
PF0581.823NLTFIXED IND 82UH 850MA 262MOHM SMD |
3,737 |
|
Datasheet | PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±10% | 850 mA | 850mA | Unshielded | 262mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
|
PA1294.910NLTFIXED IND 910NH 39A 0.48MOHM SMD |
3,469 |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 910 nH | ±15% | 39 A | 46A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1294.650NLTFIXED IND 650NH 54A 0.48MOHM SMD |
1,135 |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 650 nH | ±15% | 54 A | 63A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
