Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1294.132NLTFIXED IND 1.3UH 25A 0.48MOHM SMD |
2,268 |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.3 µH | ±15% | 25 A | 29A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PF0465.104NLTFIXED IND 100UH 650MA 350MOHM SM |
2,936 |
|
Datasheet | PF0465NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 650 mA | 650mA | Shielded | 350mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.205" (5.20mm) |
|
PF0581.184NLTFIXED IND 180UH 560MA 620MOHM SM |
2,877 |
|
Datasheet | PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±10% | 560 mA | 560mA | Unshielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
PF0580.223NLTFIXED IND 22UH 750MA 280MOHM SMD |
4,575 |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±15% | 750 mA | 750mA | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.382NLTFIXED IND 3.8UH 1.7A 68 MOHM SMD |
1,247 |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.8 µH | ±15% | 1.7 A | 1.7A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
P0467NLTFIXED IND 422.5UH 300MA 1.185OHM |
3,511 |
|
Datasheet | Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 422.5 µH | ±15% | 300 mA | - | Shielded | 1.185Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
|
PF0580.683NLTFIXED IND 68UH 410MA 827MOHM SMD |
4,814 |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±15% | 410 mA | 410mA | Unshielded | 827mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|

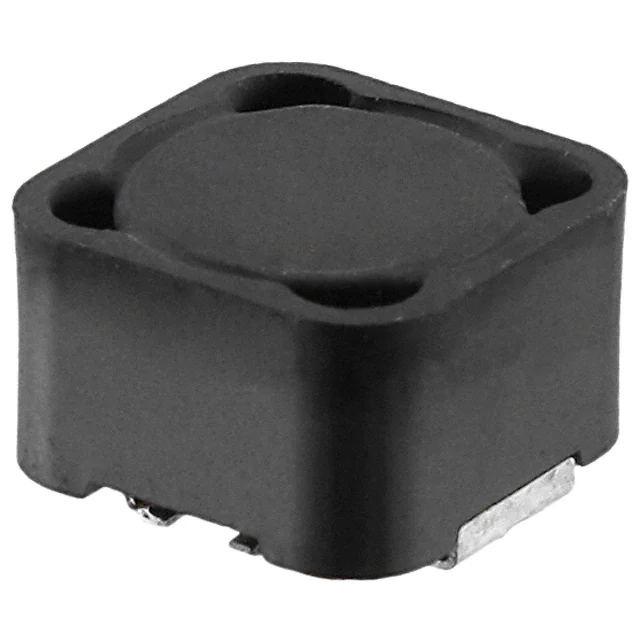

P1172.183NLTFIXED IND 18UH 4A 37 MOHM SMD |
4,537 |
|
Datasheet | P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | 13MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
PG0138.472NLTFIXED IND 4.7UH 10.2A 12.4 MOHM |
3,243 |
|
Datasheet | PG0138NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10.2 A | 10.2A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.193" (4.90mm) |
|
P1171.334NLTFIXED IND 330UH 820MA 620MOHM SM |
1,604 |
|
Datasheet | P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 820 mA | 820mA | Shielded | 620mOhm Max | - | 3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
