Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4547.562NLTFIXED IND 5.6UH 1.7A 318MOHM SMD |
7,460 |
|
Datasheet | PA4547.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 1.7 A | 2.3A | Unshielded | 318mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PA4547.103NLTFIXED IND 10UH 1.2A 522 MOHM SMD |
2,346 |
|
Datasheet | PA4547.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.2 A | 1.6A | Unshielded | 522mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
PM5404.822NLTFIXED IND 8.2UH 5A 63 MOHM SMD |
1,600 |
|
Datasheet | PM5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 5 A | 8A | Shielded | 63mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA4547.561NLTFIXED IND 560NH 5A 33 MOHM SMD |
2,996 |
|
Datasheet | PA4547.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 5 A | 7.2A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM5404.102NLTFIXED IND 1UH 15A 6.5 MOHM SMD |
1,339 |
|
Datasheet | PM5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 15 A | 20A | Shielded | 6.5mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|

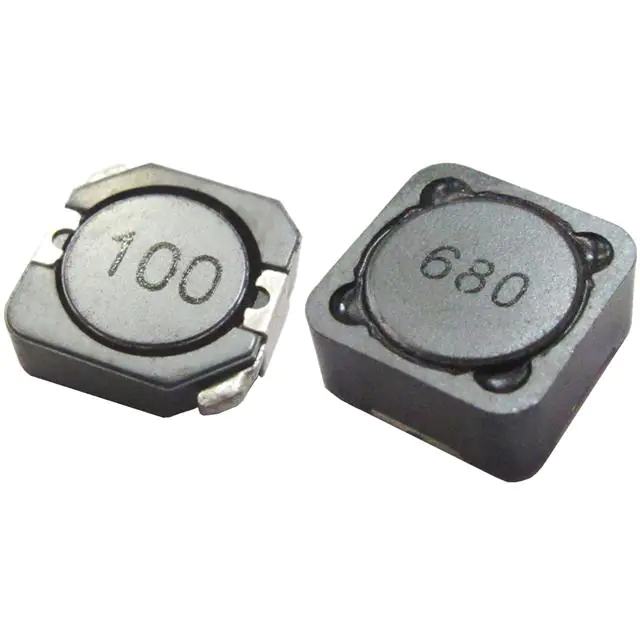

BPSA00131358102M00INDUCTOR POWER |
1,800 |
|
Datasheet | BPSA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 600 mA | 340mA | Shielded | 1.344Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
|
PA5431.103NLTIND COMPOSITE 10UH 3.1A |
1,776 |
|
Datasheet | PA5431.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 3.1 A | 2.5A | Unshielded | 92.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.161" (4.10mm) |
|
|
PM5449.473NLTFIXED IND 47UH 2.5A 225MOHM SMD |
1,600 |
|
Datasheet | PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 2.5 A | 2.9A | Shielded | 225mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.332NLTFIXED IND 3.3UH 10A 15 MOHM SMD |
1,600 |
|
Datasheet | PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10 A | 11A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.562NLTFIXED IND 5.6UH 8A 30 MOHM SMD |
1,599 |
|
Datasheet | PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 8 A | 10A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
