Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMMA00101040100MX1INDUCTOR POWER |
930 |
|
Datasheet | BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 6 A | 6A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PM4341.103NLTFIXED IND 10UH 3.5A 85 MOHM SMD |
394 |
|
Datasheet | PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3.5 A | 6A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|

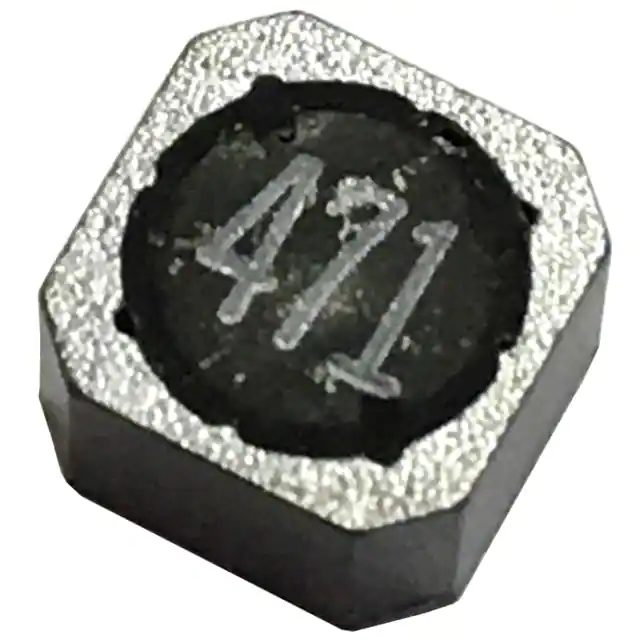

BPXX00050530222M00INDUCTOR POWER |
3,414 |
|
Datasheet | BPXX | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 mH | ±20% | 150 mA | 80mA | Shielded | 11Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
PA4345.561NLTIND MOLDED POWDER 6.0X5. NPB |
3,000 |
|
Datasheet | PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 10.7 A | 15A | Shielded | 11.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
|
BPXX00040418100M00INDUCTOR POWER |
1,999 |
|
Datasheet | BPXX | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.15 A | 1.1A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
PM4341.252NLTFIXED IND 2.5UH 7A 22 MOHM SMD |
993 |
|
Datasheet | PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.5 µH | ±20% | 7 A | 13A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PM4341.222NLTFIXED IND 2.2UH 8A 20 MOHM SMD |
977 |
|
Datasheet | PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
PA4308.822NLTFIXED IND 8.2UH 4.8A 97 MOHM SMD |
2,000 |
|
Datasheet | PA4308.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±30% | 4.8 A | - | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
P1174.103NLFIXED IND 10UH 800MA 73 MOHM SMD |
2,455 |
|
Datasheet | P1174NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 800 mA | 800mA | Shielded | 73mOhm Max | - | 31MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
PM5400.561NLTFIXED IND 560NH 4.5A 36MOHM SMD |
7,998 |
|
Datasheet | PM5400 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 4.5 A | 6.6A | Shielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
