Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9499.122CNLTINDUCTOR 1.25UH 3.5A ER11 SMD |
400 |
|
Datasheet | PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.25 µH | ±6% | 3.5 A | 22A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|

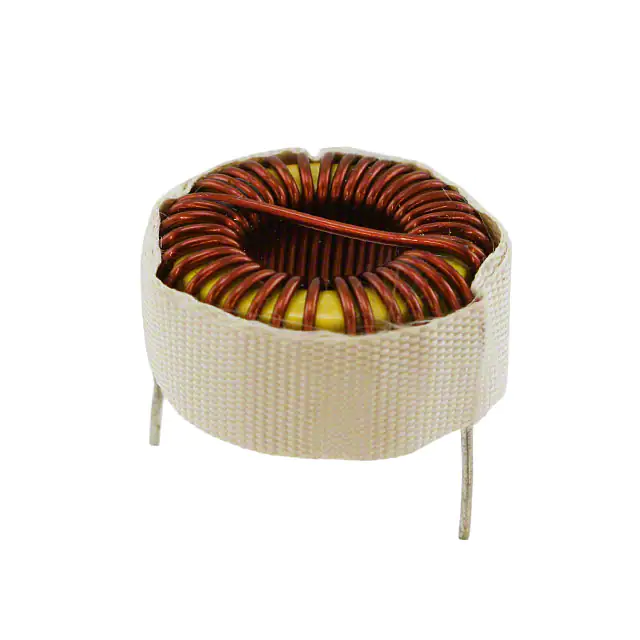

PE-92408NLFIXED IND 67UH 3.6A 45 MOHM TH |
548 |
|
Datasheet | - | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 67 µH | ±20% | 3.6 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|
PE-53935SNLFIXED IND 250UH 1.5A 230MOHM SMD |
417 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|

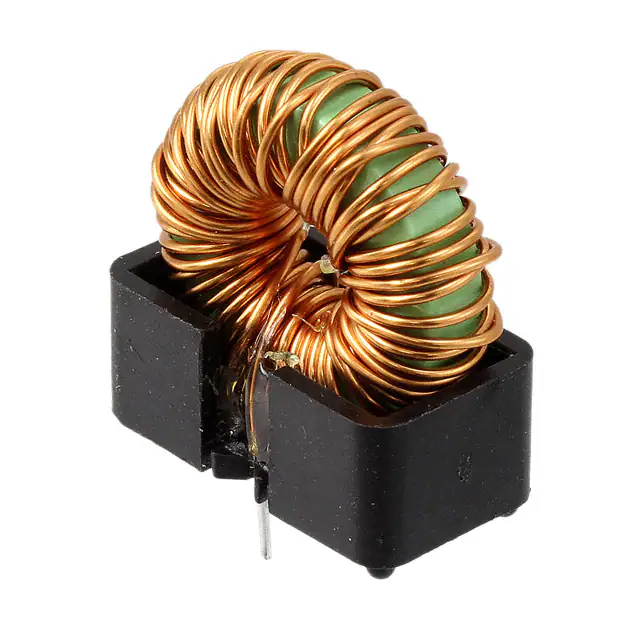

PE-54044NLFIXED IND 77UH 3A 80 MOHM TH |
1,101 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PH9499.102CNLTINDUCTOR 1.05UH 3.5A ER11 SMD |
377 |
|
Datasheet | PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.05 µH | ±6% | 3.5 A | 25A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|
PG0936.682NLTFIXED IND 6.8UH 18A 3.5 MOHM SMD |
989 |
|
Datasheet | PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 18A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
PE-92104NLFIXED IND 70UH 3A 52 MOHM TH |
555 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 70 µH | ±20% | 3 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia x 0.410" W (21.59mm x 10.41mm) | - |
|
PA4344.102NLTFIXED IND 1UH 52A 2 MOHM SMD |
1,052 |
|
Datasheet | PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | - | 52 A | 60A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
PE-53820SNLFIXED IND 115UH 670MA 400MOHM SM |
222 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PA4344.222NLTFIXED IND 2.2UH 43.5A 2.7MOHM SM |
434 |
|
Datasheet | PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 43.5 A | 46A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
