Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2729.243NLFIXED IND 24.5UH 8.1A 12.5 MOHM |
975 |
|
Datasheet | PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 24.5 µH | ±15% | 8.1 A | 9.8A | Shielded | 12.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.173NLFIXED IND 17.1UH 9.9A 9.1MOHM SM |
636 |
|
Datasheet | PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 17.1 µH | ±15% | 9.9 A | 11.7A | Shielded | 9.1mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
PG0077.401NLTFIXED IND 450NH 45A 0.8 MOHM SMD |
555 |
|
Datasheet | PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 450 nH | ±20% | 45 A | 48A | Unshielded | 0.8mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.256" (6.50mm) |
|
PE-53821SNLTFIXED IND 78UH 820MA 300MOHM SMD |
2,021 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53828SNLFIXED IND 168UH 1.02A 400MOHM SM |
1,199 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 168 µH | ±20% | 1.02 A | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53683NLTFIXED IND 9.4UH 10.9A 12.3 MOHM |
1,103 |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 9.4 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|
PE-92106NLFIXED IND 285UH 3A 140 MOHM TH |
615 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 285 µH | ±20% | 3 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia x 0.700" W (35.56mm x 17.78mm) | - |
|

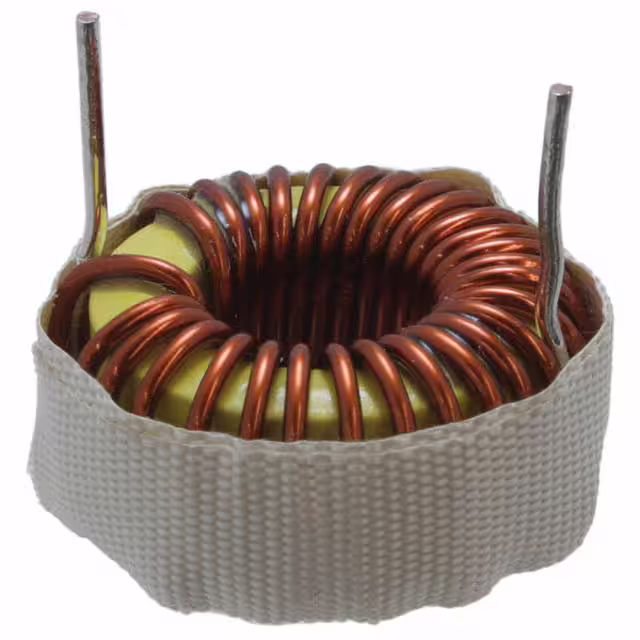

PE-92414NLFIXED IND 35.6UH 5A 23 MOHM TH |
592 |
|
Datasheet | - | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 35.6 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|

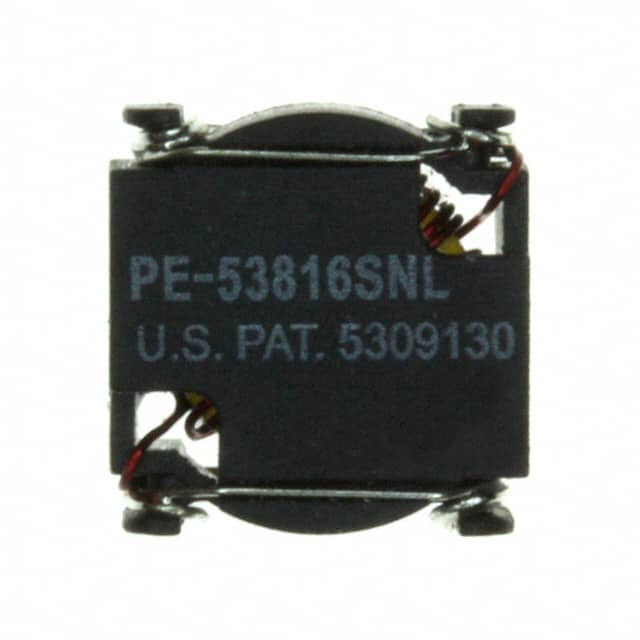

PE-53816SNLFIXED IND 17UH 1.02A 100MOHM SMD |
213 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 17 µH | ±20% | 1.02 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|

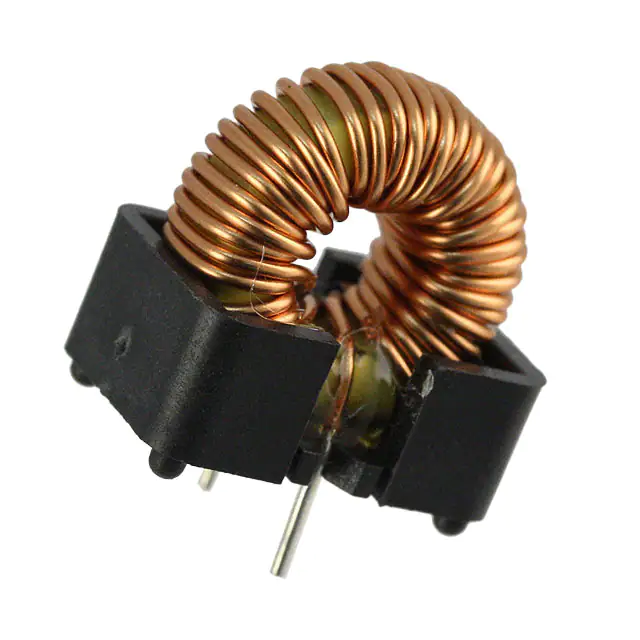

PE-54041NLFIXED IND 25UH 3A 40 MOHM TH |
1,104 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.700" (17.78mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
