Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53935NLFIXED IND 250UH 1.5A 230 MOHM TH |
814 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-53826SNLFIXED IND 377UH 680MA 1 OHM SMD |
880 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 377 µH | ±20% | 680 mA | - | Shielded | 1Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PD0120.223NLFIXED IND 23.1UH 5.3A 35.5 MOHM |
1,070 |
|
Datasheet | PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 23.1 µH | ±10% | 5.3 A | 6.8A | Unshielded | 35.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
|
PD0120.183NLFIXED IND 18.7UH 6.4A 25.5 MOHM |
1,066 |
|
Datasheet | PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 18.7 µH | ±10% | 6.4 A | 7.6A | Unshielded | 25.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
|
PD0120.702NLFIXED IND 7.2UH 8.6A 10 MOHM SMD |
1,045 |
|
Datasheet | PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 7.2 µH | ±10% | 8.6 A | 12.6A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|

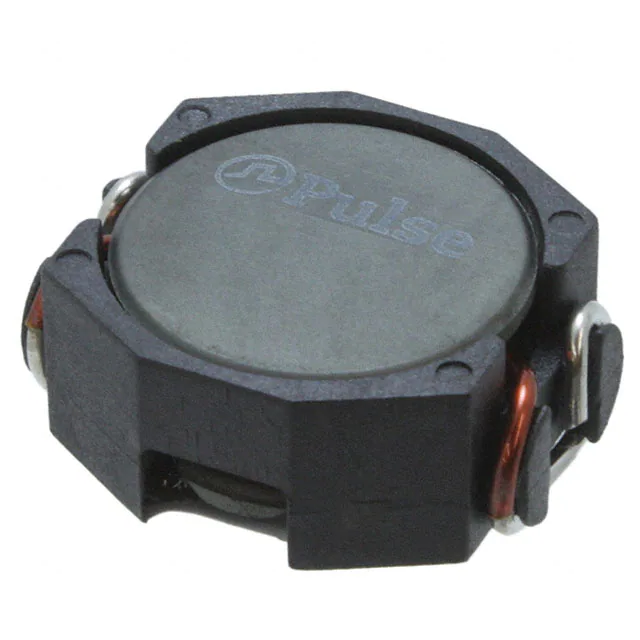

PB2020.153NLTFIXED IND 15UH 9.7A 13 MOHM SMD |
1,100 |
|
Datasheet | PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 9.7 A | 18A | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PB2020.332NLFIXED IND 3.3UH 18.3A 3.9MOHM SM |
1,010 |
|
Datasheet | PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 3.3 µH | ±20% | 18.3 A | 35A | Unshielded | 3.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
|
PB2020.103NLTFIXED IND 10UH 12.6A 7.8MOHM SMD |
697 |
|
Datasheet | PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 12.6 A | 20A | Unshielded | 7.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|

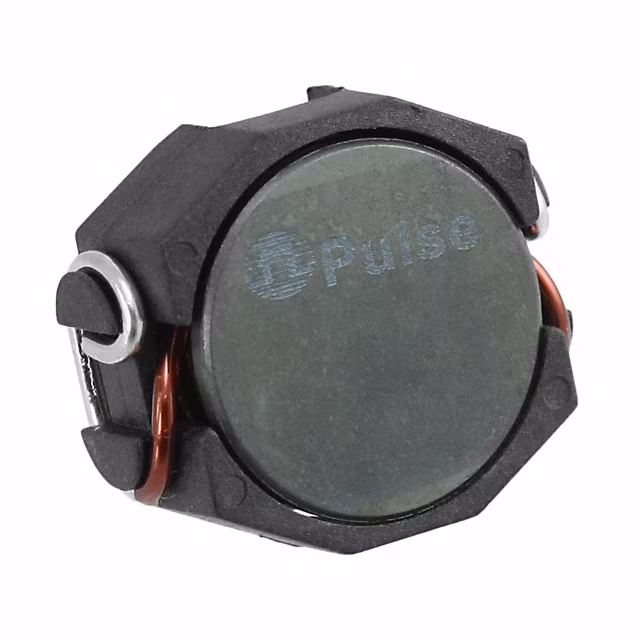

PB2020.103NLFIXED IND 10UH 12.6A 7.8MOHM SMD |
517 |
|
Datasheet | PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 10 µH | ±20% | 12.6 A | 20A | Unshielded | 7.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PH9499.951CNLTINDUCTOR 0.95UH 3.5A ER11 SMD |
400 |
|
Datasheet | PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 950 nH | ±6% | 3.5 A | 28A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
