Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760800203FIXED IND 584UH 11.7A 0.065OHM |
3,702 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 584 µH | ±20% | 11.7 A | 19A | Unshielded | 65mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.835" Dia (72.00mm) | 2.362" (60.00mm) |
|
CH-1FIXED IND 100MH 1A 1.5 OHM CHASS |
2,372 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 100 mH | - | 1 A | - | Unshielded | 1.5Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 2.500" W (76.20mm x 63.50mm) | 2.500" (63.50mm) |
|
|
760801102FIXED IND 510UH 9.8A 0.055OHM |
2,944 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 510 µH | ±20% | 9.8 A | 24A | Unshielded | 55mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.362" Dia (60.00mm) | 2.146" (54.50mm) |
|
158MFIXED IND 10H 100MA 262 OHM CHAS |
3,870 |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 10 H | ±15% | 100 mA | - | Unshielded | 262Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|
|
158QFIXED IND 5H 150MA 105 OHM CHASS |
4,570 |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 5 H | ±15% | 150 mA | - | Unshielded | 105Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|
159ZCFIXED IND 60MH 2A 700 MOHM CHASS |
3,776 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 60 mH | ±15% | 2 A | - | Unshielded | 700mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
159SFIXED IND 4H 225MA 65 OHM CHASS |
2,045 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 4 H | ±15% | 225 mA | - | Unshielded | 65Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
159VFIXED IND 1.5H 500MA 27 OHM CHAS |
3,093 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 1.5 H | ±15% | 500 mA | - | Unshielded | 27Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
760801202FIXED IND 389UH 11.5A 0.05OHM |
1,867 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 389 µH | ±20% | 11.5 A | 37A | Unshielded | 50mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.835" Dia (72.00mm) | 1.772" (45.00mm) |
|
|
159ZAFIXED IND 300MH 1A 6OHM CHAS MNT |
1,613 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 300 mH | ±15% | 1 A | - | Unshielded | 6Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
193TFIXED IND 50MH 2A 700 MOHM CHASS |
4,086 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 50 mH | ±15% | 2 A | - | Unshielded | 700mOhm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 2.750" L x 2.500" W (69.85mm x 63.50mm) | 3.125" (79.38mm) |
|
|
193DFIXED IND 8H 150MA 75 OHM CHASS |
4,824 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 8 H | ±15% | 150 mA | - | Unshielded | 75Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.125" (79.38mm) |
|
CH-4FIXED IND 70MH 4A 600 MOHM CHASS |
3,359 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 70 mH | - | 4 A | - | Unshielded | 600mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.126" W (95.30mm x 79.40mm) | 3.252" (82.60mm) |
|

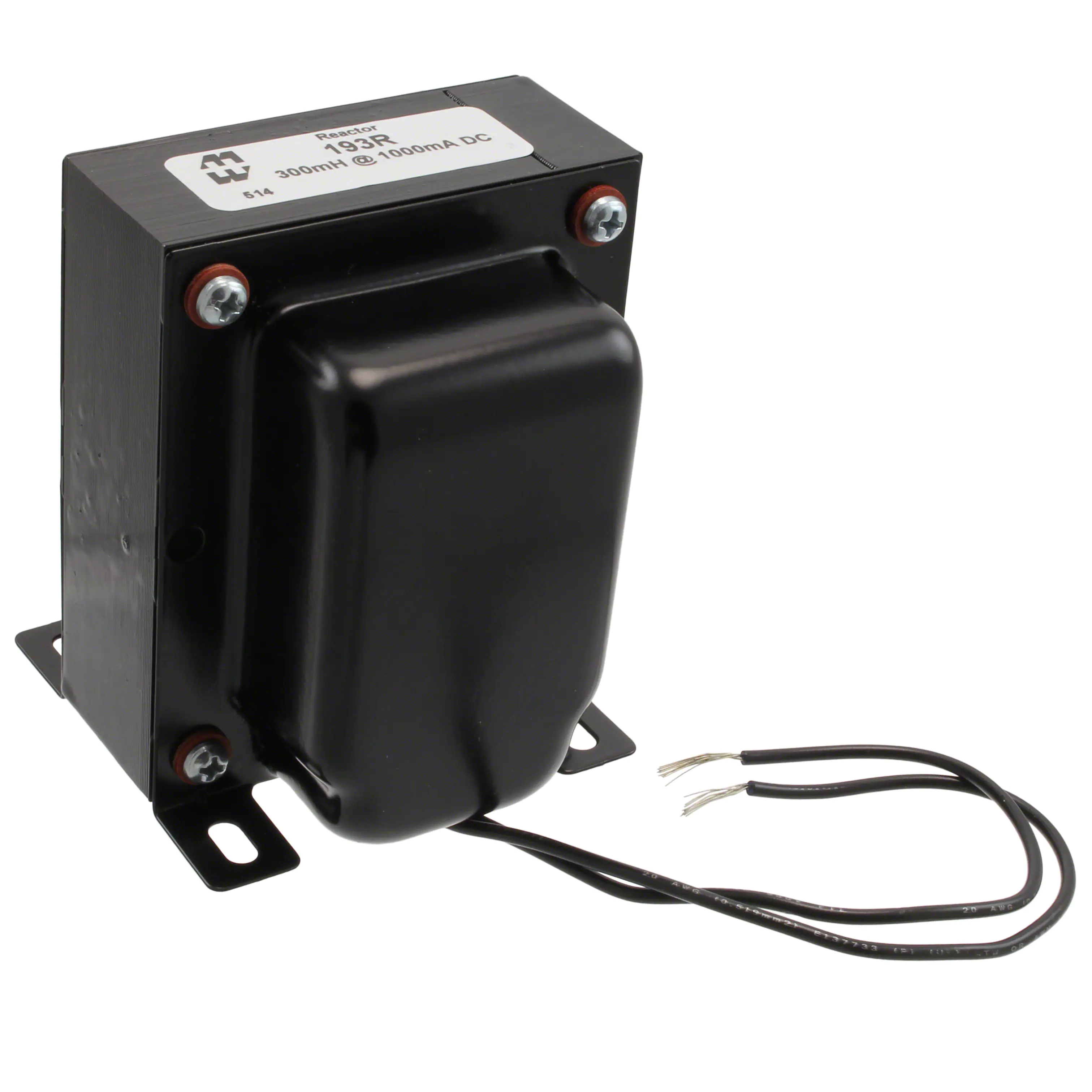

193RFIXED IND 300MH 1A 3.5 OHM CHASS |
4,047 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 300 mH | ±15% | 1 A | - | Unshielded | 3.5Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.500" L x 3.130" W (88.90mm x 79.50mm) | 3.810" (96.77mm) |
|
|
760801301FIXED IND 180UH 24.5A 0.02OHM |
3,721 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 180 µH | ±20% | 24.5 A | 105A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 3.898" Dia (99.00mm) | 2.441" (62.00mm) |
|

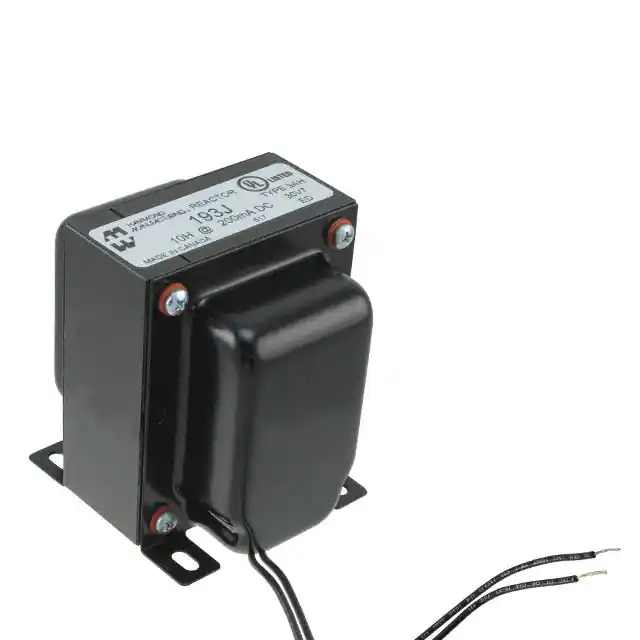

193JFIXED IND 10H 200MA 82 OHM CHASS |
1,101 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 200 mA | - | Unshielded | 82Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
195C30FIXED IND 1MH 30A 9MOHM CHAS MNT |
2,106 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 30 A | - | Unshielded | 9mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 3.850" W (95.25mm x 97.79mm) | 3.130" (79.50mm) |
|
|
760801321FIXED IND 720UH 17.2A 0.042OHM |
2,153 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 720 µH | ±20% | 17.2 A | 38A | Unshielded | 42mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 3.898" Dia (99.00mm) | 2.441" (62.00mm) |
|
|
193SFIXED IND 1H 1A 5.75OHM CHAS MNT |
3,552 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 1 H | ±15% | 1 A | - | Unshielded | 5.75Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.000" L x 3.750" W (101.60mm x 95.25mm) | 4.560" (115.82mm) |
|
|
195M10FIXED IND 20MH 10A 13 MOHM CHASS |
2,086 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 20 mH | ±15% | 10 A | - | Unshielded | 13mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 4.750" W (114.30mm x 120.65mm) | 3.750" (95.25mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
