Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SHBC24W-2R4A0174VCMC 174UH 20A 2LN TH |
3,644 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 174 µH | ±20% | 20 A | - | Unshielded | 11.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 2.268" Dia (57.60mm) | 2.268" (57.60mm) |
|
|
SHBC24W-2R1A0311VCMC 311UH 15A 2LN TH |
3,082 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 311 µH | ±20% | 15 A | - | Unshielded | 20.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 2.268" Dia (57.60mm) | 2.268" (57.60mm) |
|
1540M22FIXED IND 900UH 3.75A 175MOHM TH |
3,261 |
|
Datasheet | 1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 900 µH | ±15% | 3.75 A | - | Unshielded | 175mOhm Max | - | - | - | - | - | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
|
750343811FIXED IND 9.5UH 15A 6 MOHM TH |
4,383 |
|
Datasheet | MID-FLT | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 9.5 µH | ±10% | 15 A | 15A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.654" Dia x 1.060" W (42.00mm x 27.00mm) | 1.654" (42.00mm) |
|
154MFIXED IND 2H 100MA 175 OHM CHASS |
3,890 |
|
Datasheet | 154 | Nonstandard | Bulk | Active | - | - | 2 H | ±15% | 100 mA | - | Unshielded | 175Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) |
|
C-56UFIXED IND 35MH 2A 790 MOHM CHASS |
1,646 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 35 mH | -20%, +50% | 2 A | - | Unshielded | 790mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 2.625" L x 2.000" W (66.68mm x 50.80mm) | 2.250" (57.15mm) |
|
C-17XFIXED IND 1.5H 300MA 40 OHM CHAS |
4,379 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 1.5 H | -20%, +50% | 300 mA | - | Unshielded | 40Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.687" L x 2.000" W (93.65mm x 50.80mm) | 2.281" (57.94mm) |
|
760801101FIXED IND 255UH 11.2A 0.036OHM |
4,419 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 255 µH | ±20% | 11.2 A | 24A | Unshielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.362" Dia (60.00mm) | 1.339" (34.00mm) |
|
|
154EFIXED IND 20H 20MA 1.666K OHM |
4,982 |
|
Datasheet | 154 | Nonstandard | Bulk | Active | - | - | 20 H | ±15% | 20 mA | - | Unshielded | 1.666kOhm | - | - | - | - | - | - | Chassis Mount | - | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) |
|

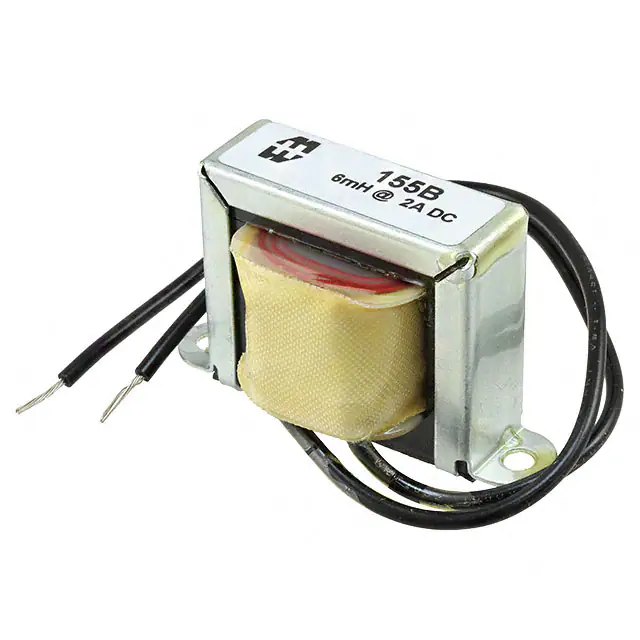

155BFIXED IND 6MH 2A 300 MOHM CHASS |
4,853 |
|
Datasheet | 155 | Nonstandard | Bulk | Active | - | - | 6 mH | ±15% | 2 A | - | Unshielded | 300mOhm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.380" W (60.45mm x 35.05mm) | 1.380" (35.05mm) |
|
194AFIXED IND 4H 50MA 167 OHM CHASS |
1,868 |
|
Datasheet | 194 | Nonstandard | Box | Active | - | - | 4 H | ±15% | 50 mA | - | Unshielded | 167Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.200" W (60.45mm x 30.48mm) | 1.375" (34.93mm) |
|
156RFIXED IND 1.5H 200MA 56 OHM CHAS |
2,955 |
|
Datasheet | 156 | Nonstandard | Bulk | Active | - | - | 1.5 H | ±15% | 200 mA | - | Unshielded | 56Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
|
|
194BFIXED IND 4H 90MA 108 OHM CHASS |
1,668 |
|
Datasheet | 194 | Nonstandard | Box | Active | - | - | 4 H | ±15% | 90 mA | - | Unshielded | 108Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
506WLSN3R30KT350TFIXED IND 3.3UH 350MA 1.2OHM SMD |
154 |
|
Datasheet | 506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±10% | 350 mA | - | Unshielded | 1.2Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
|
760801403FIXED IND 355UH 12.3A 0.035OHM |
3,975 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 355 µH | ±20% | 12.3 A | 23A | Unshielded | 35mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.087" Dia (53.00mm) | 1.969" (50.00mm) |
|

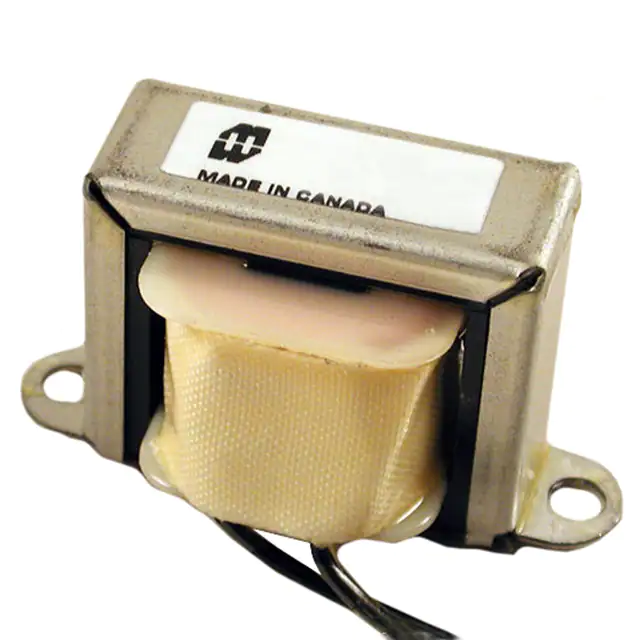

157DFIXED IND 1MH 10A 38 MOHM CHASS |
2,171 |
|
Datasheet | 157 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 10 A | - | Unshielded | 38mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
159ZEFIXED IND 28MH 3A 430 MOHM CHASS |
4,079 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 28 mH | ±15% | 3 A | - | Unshielded | 430mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
506WLSN1R47KT694TFIXED IND 1.47UH 694MA 330 MOHM |
2,091 |
|
Datasheet | 506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.47 µH | ±10% | 694 mA | - | Unshielded | 330mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
1539M31FIXED IND 5MH 2.2A 714 MOHM TH |
1,850 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 mH | ±10% | 2.2 A | - | Unshielded | 714mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
|
159ZGFIXED IND 15MH 4A 250 MOHM CHASS |
3,163 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 15 mH | ±15% | 4 A | - | Unshielded | 250mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
