Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHDM1008BCEV100M30FIXED IND 10UH 30A 2 MOHM TH |
2,766 |
|
Datasheet | IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 40 A | 68A | Unshielded | 2mOhm Max | - | 22MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
1140-122K-RCFIXED IND 1.2MH 3.4A 232 MOHM TH |
100 |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 3.4 A | 5.9A | Unshielded | 232mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
IHDM1107BBEV3R0M20FG, IHDM-1107BB-20 3.0 20% |
1,523 |
|
Datasheet | IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 3 µH | ±20% | 50 A | 192A | Unshielded | 0.97mOhm Max | - | 53MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
1140-561K-RCFIXED IND 560UH 4.7A 125 MOHM TH |
100 |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 4.7 A | 8.6A | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-102K-RCFIXED IND 1MH 3.6A 216 MOHM TH |
1,949 |
|
Datasheet | 1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 3.6 A | 6.5A | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-821K-RCFIXED IND 820UH 4.2A 154 MOHM TH |
1,972 |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 4.2 A | 7.2A | Unshielded | 154mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-153K-RCFIXED IND 15MH 900MA 3.39 OHM TH |
1,694 |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 900 mA | 1.7A | Unshielded | 3.39Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-390K-RCFIXED IND 39UH 15.1A 12 MOHM TH |
2,190 |
|
Datasheet | 1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 15.1 A | 32.3A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-562K-RCFIXED IND 5.6MH 1.3A 1.6 OHM TH |
4,095 |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 1.3 A | 2.8A | Unshielded | 1.6Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
MPX1D2213L150FIXED IND 15UH 27.5A 6.8MOHM SMD |
4,591 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 27.5 A | 30A | Shielded | 6.8mOhm Max | - | 4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
7443783533650FIXED IND 65UH 17.2A 14.44 MOHM |
4,841 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 65 µH | ±20% | 17.2 A | 26.6A | Shielded | 14.44mOhm Max | - | 4.28MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
DEN-25-0001FIXED IND 16A 27 MOHM CHAS MNT |
2,149 |
|
Datasheet | DEN | Nonstandard | Bulk | Active | - | - | - | - | 16 A | - | - | 27mOhm | - | - | - | -25°C ~ 100°C | - | - | Chassis Mount | - | 1.575" L x 1.575" W (40.00mm x 40.00mm) | - |
|
MPXV1D2213L150FIXED IND 15UH 27.5A 6.8MOHM SMD |
4,468 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 27.5 A | 30A | Shielded | 6.8mOhm Max | - | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|

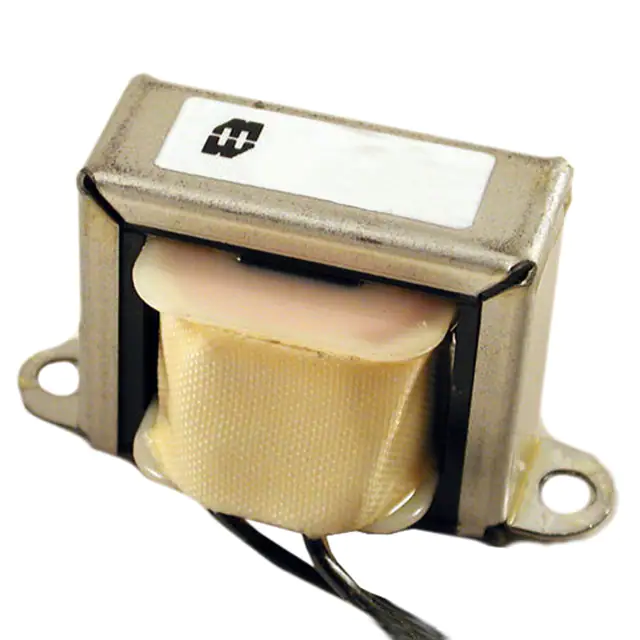

158SAFIXED IND 1H 240MA 41 OHM CHASS |
2,100 |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 1 H | ±15% | 240 mA | - | Unshielded | 41Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|
760800101FIXED IND 255UH 11.2A 0.036OHM |
1,178 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 255 µH | ±20% | 11.2 A | 10.5A | Unshielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.362" Dia (60.00mm) | 1.339" (34.00mm) |
|
C-14XFIXED IND 6H 200MA 150 OHM CHASS |
4,298 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 6 H | -20%, +50% | 200 mA | - | Unshielded | 150Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.000" L x 2.250" W (101.60mm x 57.15mm) | 2.598" (66.00mm) |
|
|
760801401FIXED IND 118UH 13.9A 0.022OHM |
1,132 |
|
Datasheet | WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 118 µH | ±20% | 13.9 A | 23A | Unshielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.087" Dia (53.00mm) | 1.102" (28.00mm) |
|
159ZBFIXED IND 320MH 600MA 7.8 OHM |
4,687 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 320 mH | ±15% | 600 mA | - | Unshielded | 7.8Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
7443763540100FIXED IND 10UH 56.7A 1.2 MOHM TH |
1,725 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 56.7 A | 62A | Shielded | 1.2mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
7443763540330FIXED IND 33UH 32A 6.38 MOHM TH |
4,428 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 32 A | 38.9A | Shielded | 6.38mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
