Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

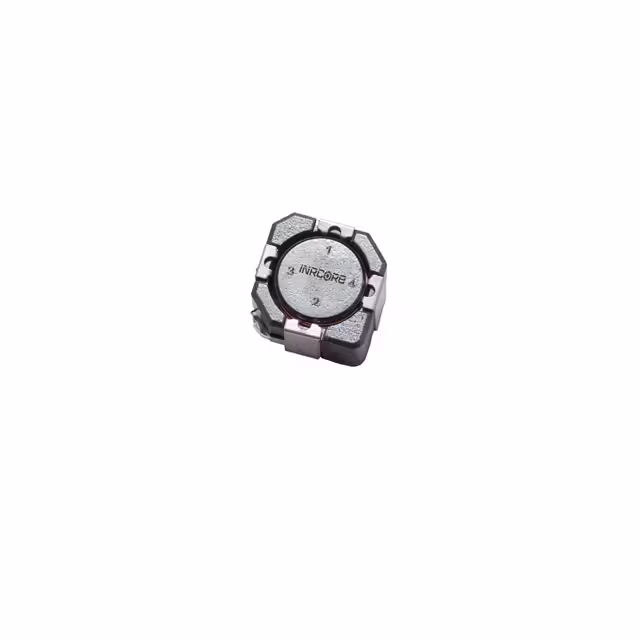

PL8906TFIXED IND 6UH 6A 16.5 MOHM SMD |
400 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6 µH | ±30% | 6 A | 6.9A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
MGV17071R0M-10FIXED IND 1UH 52A 2 MOHM SMD |
150 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 52 A | 70A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
CPDX1310A-100MCCLASS D INDUCTOR FOR DIGITAL AMP |
714 |
|
Datasheet | CPDX1310A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 9.4 A | 28A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.571" (14.50mm) |
|
|
CPDX1310A-220MCCLASS D INDUCTOR FOR DIGITAL AMP |
636 |
|
Datasheet | CPDX1310A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 6.4 A | 18A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.571" (14.50mm) |
|
SHBC14-1R2A0120VCMC 120UH 8A 2LN TH |
2,262 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 120 µH | ±20% | 8 A | - | Unshielded | 29.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.339" Dia (34.00mm) | 1.339" (34.00mm) |
|
LGJ12575TS-6R8N5R9-HFIXED IND 6.8UH 5.9A 13.1MOHM SM |
485 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.9 A | 7.2A | Shielded | 13.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
LGJ12575TS-680M2R0-HFIXED IND 68UH 2.4A 77.8MOHM SMD |
480 |
|
Datasheet | LGJ | Nonstandard | Cut Tape (CT) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.4 A | 2A | Shielded | 77.8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
LGJ12575TS-2R7N7R0-HFIXED IND 2.7UH 7A 7.4 MOHM SMD |
446 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 7 A | 10A | Shielded | 7.4mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
LGJ12575TS-471MR80-HFIXED IND 470UH 800MA 600MOHM SM |
427 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 800 mA | 800mA | Shielded | 600mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
LGJ12575TS-1R2N8R2-HFIXED IND 1.2UH 8.2A 5.1MOHM SMD |
420 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 8.2 A | 13A | Shielded | 5.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
LGJ12575TS-5R6N6R3-HFIXED IND 5.6UH 6.3A 11.6MOHM SM |
185 |
|
Datasheet | LGJ | Nonstandard | Cut Tape (CT) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 6.3 A | 7.8A | Shielded | 11.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
LGJ12575TS-150M4R7-HFIXED IND 15UH 5A 18.4 MOHM SMD |
123 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5 A | 4.7A | Shielded | 18.4mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
PL8916TFIXED IND 47UH 2.6A 89 MOHM SMD |
1,200 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.6 A | 2.6A | Shielded | 89mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
XAL8080-222MEDFIXED IND 2.2UH 21.5A 4.49MOHM |
4,760 |
|
Datasheet | XAL8080 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 21.5 A | 24A | Shielded | 4.49mOhm Max | - | 36.73MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 8080 | 0.339" L x 0.319" W (8.60mm x 8.10mm) | 0.315" (8.00mm) |
|
|
XAL8080-681MEDFIXED IND 680NH 37A 1.65MOHM SM |
3,054 |
|
Datasheet | XAL8080 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 37 A | 38A | Shielded | 1.65mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 8080 | 0.339" L x 0.319" W (8.60mm x 8.10mm) | 0.315" (8.00mm) |
|
|
XAL8080-472MEDFIXED IND 4.7UH 14.6A 9.77MOHM |
1,688 |
|
Datasheet | XAL8080 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 14.6 A | 17.4A | Shielded | 9.77mOhm Max | - | 24.14MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 8080 | 0.339" L x 0.319" W (8.60mm x 8.10mm) | 0.315" (8.00mm) |
|
|
XAL8080-183MEDFIXED IND 18UH 8.3A 28MOHM SM |
1,663 |
|
Datasheet | XAL8080 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 18 µH | ±20% | 8.3 A | 6.6A | Shielded | 28mOhm Max | - | 9.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 8080 | 0.339" L x 0.319" W (8.60mm x 8.10mm) | 0.315" (8.00mm) |
|
|
XAL8080-153MEDFIXED IND 15UH 9.4A 22.5MOHM SM |
1,578 |
|
Datasheet | XAL8080 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 9.4 A | 7.7A | Shielded | 22.5mOhm Max | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 8080 | 0.339" L x 0.319" W (8.60mm x 8.10mm) | 0.315" (8.00mm) |
|
|
XAL8080-333MEDFIXED IND 33UH 6A 48.5MOHM SM |
1,362 |
|
Datasheet | XAL8080 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 6 A | 5A | Shielded | 48.5mOhm Max | - | 6.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 8080 | 0.339" L x 0.319" W (8.60mm x 8.10mm) | 0.315" (8.00mm) |
|
|
XAL8080-123MEDFIXED IND 12UH 10.5A 18.2MOHM SM |
1,222 |
|
Datasheet | XAL8080 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 12 µH | ±20% | 10.5 A | 8.6A | Shielded | 18.2mOhm Max | - | 11.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 8080 | 0.339" L x 0.319" W (8.60mm x 8.10mm) | 0.315" (8.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
