Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA65A-25156R8LFFIXED IND 6.8UH 2.6 MOHM SMD |
135 |
|
Datasheet | HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 6.8 µH | ±10% | - | 46A | Unshielded | 2.6mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|
LGJ12565TS-4R2N5R5-HFIXED IND 4.2UH 5.5A 11.2MOHM SM |
485 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.2 µH | ±30% | 5.5 A | 7.3A | Shielded | 11.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-152MR37-HFIXED IND 1.5MH 400MA 2.8OHM SMD |
481 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 400 mA | 370mA | Shielded | 2.8Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-102MR45-HFIXED IND 1MH 500MA 1.68 OHM SMD |
465 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 500 mA | 450mA | Shielded | 1.68Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-331MR87-HFIXED IND 330UH 950MA 494MOHM SM |
462 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 950 mA | 870mA | Shielded | 494mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-220M3R5-HFIXED IND 22UH 3.8A 31.6MOHM SMD |
353 |
|
Datasheet | LGJ | Nonstandard | Cut Tape (CT) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.8 A | 3.5A | Shielded | 31.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-470M2R4-HFIXED IND 47UH 2.8A 57.8MOHM SMD |
289 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.8 A | 2.4A | Shielded | 57.8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-471MR70-HFIXED IND 470UH 750MA 770MOHM SM |
269 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 750 mA | 700mA | Shielded | 770mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-100M4R8-HFIXED IND 10UH 4.8A 20.2MOHM SMD |
252 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.8 A | 5A | Shielded | 20.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-221M1R0-HFIXED IND 220UH 1.2A 273MOHM SMD |
199 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 1A | Shielded | 273mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-680M2R0-HFIXED IND 68UH 2.4A 78.7MOHM SMD |
197 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.4 A | 2A | Shielded | 78.7mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-330M2R8-HFIXED IND 33UH 3.4A 40.6MOHM SMD |
164 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 2.8A | Shielded | 40.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-2R0N6R2-HFIXED IND 2UH 6.2A 8 MOHM SMD |
148 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 6.2 A | 10A | Shielded | 8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
IH03BQ270KFIXED IND 27UH 7A 35 MOHM TH |
144 |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 7 A | 12A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.800" Dia x 0.875" L (20.32mm x 22.23mm) | - |
|
|
IH03EB500KFIXED IND 50UH 5.6A 50 MOHM TH |
146 |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 5.6 A | 8A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.800" Dia x 0.875" L (20.32mm x 22.23mm) | - |
|
4554-390KFIXED IND 39UH 1.4A 160 MOHM TH |
445 |
|
Datasheet | 4554 | Radial, Vertical Cylinder | Bulk | Last Time Buy | - | Ferrite | 39 µH | ±10% | 1.4 A | - | Unshielded | 160mOhm Max | 30 @ 2.52MHz | 6.9MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
1641R-824KFIXED IND 820UH 80MA 13 OHM TH |
210 |
|
Datasheet | 1641R | Axial | Bulk | Active | Molded | Ferrite | 820 µH | ±10% | 80 mA | 45mA | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
VLM13580T-2R2M-D1FIXED IND 2.2UH 10.5A 3.9MOHM SM |
800 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 10.5 A | 20A | Shielded | 3.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
|

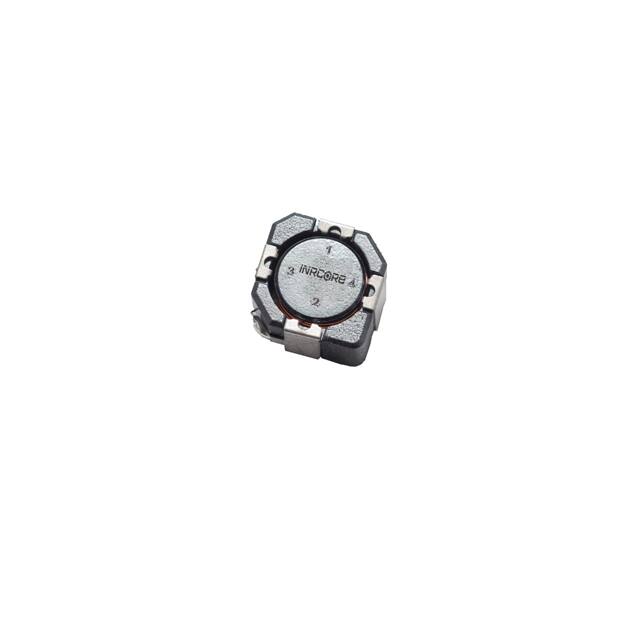

PL8909TFIXED IND 12UH 4.5A 29 MOHM SMD |
400 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4.5 A | 5.1A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
CTRL5480F-5-274K27000UH RADIAL FIXED INDUCTR |
287 |
|
Datasheet | CTRL5480F-5 | Radial, Vertical Cylinder | Bulk | Active | - | - | 270 mH | ±10% | 60 mA | 39mA | Unshielded | 174Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.626" Dia (15.90mm) | 0.701" (17.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
